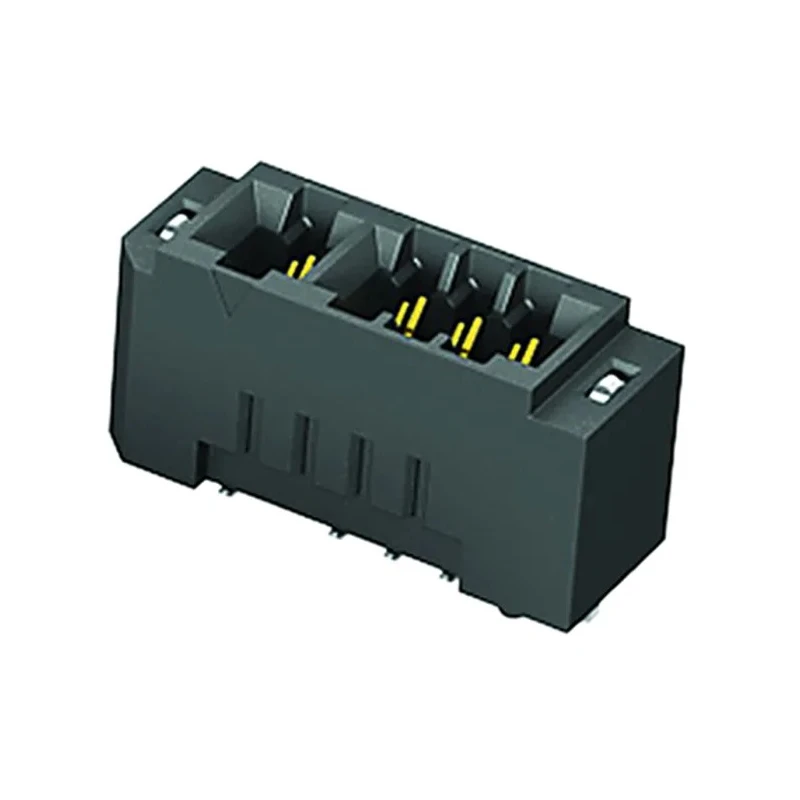

Samtec MEC2 Series 2.00mm Pitch Straight Edge Connector Female, Surface Mount, 10 Contacts, 2 Row, Solder Termination
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 238V ac |
| Brand | Samtec |
| Orientation | Straight |
| Current | 3.5A |
| Model | MEC2 |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Beryllium Copper Alloy |
| Series | MEC2 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2mm |
| Contact Plating | Gold over Nickel, Tin over Nickel |
| Number of Contacts | 10 |
| Contact Gender | Female |
| Connector Gender | Female |
| Card Type | Edge |
| Card Thickness | 1.6mm |
Key Features
- The connector features gold over nickel and tin over nickel contact plating for reliable conductivity.
- Beryllium copper alloy contact material ensures excellent electrical performance.
- Supports currents up to 3.5A and voltages up to 238V AC.
- Operates reliably within a temperature range of -55°C to 125°C.
- Suitable for 1.6mm card thickness with keying for proper mating alignment.
- Constructed with a liquid crystal polymer housing for durability and insulation.
- The micro edge card socket design supports high-speed data transfer up to 28+ Gbps.
- Surface mount type with solder termination ensures secure PCB attachment.
Product Description
Samtec MEC2-05-01-L-DV-WT is a high-quality edge connector female featuring a 2.00mm pitch and surface mount design ideal for electronic and industrial applications. This connector offers 10 contacts in a double row configuration, constructed with beryllium copper alloy contacts plated with gold over nickel and tin over nickel to ensure excellent electrical conductivity and corrosion resistance.
Its liquid crystal polymer housing provides mechanical strength and insulation while supporting card thicknesses of 1.6mm. The connector supports currents up to 3.5A and voltages up to 238V AC, allowing for reliable performance within temperature ranges from -55°C to 125°C, making it suitable for harsh environments.
The MEC2 series micro edge card sockets enable high-speed data transfer exceeding 28 Gbps, which is ideal for demanding signal integrity requirements in modern electronics. The straight orientation with solder termination offers secure PCB mounting with precision alignment provided through keying features.
Applications include industrial electronics, computing devices, communication systems, and other equipment requiring compact, reliable edge connectors for signal and power transmission.
The connector features gold over nickel and tin over nickel contact plating for reliable conductivity. Beryllium copper alloy contact material ensures excellent electrical performance. Supports currents up to 3.5A and voltages up to 238V AC.
Operates reliably within a temperature range of -55°C to 125°C. Suitable for 1.6mm card thickness with keying for proper mating alignment. Constructed with a liquid crystal polymer housing for durability and insulation. The micro edge card socket design supports high-speed data transfer up to 28+ Gbps.
Surface mount type with solder termination ensures secure PCB attachment. Compact double row layout optimizes PCB space usage and connection density. Ideal for industrial and electronic applications requiring edge connectors with high performance and stability.
Explore more Edge Connectors and Samtec products on EnvMart for your advanced electronic component requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector supports a maximum current of 3.5A and a maximum voltage of 238V AC.
It operates reliably within a temperature range of -55°C to 125°C.
This connector is suitable for a card thickness of 1.6mm.
The housing is made of liquid crystal polymer, and the contacts are constructed from beryllium copper alloy with gold over nickel and tin over nickel plating.
It features 10 contacts in a double row configuration.
The pitch size of this connector is 2.00mm.
This model uses solder termination for secure PCB attachment.
The connector has a straight orientation.
It is suitable for industrial electronics, computing devices, communication systems, and other equipment requiring reliable edge connectors for signal and power transmission.
The connector includes keying features that ensure proper mating alignment.
This model supports high-speed data transfer exceeding 28 Gbps.
The connector is manufactured in India.
