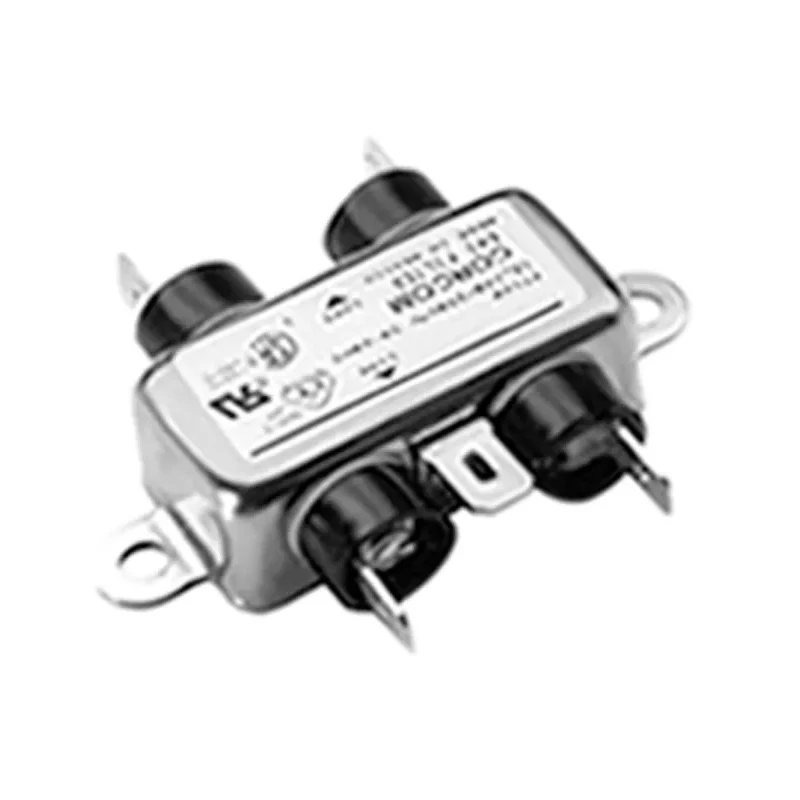

TE Connectivity Corcom B 5A 250V AC 50Hz 60Hz Flange RFI Filter Fast-On 1 Phase 6609020-7
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 64.3mm |
| Length | 57.2mm |
| Depth | 16.8mm |
| Mount Type | Flange |
| Operating Frequency | 50, 60Hz |
| Series | Corcom B |
| Maximum Operating Temperature | 40°C |
| Number Of Stages | 1 |
| Capacitance | 100nF |
| Minimum Operating Temperature | -10°C |
| Maximum Current | 5A |
| Number of Phases | 1 |
| Leakage Current | 700μA |
| Maximum Voltage | 250V ac |
| Inductance | 516μH |
| Standards/Approvals | UL1283 |
| Termination Style | Fast-On |
Key Features
- Features flange mounting for secure installation.
- Utilizes Fast-On termination style for easy connection.
- Single-phase filter with one stage for EMI suppression.
- Capacitance rating of 100nF supports reliable noise filtering.
- Operates reliably between -10°C and 40°C ambient temperature range.
- Inductance of 516μH enhances effective RFI attenuation.
- Low leakage current of 700μA makes it suitable for sensitive equipment.
- Compact dimensions with height 64.3mm, depth 16.8mm, and length 57.2mm.
Product Description
TE Connectivity 6609020-7 Corcom B Series RFI Filter offers a compact and economical solution for electromagnetic interference (EMI) suppression in single-phase electrical systems. Rated for a maximum current of 5A and voltage up to 250 volts AC, this flange-mounted filter provides effective noise reduction across 50Hz and 60Hz operating frequencies.
Designed for low-current, high-impedance loads, the Corcom B Series filters are widely recognized for their resilience and reliability in meeting international EMI standards. The 100nF capacitance and 516μH inductance work together to suppress radio frequency interference effectively, while the low leakage current of 700μA ensures safety and suitability for medical and portable equipment.
With a termination style of Fast-On for convenient wiring, this filter measures 64.3mm in height, 16.8mm in depth, and 57.2mm in length, allowing seamless integration into compact equipment designs. The product adheres to UL1283 certification requirements, guaranteeing compliance with stringent safety and performance standards.
The Corcom B 6609020-7 filter is ideal for industrial, commercial, and residential applications including HVAC systems, battery chargers, exercise equipment, home appliances, television, audio, video devices, and computing accessories. Its robust construction and electrical characteristics make it a trusted choice for EMI noise reduction.
Flange mounting provides secure attachment for diverse equipment installations. Fast-On termination ensures rapid and stable electrical connections. Low leakage current enhances compatibility with sensitive medical and portable devices.
Designed for single-phase, low current EMI suppression with one-stage filtering. Certified to UL1283 standard for safety and performance. Compact size facilitates versatile integration into electrical systems. Capacitance and inductance tuned for effective noise attenuation.
Operating temperature range of -10°C to 40°C suits typical environments. Suitable for a wide variety of industrial and consumer electronic applications. Explore the extensive range of TE Connectivity filters available at EnvMart for reliable EMI noise management and protection of electronic systems.
Explore more products in our Power Line Filters category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This RFI filter has a maximum current rating of 5A.
It is rated for a maximum voltage of 250V AC.
This filter operates at both 50Hz and 60Hz frequencies.
The capacitance rating of this model is 100nF, which supports effective noise filtering.
This filter measures 64.3mm in height, 57.2mm in length, and 16.8mm in depth.
The leakage current for this filter is 700μA, making it suitable for sensitive equipment.
It operates reliably within an ambient temperature range of -10°C to 40°C.
This model features flange mounting for secure installation.
The inductance of this unit is 516μH, which enhances effective RFI attenuation.
This product is certified to UL1283 standards for safety and performance.
It utilizes a Fast-On termination style for easy and secure connections.
This filter is suitable for various applications including HVAC systems, battery chargers, and home appliances.
