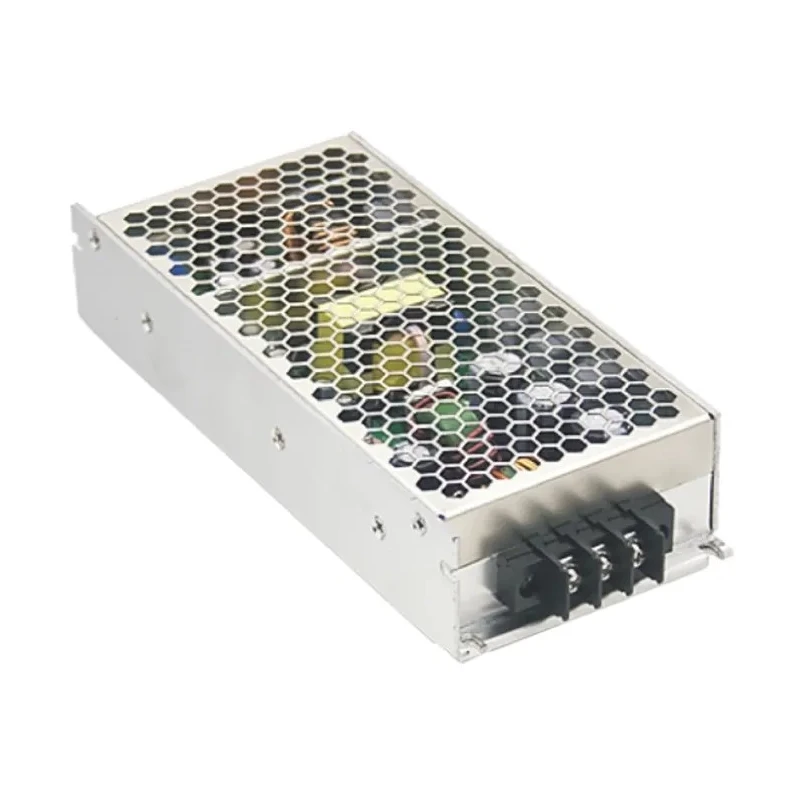

MEAN WELL 200W Railway Certified Regulated Isolated DC-DC Converter, 24V DC Output, 67.2-110V DC Input, Chassis RSD-200D-24
Specifications
| Country of Origin | India |
|---|---|
| Voltage | Converters / DC-DC Converters MEAN WELL RSD 200 DC/DC Converter, 24V dc/, 110V d |
| Brand | MEAN WELL |
| Efficiency | 91% |
| Length | 191mm |
| Model | RSD-200D-24 |
| Depth | 40mm |
| Gross Weight | 940g |
| Width | 40mm |
| Mount Type | Chassis |
| Series | RSD 200 |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -40°C |
| MTBF | 218200h |
| Number of outputs | 1 |
| Ripple and Noise | 150mV Pk-Pk |
| Maximum Output Power | 201.6W |
| Maximum Input Voltage | 110V dc |
| Standards/Approvals | EN/IEC |
| Minimum Input Voltage | 67.2V |
| Output Voltage 1 | 24V dc |
| Output Current 1 | 8.4A |
| Isolation Voltage | 4kV dc |
| Input Ratio | 2:1 |
| Input Ratio 2 | 1 |
Key Features
- Offers a regulated, isolated DC-DC conversion with 200W power capacity.
- Single output of 24V DC delivering up to 8.4 A current.
- Chassis mount type with compact dimensions of 191mm x 40mm x 40mm.
- High reliability with MTBF of 218,200 hours and complies with EN50155 for railway standards.
- Built-in protections against short circuit, overload, over voltage, and over temperature.
- Efficient convection cooling without requiring fans.
- LED indication for power status and use of 105°C long life electrolytic capacitors.
- Designed for industrial and railway vehicle power conversion applications.
Product Description
MEAN WELL RSD-200D-24 is a 200W single output DC-DC converter designed for railway and industrial applications, providing a stabilized 24V DC output from a wide input DC voltage range of 67.2 to 110V. This chassis mount module features a compact low profile (39mm height) suitable for tight spaces.
These converters are certified to meet railway standards including EN50155, IEC60571, IEC61373, and EN50121-3-2, making them suitable for vehicles equipped with DC power sources. The robust circuit design offers high efficiency of up to 91%, ensuring minimal energy loss and good thermal performance.
Protection features include short circuit, overload, over voltage, and thermal shutdown to ensure reliability under harsh conditions. The semi-encapsulated design improves PCB protection, and the unit is capable of free air convection cooling, eliminating the need for a cooling fan.
Additional features include a built-in constant current limiting circuit, usage of long-life 105°C electrolytic capacitors, and LED indicators for power-on status. The insulation withstands 4000VDC isolation voltage, providing safety and noise immunity in sensitive electronics environments.
This DC-DC converter is ideal for industrial automation, railway systems, control cabinets, instrumentation power supply, and other environments requiring steady DC voltage conversion under strict regulatory standards.
Regulated isolated DC-DC conversion with wide 2:1 input ratio. Compliance with railway certifications EN50155, IEC60571, IEC61373, and EN50121-3-2. High efficiency of 91% ensures energy saving and less heat generation. Robust protection including short circuit, overload, over voltage, and over temperature shutdown.
Compact chassis mount design with aluminium housing for heat dissipation. MTBF of 218,200 hours indicates high reliability and longevity. Input isolation voltage rated at 4000VDC for noise immunity. Use of high-quality 105°C electrolytic capacitors for durability.
LED indicators for easy operational monitoring.
Explore more MEAN WELL power supply and DC-DC Converter solutions to find components suitable for your industrial, laboratory, railway, and commercial electronic power conversion needs. EnvMart offers a broad selection of certified power modules built to meet stringent performance and safety standards.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output power of this model is 201.6W.
It accepts a wide input voltage range from 67.2V to 110V DC.
This converter provides a single output of 24V DC with a maximum current of 8.4A.
The efficiency of this model is up to 91%, ensuring minimal energy loss.
The dimensions are 191mm in length, 40mm in width, and 40mm in depth.
It operates within a temperature range of -40°C to 70°C.
It includes protections against short circuit, overload, over voltage, and over temperature.
Yes, it complies with EN50155, IEC60571, IEC61373, and EN50121-3-2 railway standards.
The insulation withstands an isolation voltage of 4000V DC.
It utilizes efficient convection cooling without requiring fans, thanks to its semi-encapsulated design.
The MTBF for this converter is 218,200 hours, indicating high reliability.
This model is designed for chassis mounting, suitable for compact spaces.
