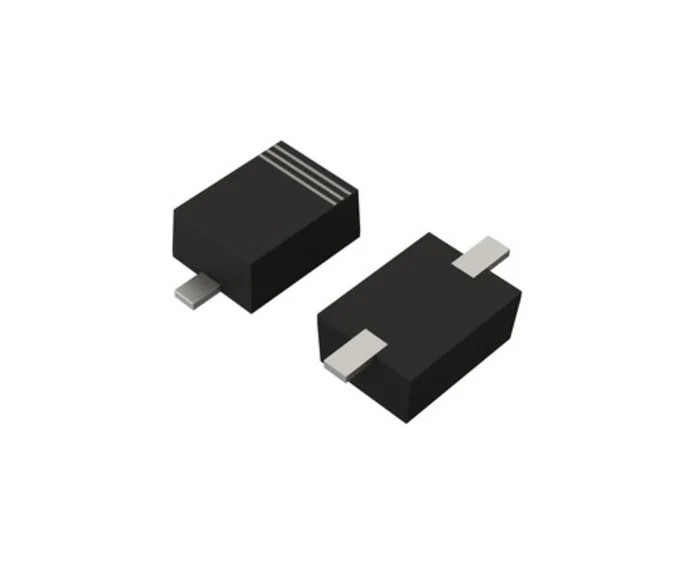

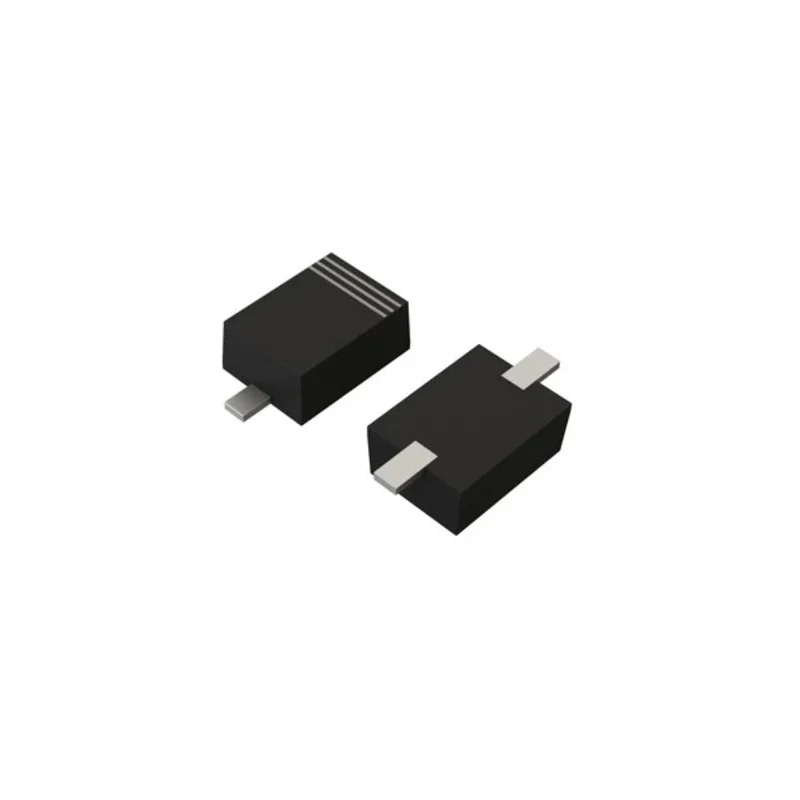

ROHM Zener Diode 16.5 V Isolated 200 mW Surface Mount 2-Pin SOD-323FL UDZVFHTE-1716B

Name: ROHM Zener Diode 16.5 V Isolated 200 mW Surface Mount 2-Pin SOD-323FL UDZVFHTE-1716B
Brand: ROHM
SKU: 110342
Price: 0.07 USD
Availability: InStock



Category Zener Diode Brand ROHM Condition New

Specifications

Country of Origin	India
Brand	ROHM
Height	0.9mm
Length	2.7mm
Model	UDZVFHTE-1716B
Mount Type	Surface
Series	UDZVFH
Maximum Operating Temperature	150°C
Package Type	SOD-323FL
Pin Count	2
Number of Elements per Chip	1
Automotive Standard	AEC-Q101
Maximum Power Dissipation Pd	200mW
Diode Configuration	Isolated
Test Current It	5mA
Maximum Reverse Leakage Current	100nA
Nominal Zener Voltage Vz	16.5V
Zener Type	Voltage Regulator
Maximum Zener Impedance	80Ω

Key Features

This zener diode features a nominal voltage of 16.5 V and a power dissipation capacity of 200 mW.
It comes as a surface mount type with a small SOD-323FL package and 2 pins for easy PCB integration.
High reliability ensured by a silicon epitaxial planar structure suitable for voltage regulation applications.
Maximum operating temperature of 150°C allows for robust industrial and electronic usages.
Test current rating of 5 mA and a maximum zener impedance of 80 Ω ensure stable voltage regulation.
Certified to automotive standard AEC-Q101, suitable for automotive electronic applications.
Maximum reverse leakage current is kept minimal at 100 nA for enhanced efficiency.

Product Description

ROHM UDZVFHTE-1716B is a high-quality Zener Diode designed for precise voltage regulation in electronic circuits. It offers a nominal zener voltage of 16.5 V and supports a maximum power dissipation of 200 mW. This component features an isolated diode configuration with a silicon epitaxial planar structure, ensuring durability and high reliability in various installations.

The diode's compact SOD-323FL surface mount package with 2 pins facilitates straightforward mounting on printed circuit boards (PCB). It is engineered to operate efficiently up to a maximum temperature of 150°C, making it suitable for demanding industrial, automotive, and commercial electronic use cases.

The device maintains low leakage current (100 nA max) and a maximum zener impedance of 80 Ω, allowing for consistent voltage stabilization at the rated test current of 5 mA. It complies with the automotive standard AEC-Q101, underscoring its suitability for vehicle electronics and other robust applications.

This diode serves voltage regulation needs in industrial, automotive, and electronic manufacturing sectors. Its surface mount design and small form factor optimize space utilization in high-density PCBs. Ideal for use in power supply circuits, electronic protection systems, and signal conditioning installations.

Reliable operation under high temperature and various electrical conditions ensures circuit stability. Package dimensions: Length 2.7 mm, Height 0.9 mm enable compact and efficient product designs. Set standards in semiconductor electronics for applications requiring precise voltage regulation.
