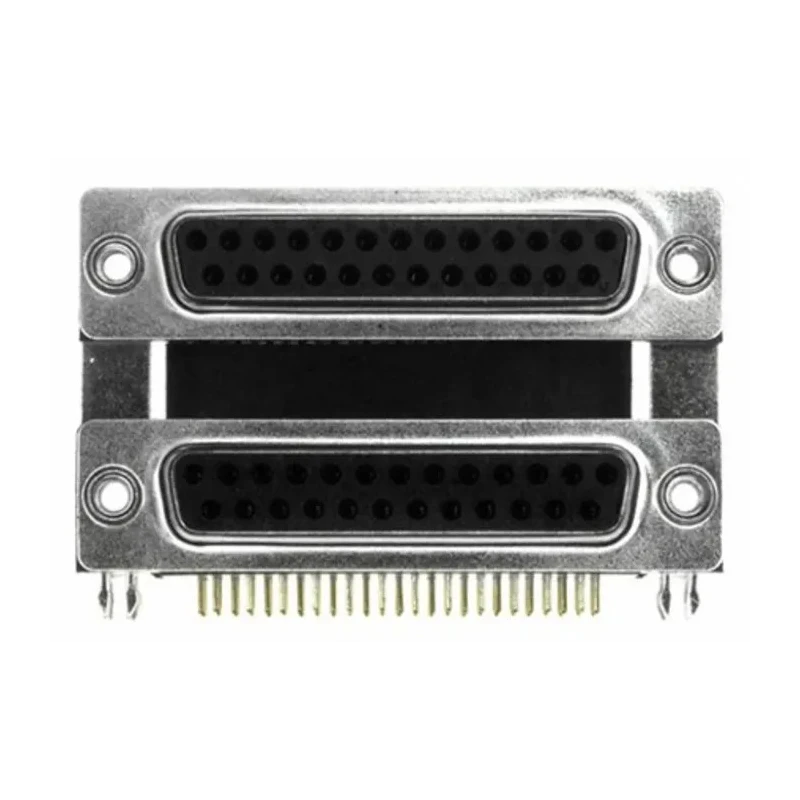

Norcomp Right Angle 25 Contacts 2.769 mm Pitch PCB D-Sub Connector with 4 to 40 Insert 189-025-513R571

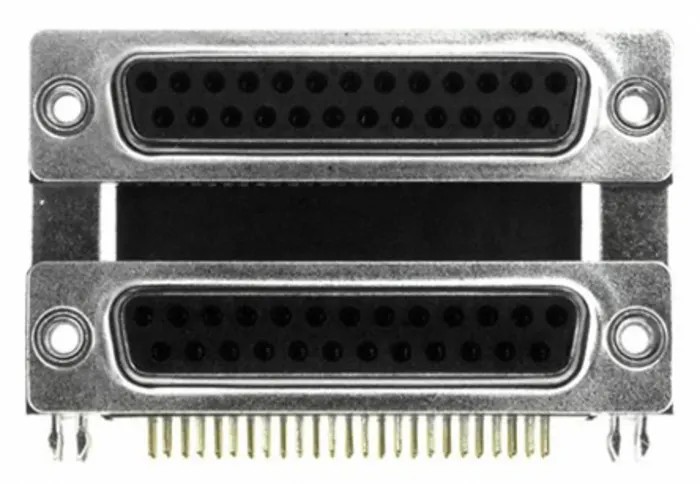

Norcomp 189-025-513R571 is a right angle PCB mount 25-contact D-Sub Connector series designed to maximize available PCB space in compact electronic assemblies. The connector consists of dual stacked ports integrating 25 female contacts at pitch 2.769 mm, ensuring high density and efficient board layout.

Constructed with a nickel plated steel shell, this connector provides excellent electromagnetic shielding and grounding capability through ground indents and secure boardlocks. The brass contacts are gold plated, offering superior electrical performance and corrosion resistance.

Mounting hardware uses 4 to 40 inserts, providing reliable fixation on printed circuit boards. Designed for solder termination, these connectors fit standard assembly processes with high mechanical and electrical robustness. Voltage rating of 1kV and current capacity of 5A meet industrial and commercial electronics requirements.

The connector withstands operating temperatures from -55°C to 105°C, suitable for demanding environmental conditions. The UL94V-0 high temperature thermoplastic insulator complies with flame retardancy standards, further ensuring safety and performance reliability.

This Norcomp 189 series connector is recommended for industrial, laboratory, manufacturing, and electronic communications equipment where multiple connector ports are needed within constrained PCB real estate.

This connector provides dual port design to save PCB space. Gold-plated stamped brass contacts deliver high conductivity. Nickel plated steel shell offers improved shielding and grounding. Thermoplastic insulator supports high temperature soldering processes.

Mounting hardware options enhance PCB retention stability. Right angle orientation facilitates compact board layouts. Explore more connectors and electronic components in EnvMart's extensive catalog to find suitable solutions for your manufacturing and design needs.
