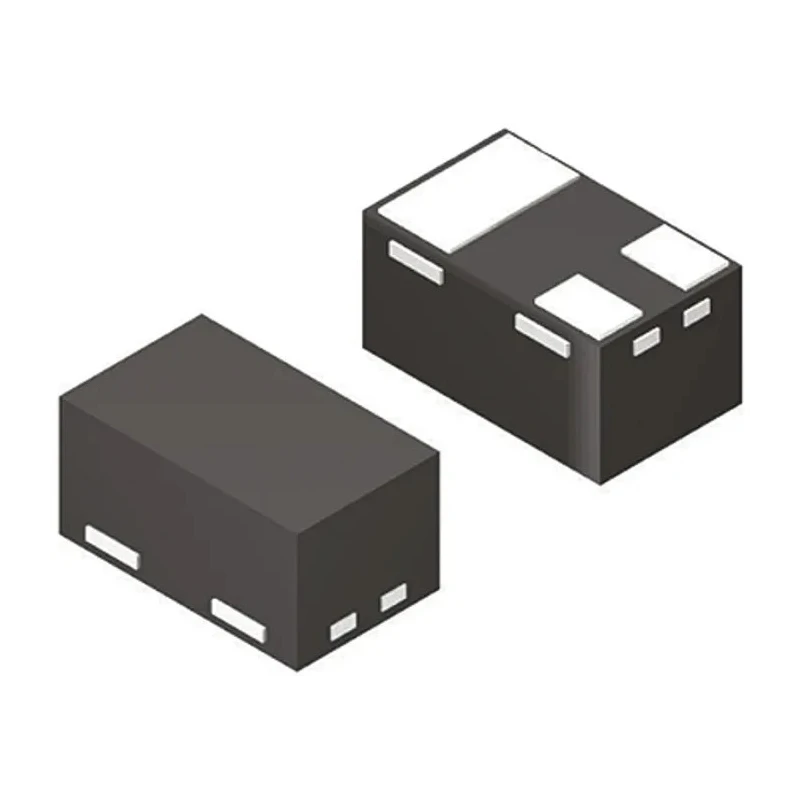

DiodesZetex 40 V 1 A General Purpose Schottky Barrier Diode Surface Mount DFN Package SBR1U40LP-7
Specifications
| Country of Origin | India |
|---|---|
| Brand | DiodesZetex |
| Height | 0.48mm |
| Length | 1.48mm |
| Model | SBR1U40LP-7 |
| Width | 1.18mm |
| Mount Type | Surface |
| Series | 1A SBR |
| Maximum Operating Temperature | 150°C |
| Package Type | DFN |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | FBI |
| Pin Count | 3 |
| Automotive Standard | AEC |
| Maximum Continuous Forward Current If | 1A |
| Peak Reverse Repetitive Voltage Vrrm | 40V |
| Diode Configuration | Single |
| Rectifier Type | General Purpose |
| Peak Reverse Current Ir | 50μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 5A |
| Maximum Forward Voltage Vf | 490mV |
Key Features
- The diode features a maximum continuous forward current of 1 ampere.
- It possesses a peak reverse repetitive voltage of 40 volts.
- The device has a low maximum forward voltage of 490 millivolts.
- Peak non-repetitive forward surge current is rated at 5 amperes.
- Operating temperature ranges from -65°C to 150°C for reliable performance.
- The diode comes in a compact 1.48 mm length, 1.18 mm width, and 0.48 mm height DFN package.
- It supports general purpose rectification with fast response characteristics.
- Pin count is 3, allowing easy PCB integration in surface mount applications.
Product Description
DiodesZetex SBR1U40LP-7 is a high-performance general purpose Schottky Barrier Diode designed for surface mount applications requiring efficient rectification and low forward voltage drop. This diode supports continuous forward current up to 1 ampere and has a peak reverse repetitive voltage rating of 40 volts, making it suitable for a variety of industrial, automotive, and electronic equipment uses.
The device is housed in a compact DFN package with dimensions of 1.48 mm length, 1.18 mm width, and 0.48 mm height, facilitating space-saving PCB layouts and easy assembly in automated production lines. It features a maximum forward voltage of 490 millivolts, which reduces power loss and heat generation during operation. Additionally, its peak non-repetitive surge current capacity of 5 amperes ensures robustness against transient surges.
Operating temperature ranges from -65°C to 150°C, enabling reliable function in harsh and variable environments, including automotive and industrial sectors. This diode is AEC automotive standard certified, underscoring its quality and reliability for demanding applications.
The diode supports efficient switching and rectification with a single diode configuration. Low peak reverse current of 50 microamperes minimizes leakage and enhances efficiency. The package and mounting type are optimized for surface mount manufacturing processes.
General purpose series 1A SBR rectifier suitable for broad applications. Pin count of 3 for easy integration in electronic circuits.
These features make the SBR1U40LP-7 ideal for power supplies, automotive electronics, DC/DC converters, and general industrial equipment requiring durable and efficient diode solutions. Its small form factor and superior thermal performance contribute to enhanced product design and performance.
Discover more components and design resources at EnvMart to support your industrial and engineering needs.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for this model is 1 ampere.
It has a peak reverse repetitive voltage rating of 40 volts.
The DFN package dimensions are 1.48 mm in length, 1.18 mm in width, and 0.48 mm in height.
The maximum forward voltage of the SBR1U40LP-7 is 490 millivolts.
The peak non-repetitive forward surge current is rated at 5 amperes.
The operating temperature range is from -65°C to 150°C.
This model has a pin count of 3, allowing for easy integration in electronic circuits.
It is a general purpose Schottky barrier rectifier.
The peak reverse current is specified at 50 microamperes.
Yes, it is AEC automotive standard certified, making it suitable for automotive applications.
The diode is designed for surface mount applications.
It is suitable for power supplies, automotive electronics, DC/DC converters, and general industrial equipment.
