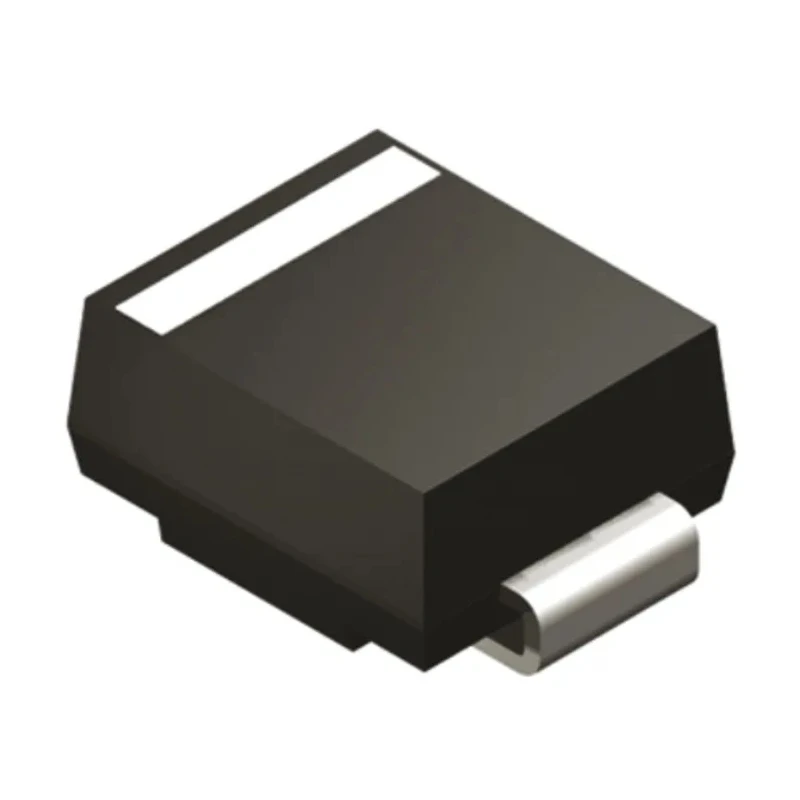

Vishay 1-Element Uni-Directional TVS Diode 600 W, 2-Pin DO-214 SMBJ16A-E3/52
Specifications
| Country of Origin | China |
|---|---|
| Brand | Vishay |
| Height | 2.24mm |
| Length | 4.57mm |
| Model | SMBJ16A-E3/52 |
| Width | 3.94mm |
| Mount Type | Surface |
| Series | TRANSZORB TVS |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 26V |
| Automotive Standard | AEC-Q101 |
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 17.8V |
| Maximum Reverse Stand-off Voltage Vwm | 16V |
| Peak Pulse Power Dissipation Pppm | 600W |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 23.1A |
| Maximum Reverse Leakage Current | 1μA |
Key Features
- Uni-directional diode configuration suitable for transient voltage suppression.
- Minimum breakdown voltage of 17.8 V ensures robust protection.
- Compact DO-214 package measures 4.57 mm length by 3.94 mm width.
- Operates efficiently between -55°C to 150°C temperature range.
- High peak pulse current rating of 23.1 A for transient events.
- Features AEC-Q101 automotive qualification for reliability.
- Low incremental surge resistance and fast response time.
- Glass passivated chip junction enhances durability.
Product Description
Vishay SMBJ16A-E3/52 is a single-element, uni-directional TVS diode designed to provide effective protection against transient voltage spikes in sensitive electronic circuits. It offers a peak pulse power dissipation of 600 W and comes in a standard surface mount DO-214 package, ideal for automated PCB assembly.
This TVS diode has a minimum breakdown voltage of 17.8 V and a maximum reverse stand-off voltage of 16 V, making it highly suitable for clamping voltage surges to a maximum of 26 V. The device supports a peak pulse current rating of 23.1 A and features very low incremental surge resistance, contributing to excellent clamping performance.
The operating temperature range is broad, from -55°C to 150°C, suitable for a wide variety of industrial, automotive, consumer, and telecommunications applications. The diode’s compact dimensions (4.57 mm length, 3.94 mm width, 2.24 mm height) make it well suited for space-constrained designs.
Built with a glass passivated chip junction and compliance with AEC-Q101 automotive standards, it ensures high reliability and longevity in demanding environments. It meets moisture sensitivity level 1 (MSL1) according to J-STD-020 with a peak solder temperature of 260°C, allowing for robust lead-free soldering processes.
Uni-directional transient voltage suppression capabilities. 600 W peak pulse power with repetitive rate of 0.01% duty cycle. Fast response time to voltage surges. Low leakage current at 1 μA and maximum peak current of 23.1 A.
Ideal protection for ICs, MOSFETs, sensor signal lines in consumer, industrial, and telecommunication devices.
This TVS diode from Vishay is an excellent choice for engineers seeking highly efficient transient voltage protection in compact surface mount packages for electronic and automotive circuits.
Explore more TVS Diodes and semiconductor components in the Electronics & Electricals category at EnvMart for your industrial and manufacturing needs.
