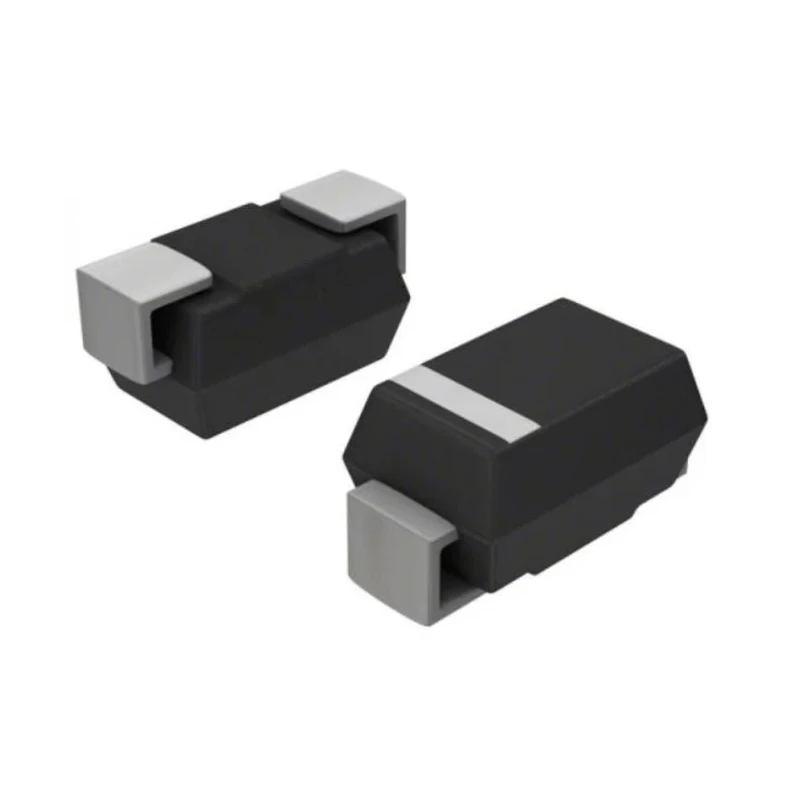

Vishay 1-Element Uni-Directional TVS Diode 1.5 kW Surface Mount SMC Package SMCJ30A-E3/57T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 2.42mm |
| Length | 7.11mm |
| Model | SMCJ30A-E3/57T |
| Width | 6.22mm |
| Mount Type | Surface |
| Series | TRANSZORB TVS |
| Maximum Operating Temperature | 150°C |
| Package Type | SMC |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 48.4V |
| Automotive Standard | AEC-Q101 |
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 33.3V |
| Maximum Reverse Stand-off Voltage Vwm | 30V |
| Peak Pulse Power Dissipation Pppm | 1.5kW |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 31A |
| Maximum Reverse Leakage Current | 1μA |
| SMCJ30A transient suppressor,30V 1500WBrand | Vishay |
Key Features
- Single diode configuration providing reliable uni-directional protection.
- Rated for a peak pulse power dissipation of 1.5 kW ensuring robust surge handling capability.
- Maximum reverse stand-off voltage of 30 V and breakdown voltage of 33.3 V.
- Compact surface mount SMC package with dimensions 7.11 mm length, 6.22 mm width, and 2.42 mm height.
- Wide operating temperature range from -55°C to 150°C suitable for industrial applications.
- Complies with automotive standard AEC-Q101 for enhanced reliability in automotive environments.
- Maximum peak pulse current of 31 A with low leakage current of 1 μA.
Product Description
Vishay SMCJ30A-E3/57T is a high-performance 1-element uni-directional transient voltage suppressor (TVS) designed for protection of sensitive electronic circuits from transient voltage spikes and electrostatic discharge. Featuring a compact surface mount SMC package, this TVS diode delivers 1.5 kW peak pulse power dissipation with excellent clamping characteristics, making it ideal for industrial, automotive, and commercial electronic applications.
The device provides a minimum breakdown voltage of 33.3 V and can withstand maximum reverse stand-off voltage of 30 V. Its low reverse leakage current of 1 μA and high maximum peak pulse current rating of 31 A ensure effective transient suppression without affecting circuit performance. Operating reliably over a broad temperature range from -55°C to 150°C and meeting AEC-Q101 automotive standards, it is suitable for harsh environments requiring robust surge protection.
The SMC package dimensions measure 7.11 mm in length, 6.22 mm in width, and 2.42 mm in height, optimizing space on densely packed PCBs. This diode configuration offers single-element protection in a uni-directional design, simplifying implementation in various protection circuits.
Single diode configuration providing reliable uni-directional protection. Peak pulse power dissipation of 1.5 kW for high surge tolerance. Breakdown voltage of 33.3 V and maximum reverse stand-off voltage of 30 V. Compact SMC surface mount package measuring 7.11 mm x 6.22 mm x 2.42 mm.
Wide operating temperature range from -55°C to 150°C. Certified to AEC-Q101 automotive standard for high reliability. Low maximum reverse leakage current of 1 μA ensures minimal power loss. Maximum peak pulse current rating of 31 A for effective transient suppression.
This Vishay SMCJ30A-E3/57T TVS Diode is suitable for protecting electronic components in industrial machinery, automotive electronics, power supplies, and communications equipment. Its reliable transient voltage suppression capabilities enhance system durability and reduce downtime caused by voltage spikes.
Explore the full range of Vishay semiconductor components and advanced industrial electronics on EnvMart for high-quality and dependable electronic protection solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Vishay SMCJ30A-E3/57T TVS diode has a peak pulse power dissipation of 1.5 kW, ensuring robust surge handling capability.
This model has a maximum reverse stand-off voltage of 30 V, which helps protect sensitive circuits from voltage spikes.
The breakdown voltage of this TVS diode is 33.3 V, providing effective transient voltage suppression.
The SMC package of this diode measures 7.11 mm in length, 6.22 mm in width, and 2.42 mm in height, optimizing space on PCBs.
It operates reliably over a wide temperature range from -55°C to 150°C, making it suitable for industrial applications.
The maximum peak pulse current rating for this unit is 31 A, which allows for effective transient suppression.
The maximum reverse leakage current is 1 μA, which ensures minimal power loss during operation.
Yes, it complies with the AEC-Q101 automotive standard, enhancing its reliability in automotive environments.
This model features a single diode configuration, providing reliable uni-directional protection.
The clamping voltage (VC) for this unit is 48.4 V, which is crucial for protecting circuits from voltage spikes.
It uses a surface mount type, making it suitable for compact PCB designs.
This diode has a pin count of 2, which is standard for its configuration and application.
