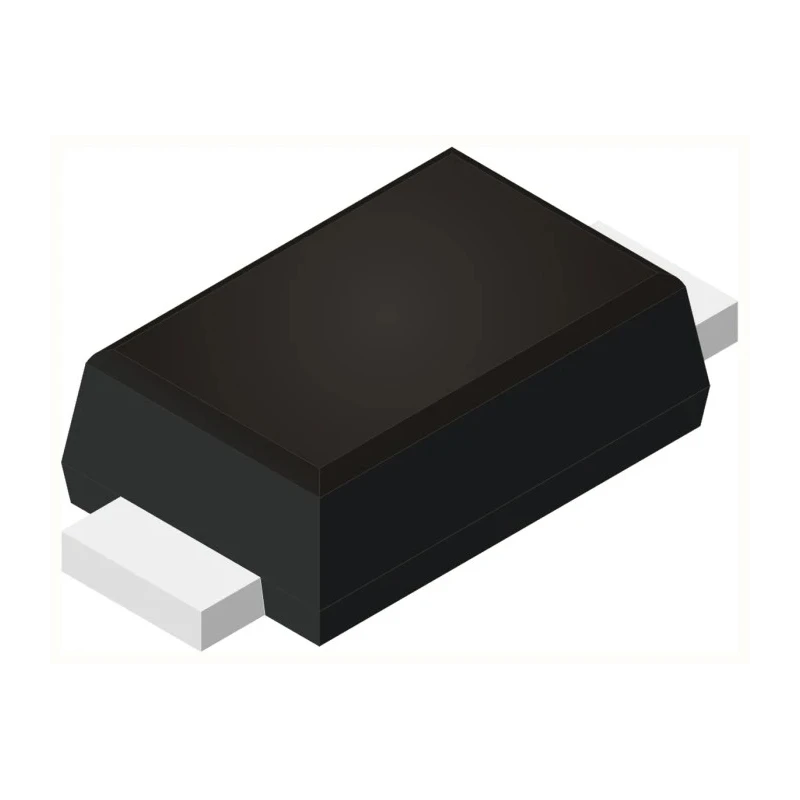

ROHM Surface Mount Single Schottky Diode 40 V 2 A 0.39 V Forward Voltage SOD-123FL RBS2MM40CTR
Specifications
| Country of Origin | India |
|---|---|
| Brand | ROHM |
| Height | 0.9mm |
| Length | 2.7mm |
| Model | RBS2MM40CTR |
| Width | 1.7mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 125°C |
| Package Type | SOD-123FL |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 2A |
| Peak Reverse Repetitive Voltage Vrrm | 40V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 600μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 45A |
| Maximum Forward Voltage Vf | 0.39V |
Key Features
- Designed for surface mount applications with a compact SOD-123FL package.
- Maximum continuous forward current of 2 amps ensures reliable performance.
- Low forward voltage drop of 0.39 volts enhances energy efficiency.
- Peak reverse repetitive voltage rated at 40 volts for robust operation.
- Peak forward surge current capability of 45 amps for short-duration fault tolerance.
- Maximum reverse leakage current of 600 microamperes minimizes power loss.
- Rated for operation up to 125 degrees Celsius ambient temperature.
- Complies with RoHS standards for environmental safety.
Product Description
ROHM RBS2MM40CTR is a Surface Mount Schottky Diode designed for high reliability and efficiency in compact electronic circuits. It features a maximum continuous forward current of 2 A and a peak reverse repetitive voltage of 40 V, making it ideal for power rectification and protection in industrial, electronic, and automotive semiconductor applications.
This diode comes in a small SOD-123FL package with dimensions of 2.7 mm length, 1.7 mm width, and 0.9 mm height, allowing space-saving PCB designs. The device offers a low forward voltage drop of 0.39 V, improving energy efficiency and reducing heat dissipation.
With a peak forward surge current (Ifsm) of 45 A and maximum reverse leakage current of just 600 μA, it ensures durability during transient conditions. The diode supports an operating temperature up to 125°C, suitable for harsh industrial environments.
ROHM RBS2MM40CTR complies with RoHS standards, affirming its environmental friendly design. Its small power mold type (PMDU) construction provides high reliability and performance stability.
Typical applications include power supplies, switching regulators, freewheeling diodes, and protection circuits in industrial, electronic components, semiconductor, and power supply contexts.
Designed for surface mount applications with a compact SOD-123FL package. Maximum continuous forward current of 2 amps ensures reliable performance. Low forward voltage drop of 0.39 volts enhances energy efficiency. Peak reverse repetitive voltage rated at 40 volts for robust operation.
Peak forward surge current capability of 45 amps for short-duration fault tolerance. Maximum reverse leakage current of 600 microamperes minimizes power loss. Rated for operation up to 125 degrees Celsius ambient temperature.
Complies with RoHS standards for environmental safety. Compact dimensions: 2.7 mm length, 1.7 mm width, and 0.9 mm height. High reliability with small power mold type construction (PMDU) suitable for industrial and electronic applications.
Explore more semiconductor and diode components to suit your industrial and electronic manufacturing needs at EnvMart.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this model is 2 A.
The peak reverse repetitive voltage is rated at 40 V.
The dimensions of the SOD-123FL package are 2.7 mm in length, 1.7 mm in width, and 0.9 mm in height.
The forward voltage drop is 0.39 V, which enhances energy efficiency.
It has a peak forward surge current capability of 45 A.
The maximum reverse leakage current is 600 μA.
This diode is rated for operation up to 125°C ambient temperature.
It complies with RoHS standards for environmental safety.
This model features a single diode configuration.
Typical applications include power supplies, switching regulators, freewheeling diodes, and protection circuits in various electronic contexts.
This diode is designed for surface mount applications.
It features a small power mold type (PMDU) construction, providing high reliability and performance stability.
