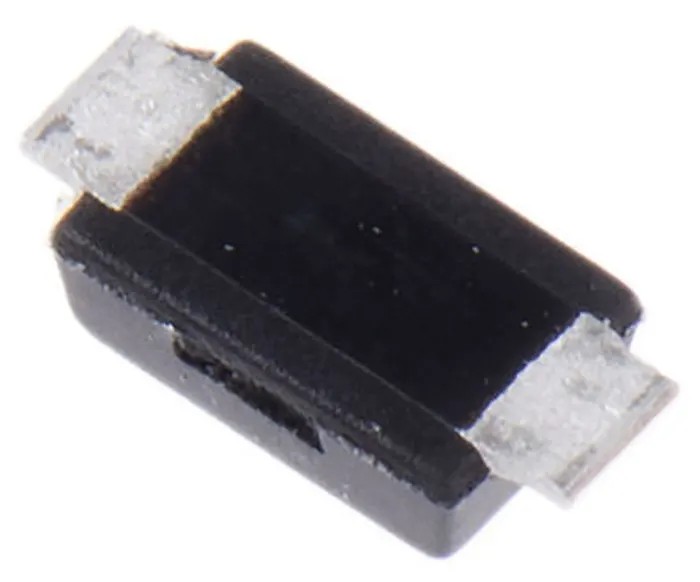

ROHM Schottky Diode 60 V 2 A Surface Mount SOD-123 RB068MM-60TR
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 1.55mm |
| Brand | ROHM |
| Height | 0.8mm |
| Length | 2.6mm |
| Model | RB068MM-60TR |
| Width | 1.6mm |
| Mount Type | Surface |
| Series | RB068MM |
| Maximum Operating Temperature | 150°C |
| Package Type | SOD-123 |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 2A |
| Peak Reverse Repetitive Voltage Vrrm | 60V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 1.5μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 40A |
| Maximum Forward Voltage Vf | 760mV |
Key Features
- 60 V maximum reverse voltage ensures protection in various applications.
- Continuous forward current rating of 2 A provides stable operation.
- Surface mount SOD-123 package allows for compact PCB designs.
- Low forward voltage drop of 760 mV improves power efficiency.
- Peak non-repetitive forward surge current of 40 A enhances reliability during transient events.
- Maximum reverse current of 1.5 μA supports low-leakage performance.
- High operating temperature tolerance up to 150°C for demanding environments.
Product Description
ROHM RB068MM-60TR, a high-performance Schottky diode, is engineered for reliable rectification and switching applications across industrial and electronic platforms. With a maximum reverse voltage of 60 V and a forward current rating of 2 A, it offers robust protection and stable performance in power supply circuitry, DC-DC converters, and signal processing modules.
60 V peak reverse repetitive voltage (Vrrm) for versatile circuit integration. 2 A maximum continuous forward current (If) enables efficient power handling. Single diode configuration within a compact SOD-123 surface mount package.
Schottky barrier rectifier technology reduces switching losses. Low forward voltage drop (760 mV) helps improve circuit energy efficiency. Peak surge current capability (40 A) withstands demanding transient conditions. Minimal reverse leakage current (1.5 μA) ensures minimal parasitic losses.
Operates reliably in environments up to 150°C for industrial durability. Dimensions: length 2.6 mm, width 1.6 mm, height 0.8 mm, diameter 1.55 mm. This diode is ideal for use in industrial automation, power conversion, renewable energy systems, and other applications demanding fast response and low-loss performance.
Easy surface mounting on PCBs with SOD-123 footprint helps achieve compact, high-density electronic assemblies. Its high-temperature endurance makes it suitable for automotive, HVAC, and machinery control systems where thermal reliability is crucial.
RB068MM-60TR supports rapid switching applications, thanks to Schottky barrier technology, which minimizes recovery time and enhances overall circuit efficiency. It is well-suited for laboratory prototypes, manufacturing lines, and commercial electronics production.
Explore more Schottky Diodes and semiconductor solutions from ROHM and other leading brands on EnvMart. Upgrade your circuit design with reliable, high-efficiency components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum reverse voltage of this model is 60 V, ensuring protection in various applications.
It has a continuous forward current rating of 2 A, providing stable operation for power handling.
This diode is housed in a surface mount SOD-123 package, allowing for compact PCB designs.
The forward voltage drop is 760 mV, which helps improve power efficiency in circuits.
The peak non-repetitive forward surge current is rated at 40 A, enhancing reliability during transient events.
The maximum reverse current is 1.5 μA, supporting low-leakage performance.
The dimensions are 2.6 mm in length, 1.6 mm in width, and 0.8 mm in height.
It can operate reliably in environments up to 150°C, making it suitable for demanding applications.
This model features a single diode configuration, appropriate for various circuit applications.
It is suitable for power supply circuitry, DC-DC converters, and signal processing modules.
It uses Schottky barrier rectifier technology, which reduces switching losses and improves efficiency.
This model has a pin count of 2, making it easy to integrate into various circuits.
