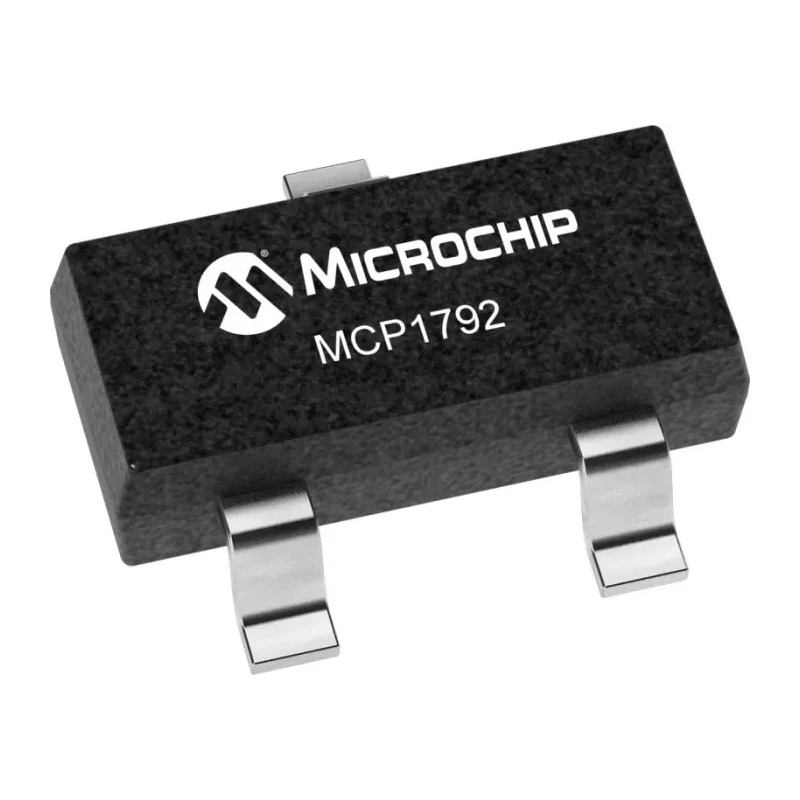

Microchip Voltage Regulator 16V SOT-23A 3-Pin MCP1792T-3302H/CB
Specifications
| Country of Origin | India |
|---|---|
| Voltage | Regulators Microchip MCP1792T-3302H/CB, Voltage Regulator 16V SOT-23A 3-Pin RS S |
| Brand | Microchip |
| Height | 1.45mm |
| Length | 2.9mm |
| Model | MCP1792T-3302H/CB |
| Width | 2.8mm |
| Mount Type | Surface |
| Series | MCP1792 |
| Maximum Operating Temperature | 125°C |
| Package Type | SOT-23A |
| Maximum Input Voltage | 16V |
| Quiescent Current | 25mA |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 3.6V |
| Pin Count | 3 |
| Automotive Standard | AEC-Q100 |
Key Features
- Operating input voltage ranges from 3.6V to 16V ensuring wide application.
- Surface mount SOT-23A package with 3 pins provides compact form factor.
- Low quiescent current of 25 mA improves energy efficiency.
- Supports maximum operating temperature up to 125°C suitable for harsh environments.
- Includes protection features like thermal shutdown and current fold back for device safety.
- Automotive standard AEC-Q100 compliance guarantees reliability in automotive systems.
- RoHS compliant ensuring environmental safety and regulatory compliance.
Product Description
Microchip MCP1792T-3302H/CB Voltage Regulator is a high-voltage, low dropout (LDO) regulator capable of delivering 100 mA output current. It operates efficiently within an input voltage range of 3.6 V to 16 V making it suitable for various electronic and automotive applications that require stable voltage regulation.
This device is housed in a compact SOT-23A surface mount package with 3 pins, offering easy PCB integration with minimal space consumption. Its low quiescent current of 25 mA enhances energy savings while maintaining excellent performance.
Designed to withstand temperatures up to 125°C, the MCP1792T-3302H/CB ensures reliability in demanding conditions including automotive environments, supported by its AEC-Q100 qualification. Protection mechanisms such as current fold back for short-circuit protection and thermal shutdown prevent device damage and extend operational life.
The regulator complies with RoHS standards, making it environmentally friendly and suitable for use in industrial, automotive, and consumer electronics applications requiring efficient voltage management.
Wide input voltage operation from 3.6 V to 16 V. Compact 3-pin SOT-23A package. 25 mA low quiescent current. Thermal shutdown and current fold back protection. Automotive AEC-Q100 compliant. High temperature operation up to 125°C.
RoHS compliant design. Dimensions: 2.9 mm (L) x 2.8 mm (W) x 1.45 mm (H).
This voltage regulator is ideal for use in industrial electronics, automotive systems, power management IC setups, and embedded systems requiring compact, efficient voltage stabilization. Explore other high-quality power management ICs and Voltage Regulators at EnvMart to meet your application needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This voltage regulator operates efficiently within an input voltage range of 3.6 V to 16 V.
The MCP1792T-3302H/CB can deliver a maximum output current of 100 mA.
It features a low quiescent current of 25 mA, which enhances energy efficiency.
The maximum operating temperature for the MCP1792T-3302H/CB is 125°C, making it suitable for harsh environments.
This model is housed in a compact SOT-23A surface mount package with 3 pins.
It complies with the automotive standard AEC-Q100, ensuring reliability in automotive applications.
Yes, it includes protection features such as thermal shutdown and current fold back for device safety.
The dimensions are 2.9 mm (L) x 2.8 mm (W) x 1.45 mm (H).
Yes, this voltage regulator is RoHS compliant, ensuring environmental safety and regulatory compliance.
It is designed for surface mount applications.
This voltage regulator is suitable for industrial electronics, automotive systems, and embedded systems requiring efficient voltage management.
The minimum input voltage for this model is 3.6 V.
