LEMO Circular Connector 4 Contacts Panel Mount 12.6 mm Socket Female Push Pull 1B Series EPG.1B.304.HLN

LEMO EPG.1B.304.HLN Circular Connector is a high-precision 4-contact industrial circular connector designed for panel mounting applications. It features a female socket mating type with a right-angle orientation. The connector supports a current rating of 4.5A and withstands voltage up to 1800V. Constructed with a robust brass housing and gold over nickel plated beryllium alloy contacts, it provides excellent electrical performance and durability even under demanding industrial conditions.

With an IP50 ingress protection rating, the connector offers resistance to dust ingress and moderate environmental factors, suitable for both indoor and controlled outdoor applications. The connector supports operating temperatures ranging from -55°C to 250°C, making it ideal for extreme temperature environments. Its solder termination ensures strong and reliable electrical contact with circuit boards, while the 360° EMC shielding protects signal integrity against electromagnetic interference.

The rugged design includes a precise and quick push-pull latching mechanism, allowing efficient mating and unmating with a rated endurance of 5000 cycles, ensuring long service life. The right-angle layout optimizes panel layout in compact spaces, while its compact 12.6 mm shell size supports high-density configurations.

Applications include audio/video communications, medical instrumentation, research equipment, and various test and measurement devices, where reliability and precision are critical. The product is CE certified and UL approved, ensuring compliance with international safety and quality standards.

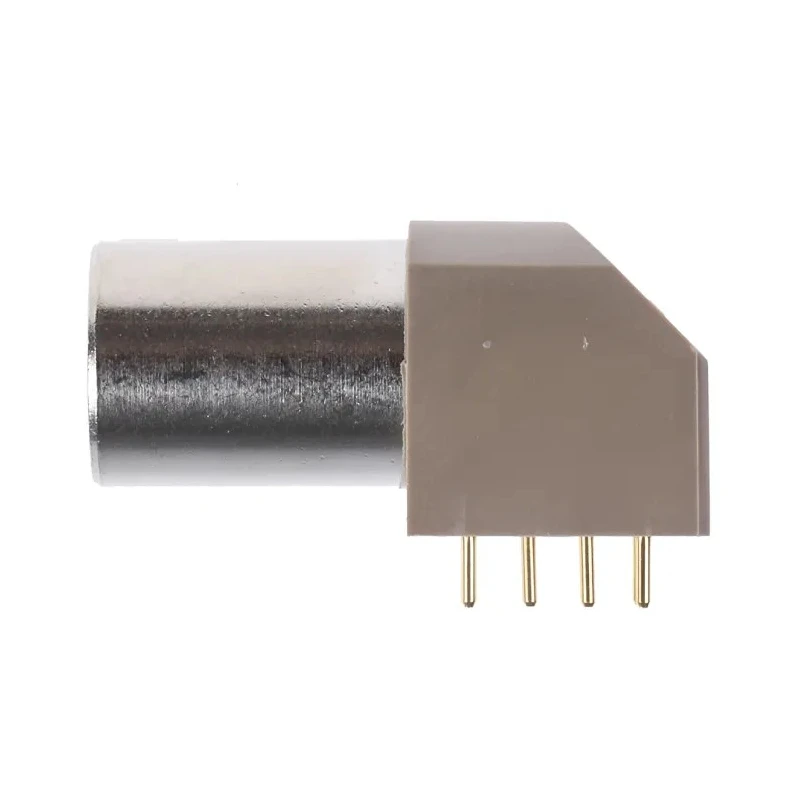

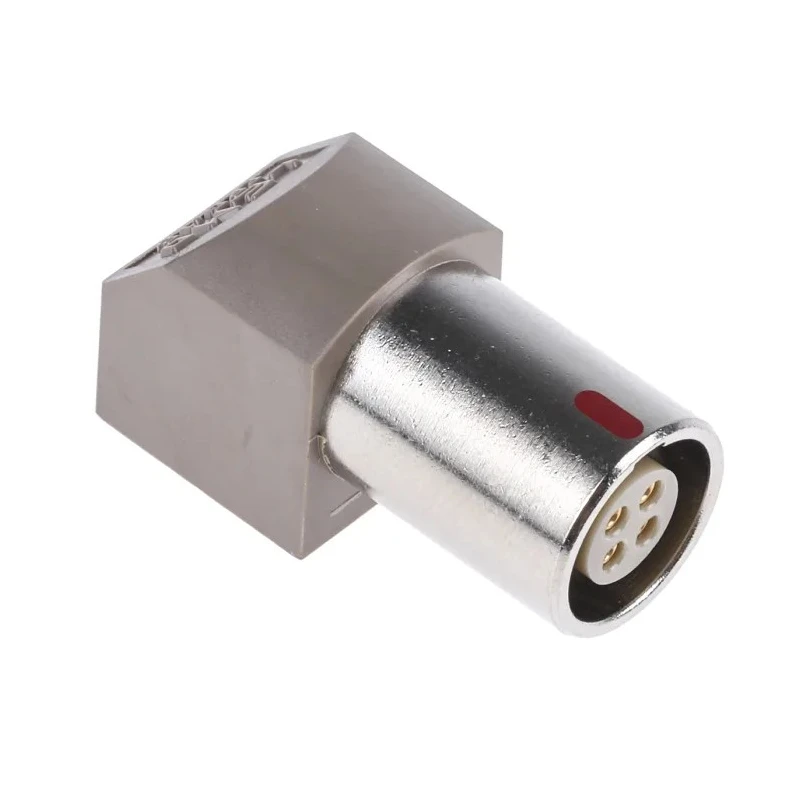

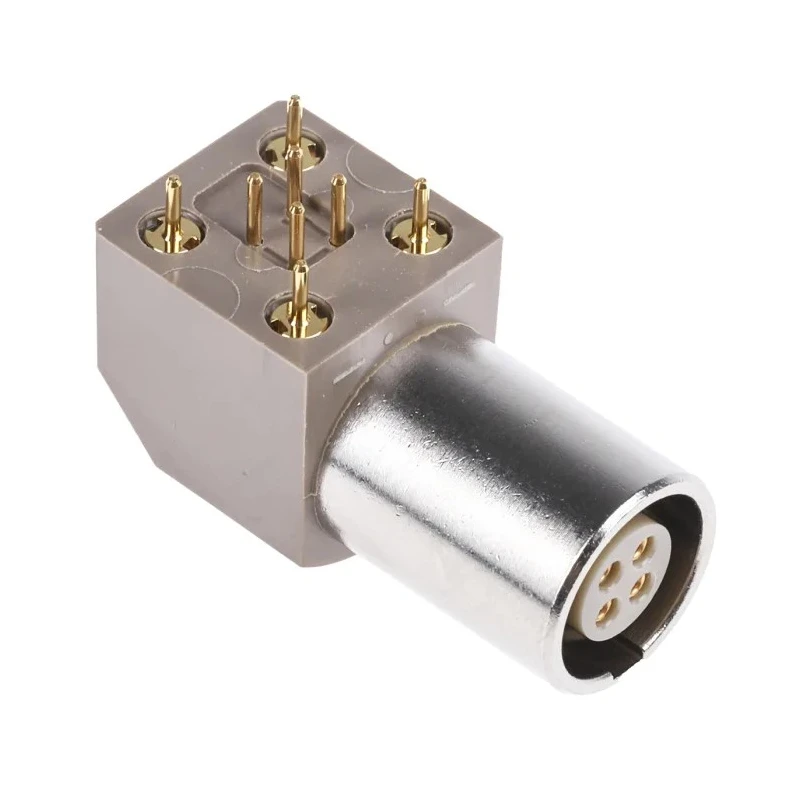

The connector features a right-angle, female socket design for panel mounting. It uses gold over nickel plated beryllium alloy contacts for durability and conductivity. Constructed with brass housing, it withstands from -55°C up to 250°C operating temperatures.

Offers IP50 protection rating and 5000 mating cycles for reliable performance. Solder termination and 360° EMC shielding ensure secure connections in harsh environments. Push-pull mating type allows quick and secure coupling and decoupling.

Suitable for audio/video, medical devices, research, test and measurement instrumentation applications. Complies with CE certification and UL approval for quality assurance. Explore the full range of Industrial Circular Connectors on EnvMart for your electronics assembly and testing needs.
