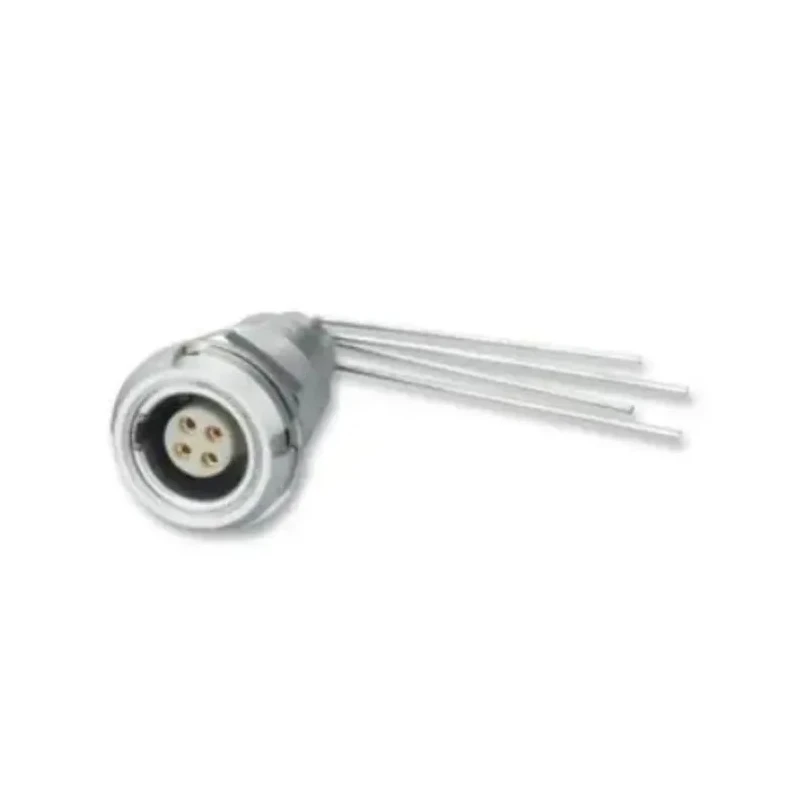

LEMO 1B Series Circular Connector, 6 Contacts, Panel Mount, Socket, Female, 12 mm, IP50, EEG.1B.306.CLV
Specifications
| Country of Origin | Switzerland |
|---|---|
| Voltage | 1700V |
| Brand | LEMO |
| Orientation | Right Angle |
| Current | 6A |
| Model | EEG.1B.306.CLV |
| IP Rating | IP50 |

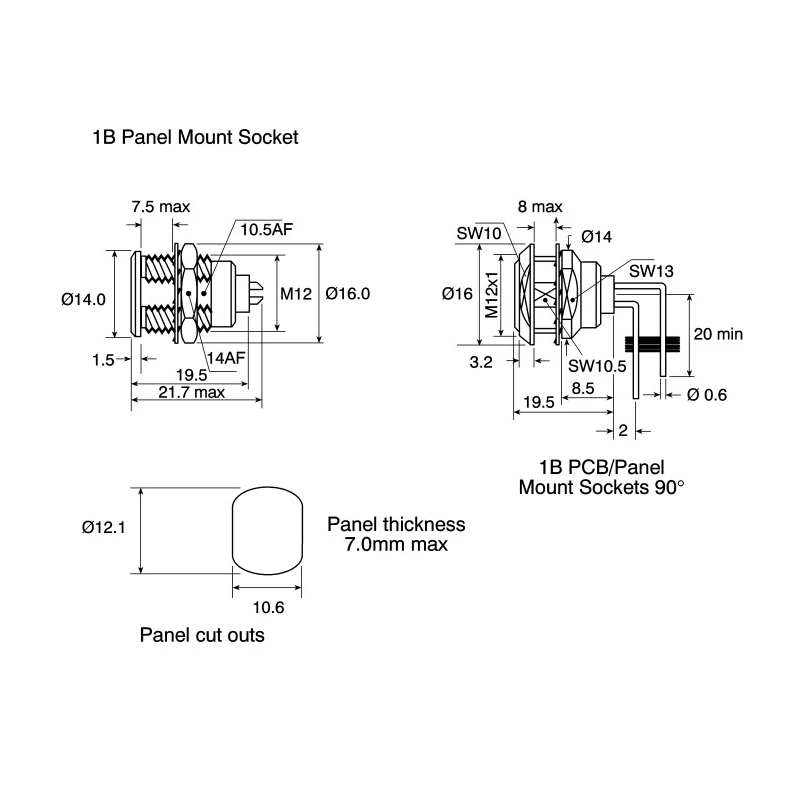

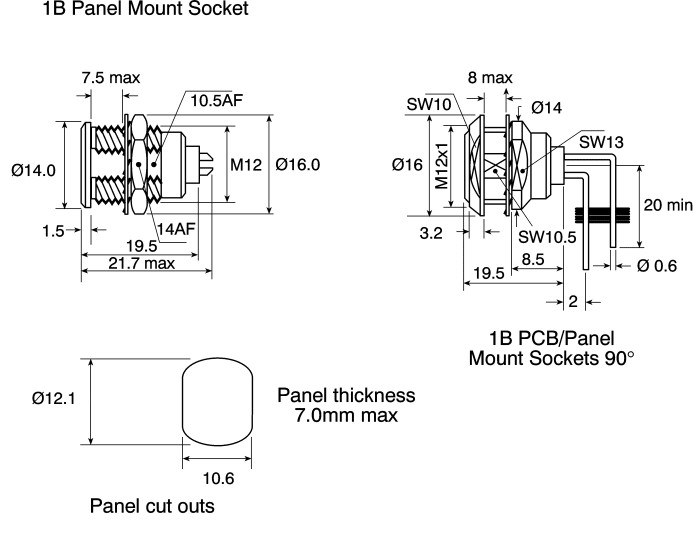

| Mount Type | Panel Mount |
| Housing Material | Brass |
| Contact Material | Beryllium Alloy |
| Series | 1B |
| Termination Type | Solder |
| Maximum Operating Temperature | 250°C |
| Minimum Operating Temperature | -55°C |
| Pole Format | 6 |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 6 |
| Contact Gender | Female |
| Shell Size | 1 |
| Mating Type | Keyed |
| Connector Size | 12 mm |
| Plug/Socket | Socket |
Key Features
- High-quality circular connector from LEMO's 1B Series.
- Features 6 contacts for multi-signal applications.
- Designed with a secure panel mount for stable installation.
- 12 mm connector diameter offers compact connectivity.
- Right angle orientation ideal for space constrained layouts.
- Rated IP50 for moderate protection against dust ingress.
- Female socket with gold over nickel plated beryllium alloy contacts.
- Suitable for use at currents up to 6A and voltages up to 1700V.
Product Description
LEMO EEG.1B.306.CLV is a premium-grade circular connector from LEMO's 1B Series, engineered for professional electronic and industrial applications requiring reliable and high-quality panel-mounted connectivity. This connector is equipped with 6 contacts and is designed as a female socket with right angle panel mount orientation, providing flexible integration in dense assemblies.
Its 12 mm connector size contributes to a compact yet sturdy profile, which is crucial for systems with limited installation space. The connector assures safe operation with a current rating of 6A and a maximum voltage of 1700V. The gold over nickel plated beryllium alloy contacts guarantee excellent electrical conductivity, corrosion resistance, and consistent signal transmission under demanding conditions.
High-end LEMO 1B Series circular connector, ideal for industrial and laboratory projects. 6-contact configuration enables versatile multi-signal connection. Panel mount with right angle orientation supports secure chassis and PCB installations.
IP50 ingress protection for resistance against moderate dust exposure. Robust brass housing and solder termination ensure reliability. Large operating temperature range suited for environments from -55°C up to 250°C. Mating is keyed for secure and error-free assembly.
Meets stringent requirements for use in test & measurement, medical, automation, and control panels.
This LEMO chassis socket is an excellent choice for use in industrial automation, laboratory equipment, communication systems, testing instruments, and medical devices where performance and reliability are key. It incorporates a modular design and is compatible with 1B Series mating plugs and accessories. The durable construction and thoughtful engineering provide peace of mind for long-term deployments.
Explore more high-performance connectors and innovative solutions in the Industrial Circular Connector category from LEMO on EnvMart. Find the right configuration for your application with confidence.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 6A, making it suitable for various applications requiring reliable power transmission.
The maximum voltage rating for this connector is 1700V, allowing it to be used in high-voltage applications.
It has an IP50 rating, providing moderate protection against dust ingress, suitable for many industrial environments.
This model features a right angle orientation, which is ideal for installations in space-constrained layouts.
The contacts are made from beryllium alloy and are plated with gold over nickel, while the housing is constructed from brass.
It operates within a temperature range of -55°C to 250°C, making it suitable for extreme environments.
This model features a total of 6 contacts, allowing for versatile multi-signal connections.
It uses a solder termination type, ensuring a secure and reliable connection during installation.
The connector size is 12 mm, contributing to its compact form factor for tight spaces.
Yes, it is designed for panel mount installation, providing stability and secure integration in various applications.
This connector is suitable for use in industrial automation, laboratory equipment, communication systems, and medical devices.
It features a keyed mating type, ensuring secure and error-free assembly during connection.
