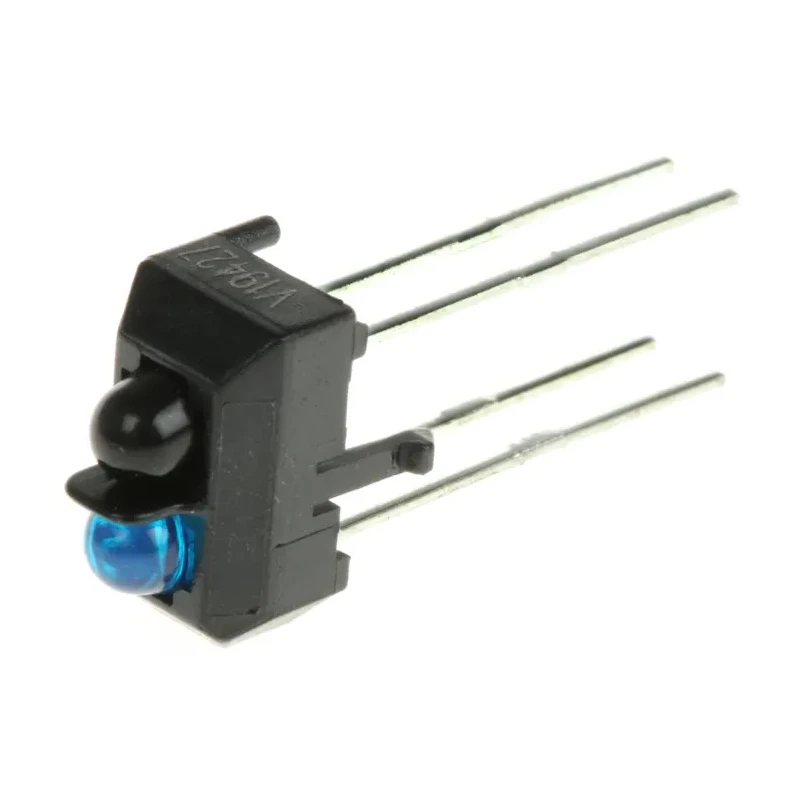

Vishay TCRT5000L Through Hole Reflective Optical Sensor, Transistor Output, 2-Channel, Leaded Package
Specifications
| Country of Origin | Philippines |
|---|---|
| Brand | Vishay |
| Height | 8.5mm |
| Length | 10.2mm |
| Model | TCRT5000L |
| Packaging | Tube |
| Width | 5.8mm |
| Mount Type | Through Hole |
| Detector Type | phototransistor |
| Series | TCRT5000 |
| Maximum Operating Temperature | 85°C |
| Package Type | Leaded |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 2 |
| Output Device | Transistor |
| Standards/Approvals | WEEE 2002/96/EC, RoHS 2002/95/EC |
| Number of Pins | 4 |
| Peak Sensor Distance | 2.5mm |
| Dimensions (L x W x H in mm) | 24.5 x 6.3 x 10.8 |
| Gap (in mm) | 3.1 |
| Emitter wavelength | 950 nm |
Key Features
- Compact leaded package with dimensions 24.5 x 6.3 x 10.8 mm.
- Peak sensor distance of 2.5 mm for precise reflective sensing.
- Includes phototransistor detector with 950 nm emitter wavelength.
- Operating temperature range from -40°C to 85°C for industrial reliability.
- Features a daylight blocking filter to reduce ambient light interference.
- Typical output current under test is 4 mA for the main TCST2103 variant.
- Leaded through hole mounting type with 4 pins and two output channels.
- RoHS and WEEE compliant, suitable for environmental safety standards.
Product Description
Vishay TCRT5000L reflective optical sensor is designed for precise optical detection, featuring a compact leaded package measuring 24.5 mm in length, 6.3 mm in width, and 10.8 mm in height. It is a through hole mount device with transistor output and two output channels, making it suitable for various industrial, electronic, and manufacturing applications.
This sensor operates with a peak sensor distance of 2.5 mm and uses a phototransistor detector paired with an infrared emitter that emits light at a wavelength of 950 nm. The device includes a daylight blocking filter to minimize interference from ambient light and ensure accurate sensing in variable lighting environments.
Operating reliably in temperatures ranging from -40°C to +85°C, the TCRT5000L meets the WEEE 2002/96/EC and RoHS 2002/95/EC standards, making it environmentally compliant and suitable for integration into industrial, laboratory, and automation systems.
Compact leaded package for through hole mounting. Peak sensor distance of 2.5 mm ensures precise detection. Phototransistor detector with 950 nm infrared emitter. Operates over a wide temperature range of -40°C to 85°C. Includes daylight blocking filter to enhance accuracy.
Typical output current is 4 mA during testing. Package contains tubes for convenient insertion into production lines. Ideal for use in optical switches, photo interrupters, counters, and encoders.
Applications for this sensor cover industrial automation, manufacturing processes, equipment safety interlocks, and precision measurement systems. The device is manufactured in the Philippines, ensuring consistent production quality.
Choose Vishay TCRT5000L reflective Optical Sensors for durable, accurate detection components essential in high-performance electronic systems. Explore more Vishay sensors and components at EnvMart to find compatible and complementary parts for your projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TCRT5000L has dimensions of 24.5 mm in length, 6.3 mm in width, and 10.8 mm in height.
The peak sensor distance for the TCRT5000L is 2.5 mm, allowing for precise reflective sensing.
This model operates reliably within a temperature range of -40°C to +85°C.
The TCRT5000L features a transistor output, suitable for various applications.
This optical sensor has two output channels, enhancing its versatility in applications.
The infrared emitter in the TCRT5000L operates at a wavelength of 950 nm.
The TCRT5000L is designed for through hole mounting, featuring a leaded package.
This model is compliant with WEEE 2002/96/EC and RoHS 2002/95/EC standards.
The typical output current under test conditions for the TCRT5000L is 4 mA.
This optical sensor is suitable for applications in industrial automation, manufacturing processes, and precision measurement systems.
The TCRT5000L features 4 pins for connection.
The TCRT5000L is manufactured in the Philippines, ensuring consistent production quality.
