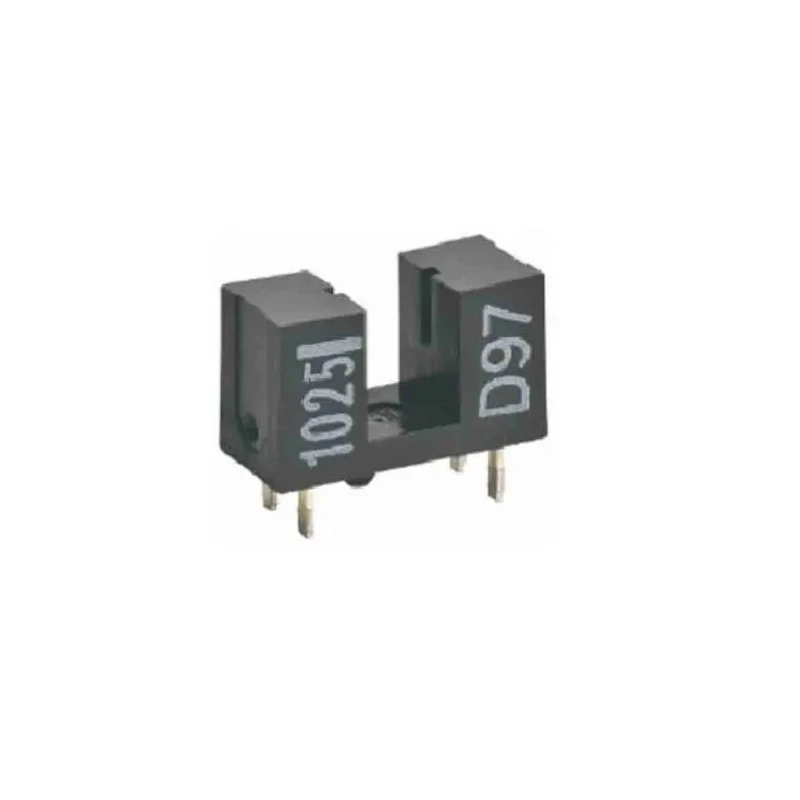

Omron Slotted Optical Switch Phototransistor Output Through Hole Pin Type EE-SX1025

The Omron EE-SX1025 is a slotted optical switch designed for high-resolution transmissive sensing applications. Featuring a phototransistor output and a compact form factor for efficient integration onto PCBs, this sensor provides reliable detection in various automated and electronic systems.

The device utilizes a slotted optical aperture with a slot width of 2.8 mm, enabling accurate recognition of passing targets within the slot. Its phototransistor configuration ensures a fast response, with typical rise and fall times of 4 µs each. The through hole mounting design and four-pin package structure facilitate straightforward placement onto circuit boards for robust installations.

Engineered with durability in mind, the EE-SX1025 operates across a wide temperature range from -25°C to 85°C and is ideal for environments requiring repeated accurate sensing. Its low profile and compact dimensions, measuring 9.3 mm in length, 4 mm in width, and 5.4 mm in height, make it suitable for space-constrained applications.

This optical switch finds application in office automation devices, medical equipment, building automation controls, amusement industry systems, and vending machines - anywhere high-resolution detection and reliable phototransistor output are essential. The PCB mounting format is particularly advantageous for electronics manufacturers and engineers working on varied optoelectronic assemblies.

With Omron's established technology and build quality, the EE-SX1025 ensures precise optical sensing and long-term operational stability, meeting the needs of industrial and commercial users.
