Broadcom Surface Reflective Optical Sensor Photodiode Output 5mm Peak Distance Surface Mount Package HSDL-9100-021

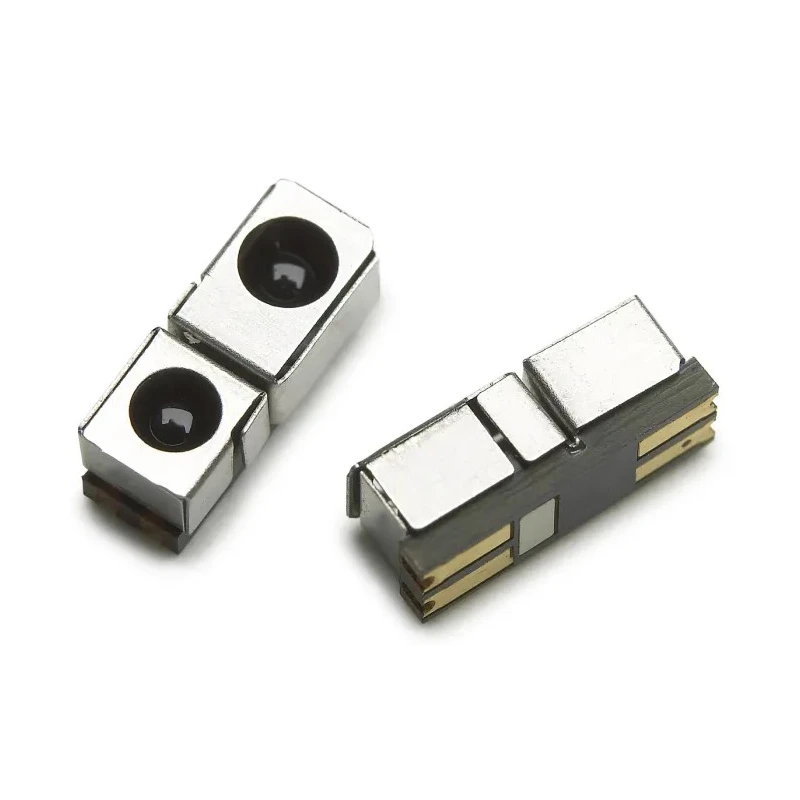

Broadcom HSDL-9100-021 is a high-performance surface reflective optical sensor integrating an IR emitter with photodiode output in a compact surface mount metal package. This design offers excellent optical isolation to minimize cross-talk, enhancing sensor accuracy.

This sensor features a 4-pin SMT form factor with a height of 2.7mm, length of 6.9mm, and width of 2.75mm, making it suitable for dense PCB layouts. The typical rise and fall times are both 50ns, allowing for fast and reliable proximity measurements.

The HSDL-9100 series provides a peak sensor distance of 5mm, reliably detecting objects at distances ranging from near zero up to 60mm with a high signal-to-noise ratio and low dark current. This analogue sensor operates effectively across temperatures from -40°C to 85°C, supporting usage in various industrial and consumer environments.

Common applications include integration into mobile phones, notebooks, industrial automation systems, printers, home appliances, and vending machines. Its compact surface mount packaging and tape & reel packaging supports efficient automated manufacturing.

Compact metal package reduces optical crosstalk and ensures sensor accuracy. 4-pin miniature SMT package for space-constrained designs. Peak sensing distance of 5mm with ability to detect objects up to 60mm. Fast typical rise and fall times of 50ns for rapid response.

Wide operating temperature range from -40°C to 85°C. Analogue output suitable for diverse sensing applications. Packaged in Tape and Reel format for automated assembly.

This sensor is ideal for industrial, electronic, consumer, and automotive proximity sensing applications requiring precise object detection in compact spaces. Browse more Optical Sensors and related components at EnvMart for comprehensive solutions.
