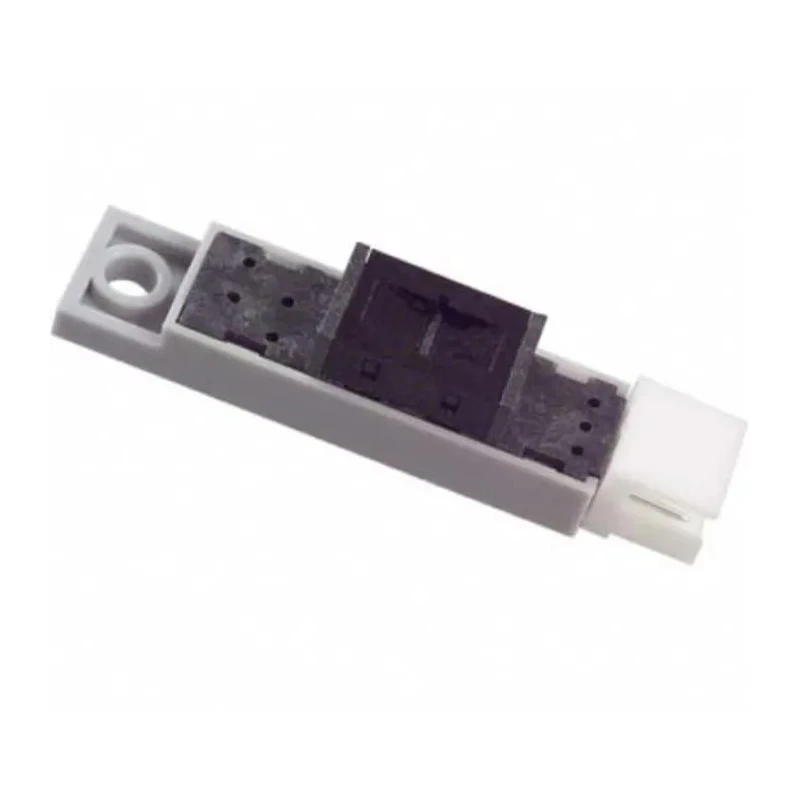

Sharp Surface Reflective Optical Sensor with Photointerrupter Output GP2A200LCS0F
Specifications
| Country of Origin | India |
|---|---|
| Brand | Sharp |
| Height | 8.65mm |
| Length | 39.8mm |
| Model | GP2A200LCS0F |
| Packaging | Plastic Bag |
| Width | 9mm |
| Mount Type | Surface |
| Series | GP2A200LCS0F |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -10°C |
| Output Device | Photointerrupter |
| Standards/Approvals | RoHS |
| Number of Pins | 3 |
| Typical Rise Time | 1ms |
| Typical Fall Time | 1μs |
| Output Signal Type | Analogue |
| Peak Sensor Distance | 22, 90mm |
Key Features
- Features OPIC output with emitter and detector aligned for surface reflective sensing.
- Provides a peak sensor distance of 22 and 90 mm optimized for focal distance selectivity.
- Typical rise time is 1 ms, and fall time is 1 μs for fast response.
- Compact dimensions with length 39.8 mm, width 9 mm, and height 8.65 mm.
- Equipped with a 3-pin connector and surface mount installation.
- Operates in temperatures from -10°C to 70°C, RoHS compliant.
- Includes additional screw fixing holes and position pin to prevent misalignment.
Product Description
Sharp GP2A200LCS0F is a surface reflective optical sensor featuring photointerrupter output technology ideal for precise non-contact object detection in industrial and electronic applications.
This sensor integrates emitter and detector in the same direction within a compact plastic molding that uses light modulation techniques to minimize disturbance from ambient lighting. The device is optimized for distances of 22 and 90 mm providing reliable detection at those focal points.
Its fast response times of 1 ms rise and 1 μs fall enable accurate and timely sensing for automated machinery and control systems. The 3-pin surface mount design facilitates remote mounting or off-board configurations, enhancing integration versatility.
Measuring 39.8 mm in length, 9 mm width, and 8.65 mm height, the sensor also includes screw fixing holes and a position pin feature to ensure stable and aligned installation. It operates within a broad temperature range from -10°C to 70°C, making it suitable for diverse environmental conditions.
The sensor is RoHS directive compliant, supporting green manufacturing practices and is not rated for automotive applications.
Common industrial uses include electronic components, power and connectors, optoelectronics, and photodetectors where reflective optical sensing is required for position detection, object presence, or proximity applications.
Features OPIC output with emitter and detector aligned for surface reflective sensing. Provides a peak sensor distance of 22 and 90 mm optimized for focal distance selectivity. Typical rise time is 1 ms, and fall time is 1 μs for fast response.
Compact dimensions with length 39.8 mm, width 9 mm, and height 8.65 mm. Equipped with a 3-pin connector and surface mount installation. Operates in temperatures from -10°C to 70°C, RoHS compliant. Includes additional screw fixing holes and position pin to prevent misalignment.
Explore the Sharp optical sensor range for reliable and accurate sensing solutions on EnvMart.
Explore more products in our Optical Sensors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Sharp GP2A200LCS0F has a peak sensor distance of 22 mm and 90 mm, optimized for focal distance selectivity.
This optical sensor features a photointerrupter output, providing an analogue output signal type.
The typical rise time is 1 ms, and the fall time is 1 μs, allowing for fast response in detection applications.
This model measures 39.8 mm in length, 9 mm in width, and 8.65 mm in height.
The sensor operates within a temperature range from -10°C to 70°C, making it suitable for various environmental conditions.
The GP2A200LCS0F is designed for surface mount installation and includes screw fixing holes and a position pin to prevent misalignment.
Yes, the Sharp GP2A200LCS0F is RoHS compliant, supporting environmentally friendly manufacturing practices.
Common applications include electronic components, power connectors, optoelectronics, and photodetectors for position detection and object presence sensing.
The sensor is equipped with a 3-pin connector for electrical connections.
The sensor is housed in a compact plastic molding, although specific material details are not provided.
The Sharp GP2A200LCS0F is packaged in a plastic bag.
This model is part of the GP2A200LCS0F series of optical sensors.
