BALLUFF Light Intensity Sensor Red LED 200 mm, PNP Output, 100 mA, IP67, 30V dc BOS 12M-PS-RD12-S4

Free Delivery in India | Lowest Global Shipping Charges

BALLUFF Light Intensity Sensor Red LED 200 mm, PNP Output, 100 mA, IP67, 30V dc BOS 12M-PS-RD12-S4

Name: BALLUFF Light Intensity Sensor Red LED 200 mm, PNP Output, 100 mA, IP67, 30V dc BOS 12M-PS-RD12-S4
Brand: BALLUFF
SKU: 136016
Price: 121.41 USD
Availability: InStock



Category Optical Sensors Brand BALLUFF Condition New

Specifications

Country of Origin	Germany
Brand	BALLUFF
Light Source	Red LED
Model	BOS 12M-PS-RD12-S4
IP Rating	IP67
Mount Type	Panel Mount
Housing Material	Nickel Plated Brass
Output type	PNP
Series	BOS 12M
Maximum Operating Temperature	55°C
Minimum Operating Temperature	-5°C
Maximum Current	100mA
Switching Frequency	1kHz
Terminal type	M12 Connector
Standards/Approvals	IEC, RoHS, CE
Maximum Supply Voltage	30V dc
Maximum Detection	200mm

Key Features

The sensor features a red LED light source aiding precise alignment.
It supports a maximum current of 100 mA with a switching frequency of 1 kHz.
Equipped with an M12 connector for reliable terminal connection.
The sensor housing is made of durable nickel plated brass with IP67 ingress protection.
Designed for panel mount installation, operating between -5°C and 55°C.
Supports supply voltage up to 30V dc and includes an LED status display for operation feedback.
Conforms to IEC, RoHS, and CE standards with German country of origin.

Product Description

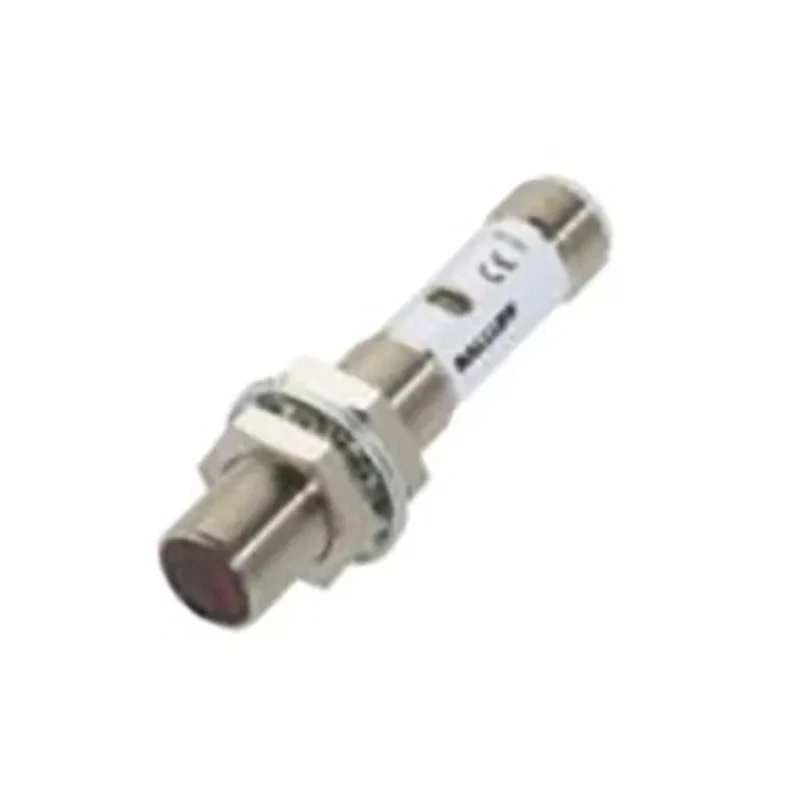

BALLUFF BOS 12M-PS-RD12-S4 is a tubular optical light intensity sensor featuring a red LED light source and PNP output capable of handling 100 mA current. Designed for industrial and automation control environments, this sensor provides a maximum detection range of 200 mm with precise switching performance at 1 kHz frequency.

The sensor's durable nickel plated brass housing offers IP67 rated protection against dust and water ingress, ensuring reliable operation in harsh industrial conditions. It utilizes a standard M12 connector for seamless installation and integration into panel mounts.

Operating over a temperature range from -5°C to 55°C, the sensor is polarity reverse protected and operates on supply voltages between 10 to 30V dc. The integrated LED status display simplifies operational alignment and monitoring.

Part of the BOS 12M series, this sensor aligns mechanically and electrically with typical M12x1 inductive proximity sensors, facilitating easy replacement or combination in automated systems.

The sensor features a red LED light source aiding precise alignment. It supports a maximum current of 100 mA with a switching frequency of 1 kHz. Equipped with an M12 connector for reliable terminal connection. The sensor housing is made of durable nickel plated brass with IP67 ingress protection.

Designed for panel mount installation, operating between -5°C and 55°C. Supports supply voltage up to 30V dc and includes an LED status display for operation feedback. Conforms to IEC, RoHS, and CE standards with German country of origin.

This sensor is ideal for use in industrial automation, electrical, manufacturing, and control systems requiring precise object detection and reliable operation in challenging environments. The German engineering and conformity with international standards ensure high quality and durability.
