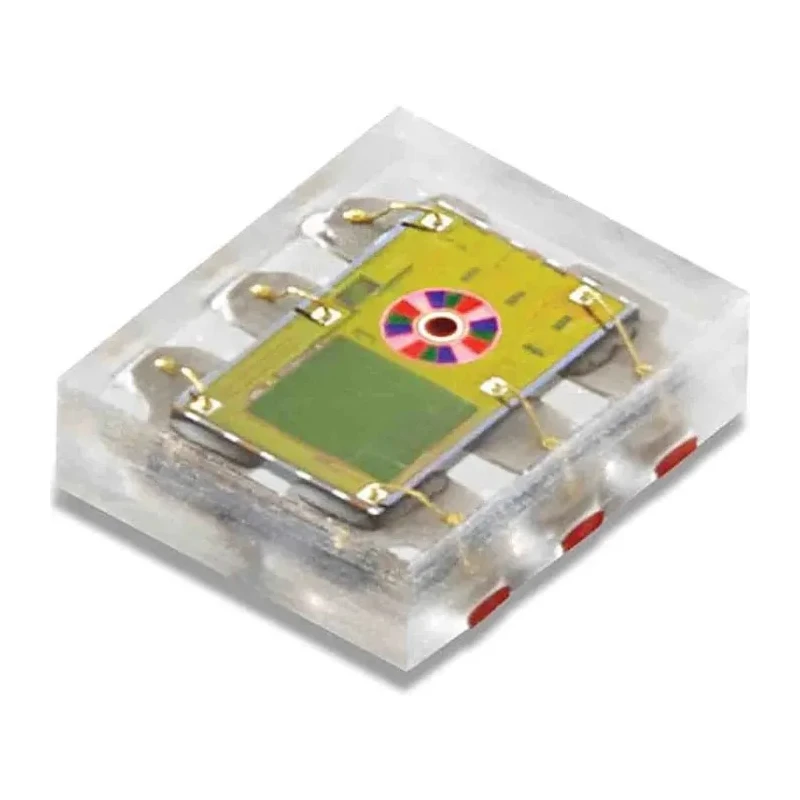

ams OSRAM Colour Sensor, Colour Light, Surface Mount, 850 nm Peak Wavelength, 6-Pin FN, Digital, 400 kHz, TCS34007FNM

The ams OSRAM TCS34007FNM is a surface-mount colour sensor designed for precise and reliable measurement of colour and infrared light in electronic systems. With high sensitivity and a compact 6-pin FN package, this device enables accurate lux and colour temperature readings for a range of industrial, commercial, and consumer electronics applications.

This digital colour sensor features a peak wavelength sensitivity at 850 nm, making it highly suitable for display calibration, lighting control, and ambient light detection. Leveraging RGBC (red, green, blue, clear) and ALS (ambient light sensing) technologies, the TCS34007FNM can efficiently detect and correct backlight intensity and adjust display colour gamut with improved accuracy. Its evenly responsive photodiode array allows for 360-degree incident light detection, enhancing performance in dynamic lighting environments.

Engineered for robust operation, the sensor supports a wide operating temperature range from -40°C up to 70°C, and is ideal for integration into harsh or fluctuating environments. With a low supply current of just 330 μA, the TCS34007FNM is suited for battery-powered and energy-efficient designs. Its digital interface operates efficiently at frequencies up to 400 kHz, offering reliable communication in modern embedded systems.

The compact dimensions, measuring only 2.4 mm in length, 2.0 mm in width, and 0.65 mm in height, allow the TCS34007FNM to be integrated into space-constrained circuits, such as smartphones, industrial control panels, handheld instruments, and smart lighting solutions. The versatile sensor’s surface-mount form factor simplifies automated assembly and aligns with high-volume electronic manufacturing requirements.

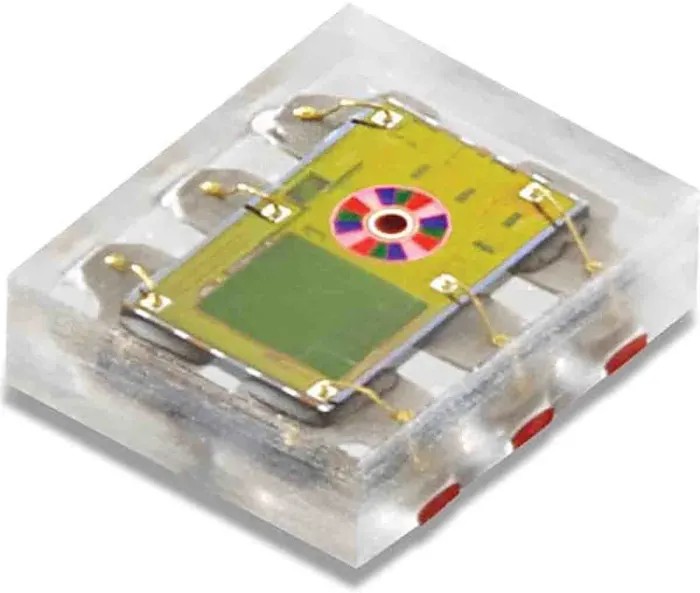

Advanced features include circular-segmented RGBC photodiodes for consistent response, a technology base that provides digital output, and support for a supply voltage range from 2.7 V to 3.6 V. The device exhibits excellent reliability, meeting strict quality standards and offering no automotive rating for specialist industrial and consumer use cases. Its operation does not include any hazardous substances, aligning with global environmental compliance standards.

Use cases for the ams OSRAM TCS34007FNM include display brightness and colour calibration, light source identification, ambient light detection in consumer electronics, lighting systems with dynamic scene adjustment, and laboratory measurement instruments requiring precise, real-time colour sensing functionality. The device’s accuracy, fast response, and reliable surface-mount construction make it an excellent choice for designers of advanced optical sensing solutions.
