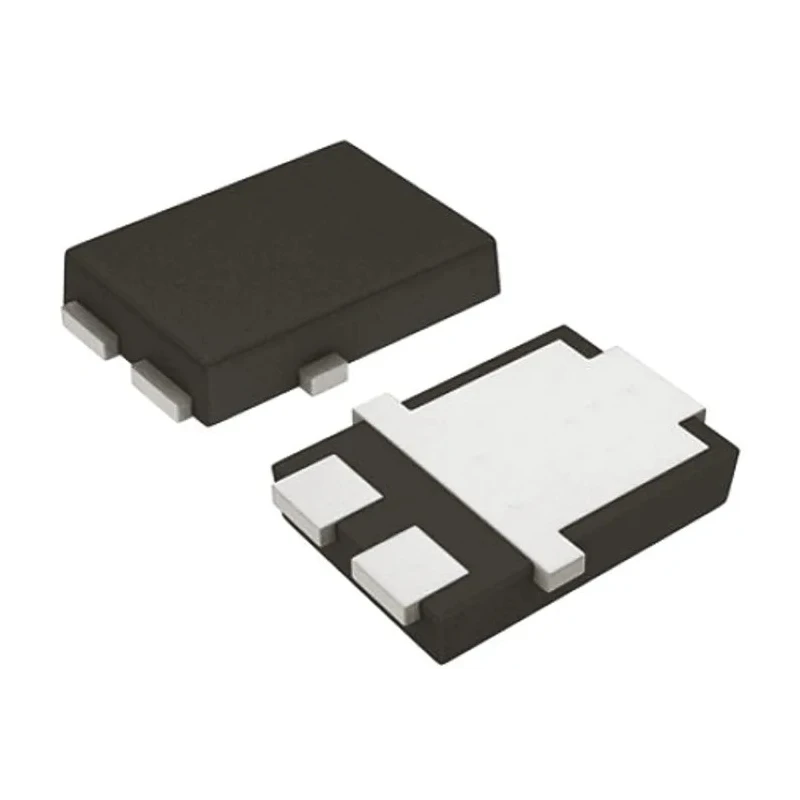

Vishay 40 V 10 A Surface Mount Schottky Diode 3-Pin TO-277 SS10P4HM3_A/H
Specifications
| Country of Origin | China |
|---|---|
| Brand | Vishay |
| Height | 1.2mm |
| Length | 6.15mm |
| Model | SS10P4HM3_A/H |
| Width | 4.35mm |
| Mount Type | Surface |
| Series | SS10P4 |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-277 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 3 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 10A |
| Peak Reverse Repetitive Voltage Vrrm | 40V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 800μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 280A |
| Maximum Forward Voltage Vf | 560mV |
Key Features
- This diode has a peak repetitive reverse voltage of 40 V.
- Maximum continuous forward current rating is 10 A ensuring reliable conduction.
- Low forward voltage drop of 560 mV reduces power losses and improves efficiency.
- Built in a TO-277 package with three pins for surface mounting on PCBs.
- Operating temperature ranges from -55°C minimum to 150°C maximum for wide thermal tolerance.
- The device supports a peak non-repetitive forward surge current of 280 A for transient protection.
- It complies with the automotive standard AEC-Q101, suitable for automotive and industrial use.
- Compact dimensions of length 6.15 mm, width 4.35 mm, and height 1.2 mm make it suitable for space-constrained circuits.
Product Description
The Vishay SS10P4HM3_A/H is a high-performance Schottky rectifier diode designed as a low forward voltage, fast switching semiconductor component suitable for power applications requiring efficient energy conversion and minimal losses.
Its 3-pin TO-277 surface mount package allows easy integration into printed circuit boards while maintaining robust electrical performance.
This diode supports a continuous forward current of 10 amperes with a peak reverse repetitive voltage rating of 40 volts, making it ideal for regulated power supplies, DC/DC converters, and automotive electronics.
Featuring a maximum forward voltage drop of 560 millivolts and capable of handling peak surge currents up to 280 A, it ensures reliability during transient conditions.
The operating temperature range from -55 to 150 degrees Celsius accommodates both industrial and automotive ambient conditions, while compliance with AEC-Q101 automotive standard guarantees durability and quality for automotive system implementations.
With its compact form factor (6.15 mm length, 4.35 mm width, 1.2 mm height), the diode offers flexibility in designs where space efficiency is critical. This diode has a peak repetitive reverse voltage of 40 V. Maximum continuous forward current rating is 10 A ensuring reliable conduction.
Low forward voltage drop of 560 mV reduces power losses and improves efficiency. Built in a TO-277 package with three pins for surface mounting on PCBs. Operating temperature ranges from -55°C minimum to 150°C maximum for wide thermal tolerance.
The device supports a peak non-repetitive forward surge current of 280 A for transient protection. It complies with the automotive standard AEC-Q101, suitable for automotive and industrial use. Compact dimensions of length 6.15 mm, width 4.35 mm, and height 1.2 mm make it suitable for space-constrained circuits.
Manufactured in China with quality production standards maintained by Vishay Semiconductor. Explore more Schottky diodes and related power components for your industrial or automotive electronics design needs at EnvMart.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The diode has a peak reverse repetitive voltage rating of 40 V.
It has a maximum continuous forward current rating of 10 A.
The maximum forward voltage drop is 560 mV, which helps reduce power losses and improve efficiency.
The dimensions of the package are 6.15 mm in length, 4.35 mm in width, and 1.2 mm in height.
It can handle a peak non-repetitive forward surge current of 280 A.
The operating temperature range is from -55°C to 150°C.
It complies with the automotive standard AEC-Q101, making it suitable for automotive applications.
This model features a 3-pin configuration for surface mounting.
It is a Schottky rectifier diode, designed for efficient energy conversion.
It is manufactured in China, adhering to quality production standards.
The peak reverse current is specified at 800 μA.
This diode is suitable for power applications such as regulated power supplies and DC/DC converters.
