| Country of Origin | China |
|---|---|
| Diameter | 1.7mm |
| Brand | Vishay |
| Height | 1.7mm |
| Length | 3.9mm |
| Model | SD101A-TR |
| Mount Type | Through Hole |
| Series | TIP117G |
| Maximum Operating Temperature | 125°C |
| Package Type | DO-35 |
| Minimum Operating Temperature | 65°C |
| Standards/Approvals | AEC-Q101, RoHS |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 30mA |
| Peak Reverse Repetitive Voltage Vrrm | 60V |
| Diode Configuration | Single |
| Rectifier Type | Small Signal |
| Peak Reverse Current Ir | 200nA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 2A |
| Maximum Forward Voltage Vf | 1V |

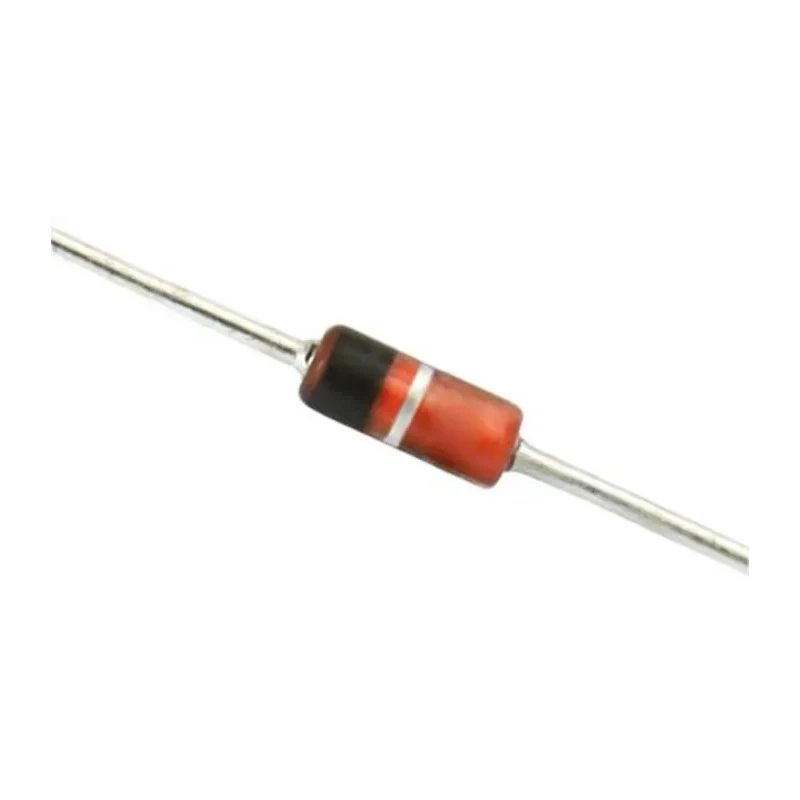

| Vishay 60 V 30 mA Small Signal Schottky Diode Schottky 2-Pin DO-35Brand | Vishay |
Vishay SD101A-TR is a high-performance small signal Schottky diode designed for applications requiring rapid switching and minimal power losses. It features a peak reverse repetitive voltage of 60 V and can withstand a maximum continuous forward current of 30 mA. The diode is packaged in a 2-pin DO-35 through-hole type package, offering ease of integration in electronic circuits.
With a maximum forward voltage of 1 V and a peak non-repetitive forward surge current rating of 2 A, the SD101A-TR diode ensures robust performance under transient conditions. It operates reliably in a wide temperature range from -65°C up to 125°C, suitable for demanding industrial and automotive environments.
This component complies with the AEC-Q101 automotive standard and adheres to RoHS compliance for environmental safety. Its compact dimensions of 3.9 mm length and 1.7 mm diameter make it suitable for space-constrained electronic assemblies.
The SD101A-TR is ideal for use in power rectification, switching power supplies, and other semiconductor applications where fast switching and low voltage drop are critical. Its single diode configuration and low peak reverse current of 200 nA reduce power dissipation and improve efficiency.
Very low forward voltage drop minimizes power loss. Fast switching times suitable for high-frequency applications. Single diode design ensures simplicity and reliability. Wide operating temperature range ensures durability across environments.
AEC-Q101 qualification supports automotive applications. RoHS compliance ensures environmental friendliness. Compact DO-35 package facilitates easy through-hole mounting. Low peak reverse current reduces leakage and power waste.
Supports industrial, automotive, and electronic component markets.
For buyers seeking dependable small signal Schottky diodes for sensitive electronic applications, the Vishay SD101A-TR provides a balance of fast response, efficiency, and durability. Explore more Vishay semiconductor products and related components on EnvMart to support your design, prototyping, and production needs.
Explore more products in our Schottky Diodes & Rectifiers category.
