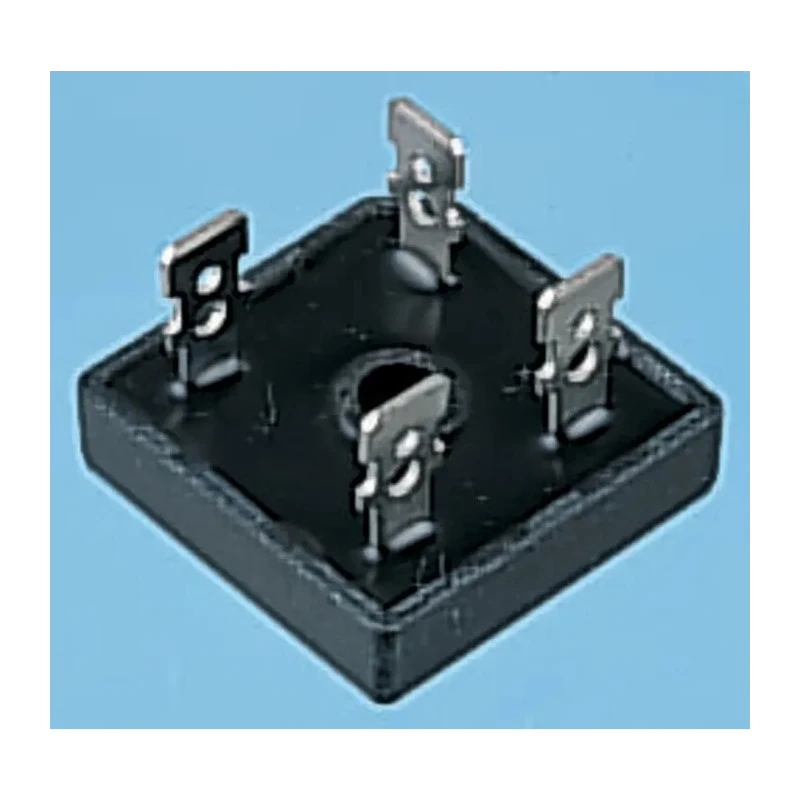

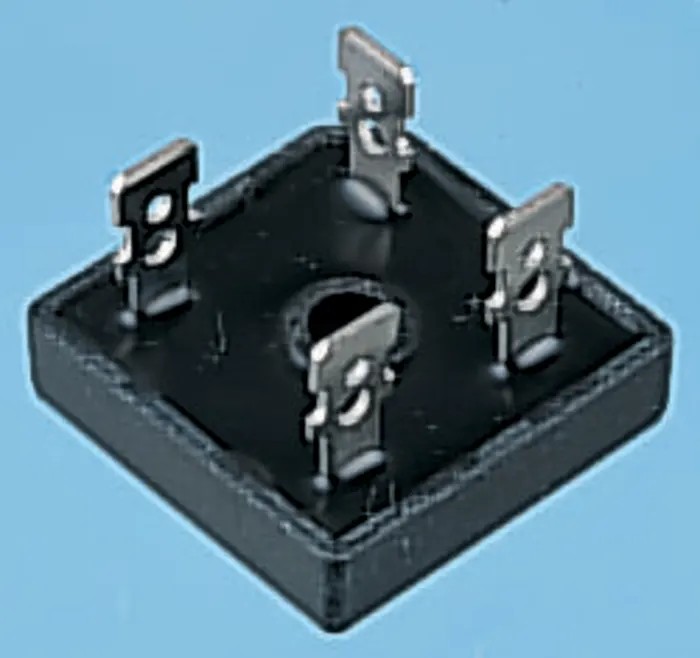

onsemi Bridge Rectifier 400 V 400 A, 4-Pin Single GBPC3504

onsemi GBPC3504 Bridge Rectifier is a high-performance discrete semiconductor device engineered for converting AC to DC in various industrial, electronic, and power supply applications. This bridge rectifier supports a peak reverse repetitive voltage of 400 V and a forward current capacity of 35 A, making it suitable for medium to high power rectification tasks.

Featuring a glass-passivated junction, the GBPC3504 model ensures enhanced durability and thermal stability. It is rated for operation in harsh environments, with a temperature range extending from -55°C minimum to a maximum operating temperature of 150°C, suitable for demanding HVAC, manufacturing, and power electronics environments.

The device is housed in a GBPC package with a compact footprint of 29 mm by 29 mm in length and width, and 11.23 mm in height. It includes push-on terminals and a screw mount type for secure and flexible installation options. Its 4-pin configuration and single-phase design simplify circuit integration.

The GBPC3504 delivers a peak non-repetitive forward surge current of 400 A, allowing it to handle short-term current spikes efficiently without damage. Its low peak forward voltage of 1.1 V aids in minimizing power loss during conduction, contributing to overall energy efficiency of the electronic circuits where it is deployed.

Provides a peak reverse repetitive voltage of 400 volts. Supports a forward current of 35 amperes for continuous operation. Features a peak non-repetitive forward surge current rating of 400 amperes. Constructed with a glass-passivated junction for enhanced reliability.

Operates within a temperature range of -55°C to 150°C. Equipped with push-on terminals and screw mount for easy installation. Compact package dimensions of 29 mm length, 29 mm width, and 11.23 mm height. Single phase configuration with 4 pins for robust circuit integration.

Low peak forward voltage drop of 1.1 volts ensuring energy efficiency. Ideal for use in industrial power supply, control systems, and electronic circuits.

This bridge rectifier is widely used in industrial machinery, power electronics, manufacturing plants, and HVAC systems requiring reliable AC/DC conversion. Its robust design and thermal handling characteristics enable long-term operation under tough electrical and environmental conditions.

For users developing or maintaining electronic systems, the GBPC3504 offers a dependable solution for efficient rectification with a compact form factor and easy mounting provisions.
