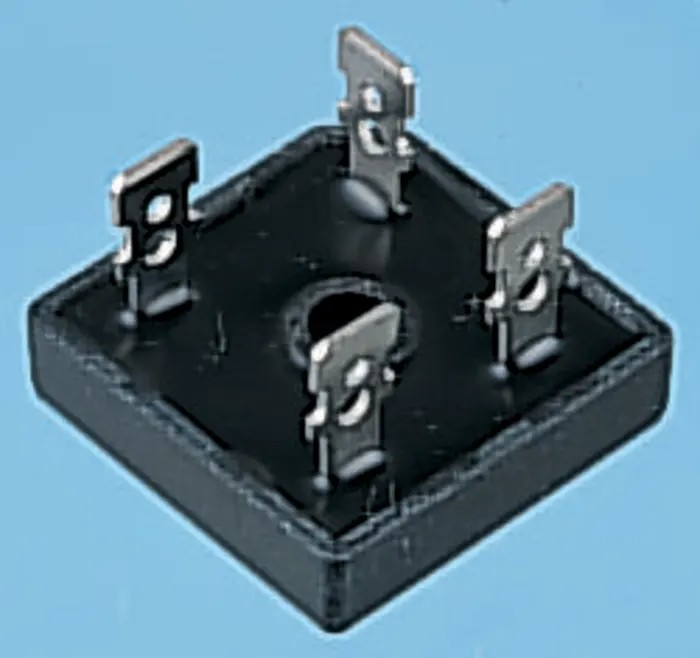

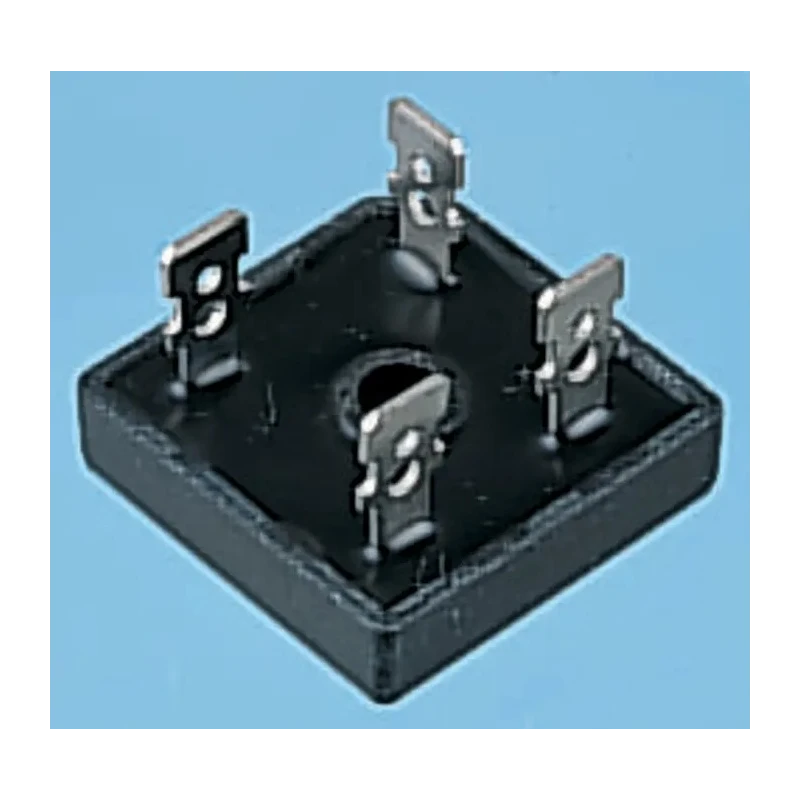

onsemi Bridge Rectifier 100 V 300 A 4-Pin Single GBPC2501

onsemi GBPC2501 Bridge Rectifier is a high-performance semiconductor component designed to convert alternating current (AC) to direct current (DC) efficiently. The device features a peak reverse repetitive voltage (Vrrm) of 100 V and a forward continuous current rating of 25 A, suitable for various power electronics applications in industrial control, power supplies, and battery charging units.

Constructed with glass passivated die technology, the bridge rectifier ensures excellent thermal stability and durability during operation. Its integrally molded heat sink offers very low thermal resistance, maximizing heat dissipation and prolonging device lifespan. The device supports a broad operating temperature range from -55°C up to 150°C, making it reliable in harsh environments.

This 4-pin single configuration bridge rectifier is housed in a GBPC package with screw mounting capabilities that provide secure installation and mechanical stability. The isolated voltage rating from case to lead is over 2500 V, ensuring electrical isolation and safety in high-voltage circuits. Fast-on terminals simplify electrical connections and maintenance.

Physical dimensions of the device are compact with a length and width of 29 mm and a height of 11.23 mm. The peak non-repetitive forward surge current capacity is rated at 300 A, making it suitable for applications involving dynamic current surges.

Common industrial uses include power conversion in electronic components, industrial machinery, HVAC systems, manufacturing lines, and laboratory equipment. This component is ideal for engineers designing power rectification circuits requiring robust performance and reliability.

Features a peak reverse repetitive voltage rating of 100 V. Supports a forward continuous current of 25 A. Includes a 4-pin screw mount GBPC package for installation. Operates in extreme temperatures from -55°C to 150°C effectively.

Constructed with glass passivated die technology for reliability. Enhanced heat dissipation through integrally molded heat sink. Fast-on terminals allow for easy electrical connections. Isolated voltage from case to lead exceeds 2500 V.

Compact size of 29 x 29 x 11.23 mm suitable for various assemblies. Peak non-repetitive forward surge current up to 300 A. Explore EnvMart's comprehensive range of semiconductor devices and Bridge Rectifiers to find matched components for your electrical and industrial applications.
