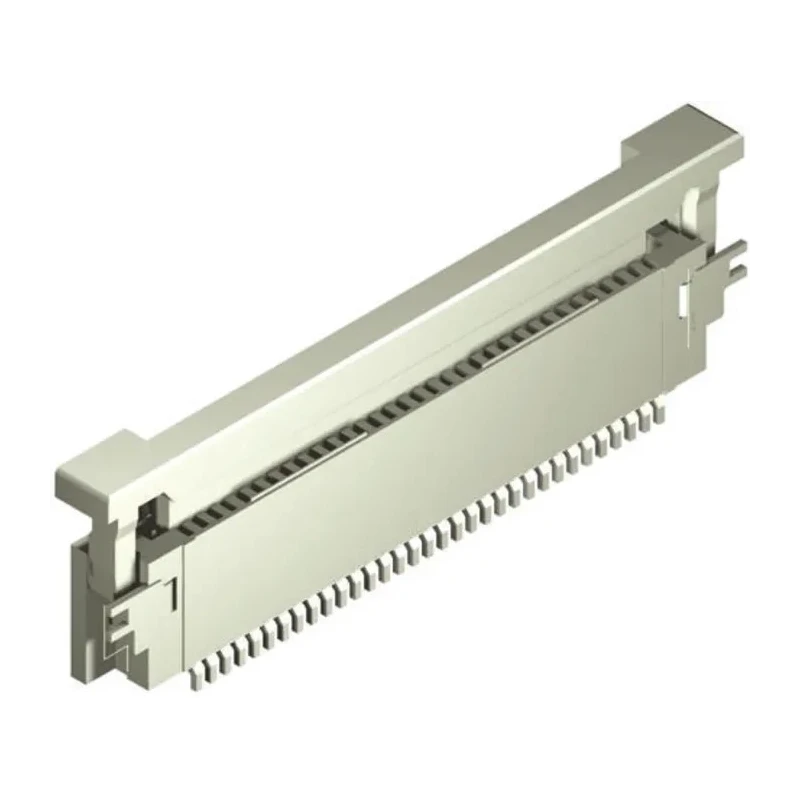

Molex 0.5 mm Pitch 50 Way Right Angle Female FPC Connector ZIF Top Contact 54104-5033

Molex 54104-5033 is a 0.5 mm pitch, 50 way right angle female flexible printed circuit (FPC) connector featuring a zero insertion force (ZIF) top contact mechanism. Designed for surface mount technology (SMT), it provides a highly reliable electrical connection in a compact footprint suitable for applications requiring space-saving interconnection solutions.

Constructed from durable phosphor bronze contacts plated with silver and housed in a robust nylon body, the connector withstands a broad operating temperature range from -40°C to 85°C, making it suitable for demanding industrial, automotive, telecommunications, and medical equipment environments. The slide type actuator facilitates easy insertion and secure retention of FPC cables, minimizing wear during repeat cycles.

The right angle orientation allows for efficient board layout designs, while the locking mechanism ensures stable mating and prevents accidental disconnection. Solder tabs on the base of the connector improve PCB retention and provide strain relief for solder tails, enhancing mechanical robustness during vibration or mechanical stress.

These connectors support signal and data transmission with a rated current of 500mA and voltage up to 50V, making them ideal for use in complex wiring harness systems in automotive navigation, digital cameras, tablets, smartphones, and other portable electronics.

The single row 50 contact configuration and top position contact design help maintain consistent electrical contact even under cable movement, aiding long-term reliability. The compact Easy On series design optimizes PCB space in tightly packed assemblies requiring reliable flexible connection interfaces.

Features a 0.5 mm pitch and 50 contacts for high-density applications. Utilizes phosphor bronze contact material with silver plating for durability. Includes a slide type actuator enabling zero insertion force (ZIF) for easy cable connection.

Right angle orientation and nylon housing provide compact mechanical reliability. Supports current rating up to 500mA and voltage rating of 50V. Operating temperature range from -40°C to 85°C for versatile environments. Incorporates locking mechanism and solder tabs for secure PCB retention and strain relief.

Designed with top-positioned contacts and a single row configuration. Ideal for use in automotive, consumer electronics, and medical devices for signal and data transmission.

This Molex 54104 series FPC Connector is part of a range of Easy On ZIF connectors known for space-saving designs and reliable performance. It meets the needs of multiple industries requiring compact, secure flexible cable interconnection solutions. Explore the category for other compatible connectors and accessories suitable for your application at EnvMart.
