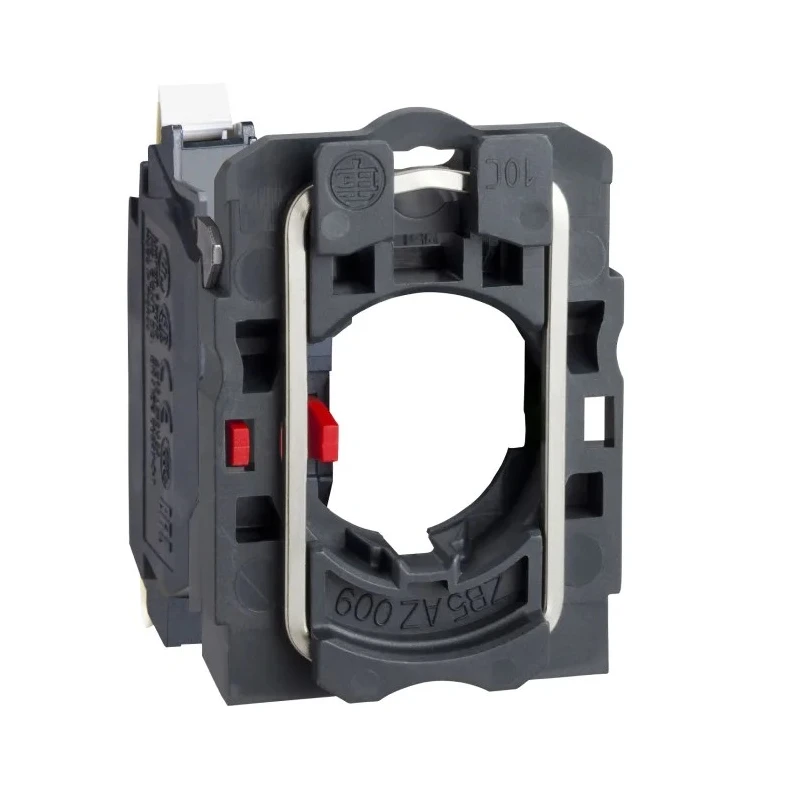

Schneider Electric Harmony XB5 Series Contact Block, Screw Clamp, 10A, 1 NC, ZB5AZ1025

The Schneider Electric ZB5AZ1025 is a high-precision contact block designed for the Harmony XB5 series, ensuring robust and safe switching in demanding industrial control circuits. This contact block comes equipped with a screw clamp terminal system, facilitating quick and reliable wiring suitable for professional automation panels and control equipment.

The ZB5AZ1025 supports a single normally closed (1 NC) contact configuration, making it ideal for push-to-break operations in various control systems. Its construction is engineered to support a current rating of 10A, enabling consistent performance in high-duty electrical environments. The body includes a fixing collar, streamlining the installation process and improving stability within the panel setup.

This model stands out due to its versatility in cable connection, accommodating wire sizes from 24 to 14 AWG, thus providing flexibility during setup or maintenance. Its mechanical lifespan is rated at an impressive 10 million cycles, ensuring longevity and minimization of replacement downtime in industrial environments.

Designed for resilience, the contact block operates across a broad temperature spectrum, from -40°C to +70°C. Its compact dimensions - 32 mm in length, 3 mm in width, and 42 mm in height - make it suitable even for panels with limited space. Additionally, the block is lightweight, weighing approximately 21 grams, which further simplifies integration without adding significant load.

Its compliance with international standards (UL 508, EN/IEC 60947-5-1/5-4/1, JIS C8201-1/5-1, CSA C22.2 No 14) ensures safe and reliable operation in global contexts. The unit is also IP20 fingerproof, providing protection against accidental contact with live terminals, enhancing operational safety for personnel during maintenance or troubleshooting.

The Schneider Electric ZB5AZ1025 finds application in diverse sectors such as food and beverage processing, chemical manufacturing, and paper mills - where reliability and durability are critical. It is especially well-suited for scenarios requiring frequent switching cycles, robust connection integrity, and compact, safe design features.
