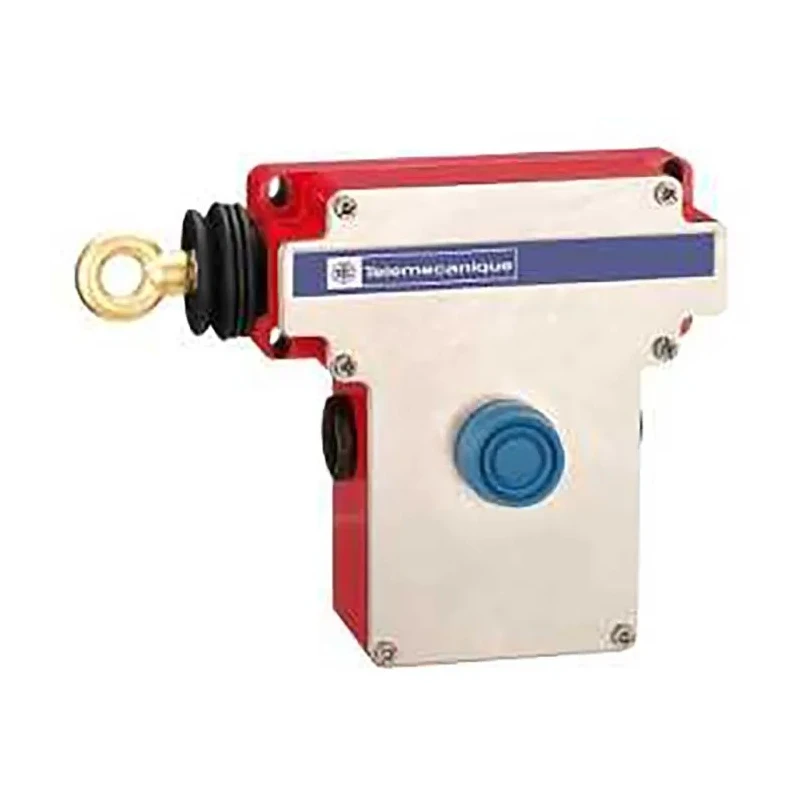

Telemecanique Sensors Rope Pull Switch 2 NO/2 NC Contact Configuration, IP66, Stainless Steel Housing, ATEX Certified XY2CE

Telemecanique Sensors XY2CE Rope Pull Switch is engineered for industrial safety applications where quick machine shutdown is critical. Featuring a positive opening operation with 2 normally open and 2 normally closed contacts, it guarantees reliable emergency stop functionality. The stainless steel housing adds robustness and resistance against harsh environments, while the IP66 rating protects against dust and water ingress.

This rope pull switch includes an emergency stop button and a reset button allowing safe machine restart only via manual intervention. Its construction complies with international standards such as CCC, UL (NISD), EAC, CSA C 22-2, EN/IEC 60947-5-5, and UL 508, making it suitable for various regulatory requirements.

The device supports an operating temperature range from -25°C to 70°C, making it adaptable for diverse industrial and manufacturing settings. It includes three cable entries and a standard M20 conduit entry, facilitating straightforward wiring installations. The mechanical life of 60,000 cycles ensures high durability even under frequent use.

ATEX certification confirms its suitability for use in hazardous areas, ensuring safety in explosive atmospheres. The Rope Pull Switch is designed to trip on human action or wire breakage, thus preventing injury and machine damage. The recommended cable support distance is 15 meters, which ensures optimal rope tension and operation.

Compact dimensions of 229 mm length, 105 mm width, and 142 mm depth allow easy mounting in various setups. It supports contact voltages up to 250V DC and 240V AC, enabling operation within a wide electrical range. This product is sourced from Morocco and is ideal for applications in industrial manufacturing, automation, safety systems, and mining environments.

The stainless steel housing provides excellent mechanical protection. Positive opening safety contacts ensure secure emergency stop activation. Reset button allows controlled restart of machinery to enhance safety. The device features a robust design with long mechanical life suitable for industrial use.

Certified for hazardous environments with ATEX compliance. Explore more industrial safety switches and sensors at EnvMart for optimized workplace safety solutions.
