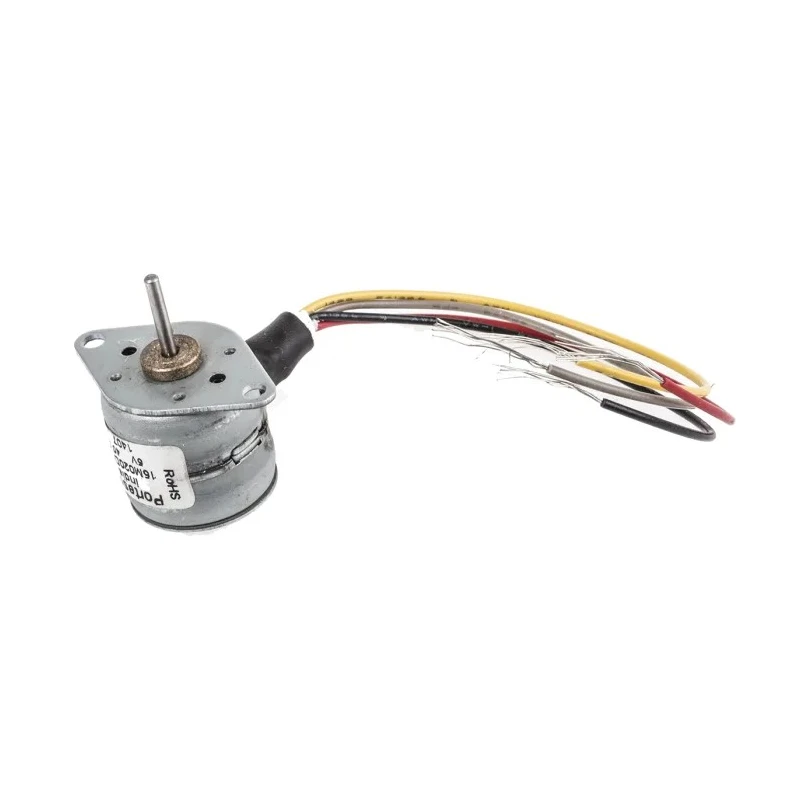

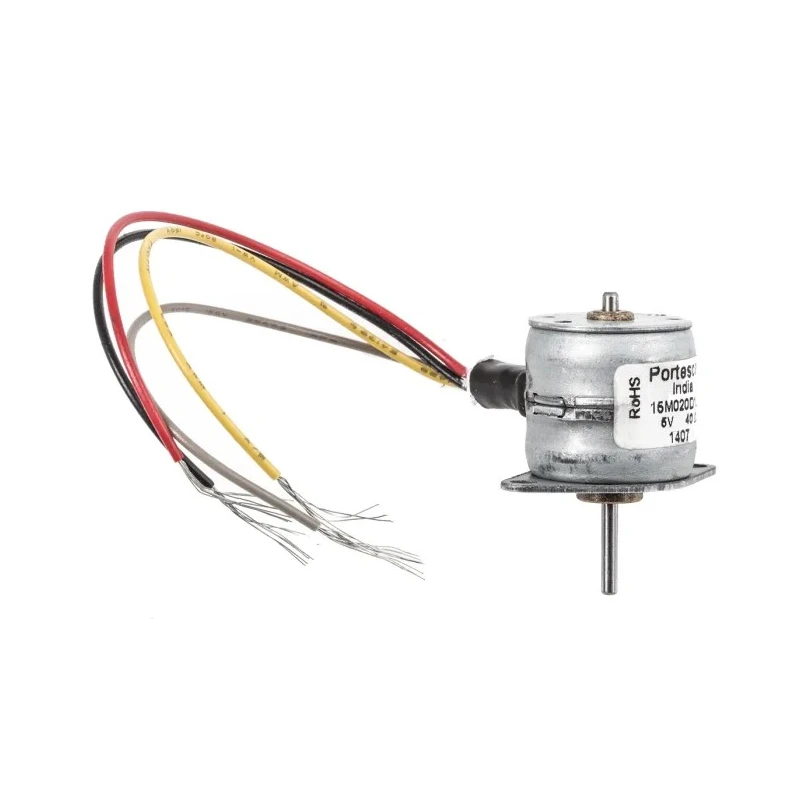

McLennan Servo Supplies Permanent Magnet Stepper Motor 5V, 3.9mNm Holding Torque, 18° Step Angle, 1.5mm Shaft 15M020D-1B

McLennan Servo Supplies 15M020D-1B Permanent Magnet Stepper Motor operates at 5V and delivers a holding torque of 3.9mNm. This stepper motor features an 18° step angle and a bipolar winding arrangement, providing reliable and precise motion control.

With a 1.5mm diameter shaft and 8.5mm shaft length, it is designed for compact installations. The motor has a current rating of 125mA and a resistance of 40Ω per phase, ensuring efficient electrical performance.

This motor has a compact depth of 15.11mm and includes 2 pole pairs, which contributes to its stable torque output. The Series M of McLennan permanent magnet stepper motors is engineered for applications that require moderate torque and reasonable accuracy, making it well-suited for automation, robotics, and precision control scenarios.

These motors are optimized for large volume production, balancing performance with simplicity and cost-effectiveness. Although no formal industry standards or certifications are attached, the motor is widely used in electric motor and control applications.

The motor's bipolar winding arrangement allows for smooth torque delivery. An 18° step angle enables controlled rotational increments. Shaft specifications ensure compatibility with various mechanical assemblies. Current and resistance ratings support stable electrical operation.

Compact size allows integration in constrained spaces. Designed to meet the needs of industrial and automation equipment. Explore additional McLennan Servo Supplies Stepper Motor models for various torque and frame size requirements in the Motors & Pumps category at EnvMart.
