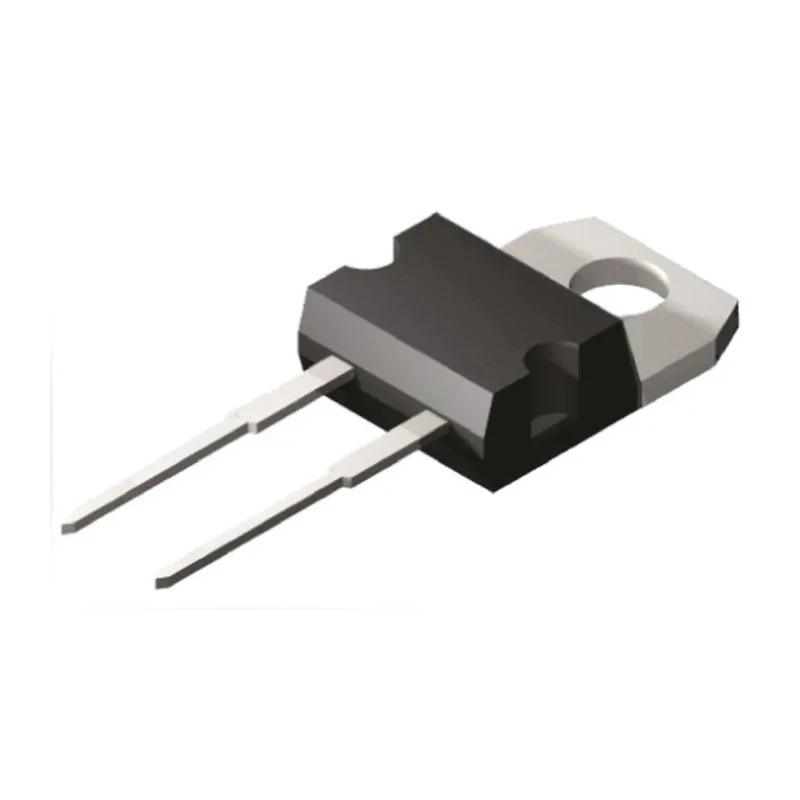

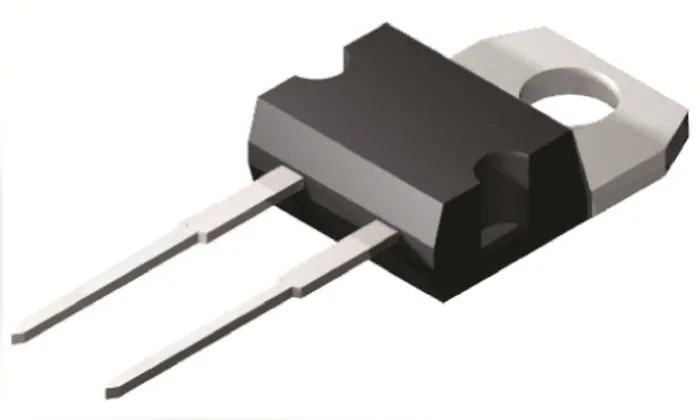

Vishay 45 V 20 A Schottky Diode 2-Pin TO-220AC VT2045BP-M3/4W
Specifications
| Country of Origin | China |
|---|---|
| Brand | Vishay |
| Height | 15.32mm |
| Length | 10.54mm |
| Model | VT2045BP-M3/4W |
| Width | 4.7mm |
| Mount Type | Through Hole |
| Series | VTX |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-220AC |
| Minimum Operating Temperature | -40°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 20A |
| Peak Reverse Repetitive Voltage Vrrm | 45V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 30mA |
| Maximum Forward Voltage Vf | 630mV |
Key Features
- This diode supports a maximum continuous forward current of 20 A.
- It has a peak reverse repetitive voltage rating of 45 V.
- The forward voltage drop is low at 630 mV for improved efficiency.
- Operating temperature ranges from -40°C to 150°C, suitable for harsh environments.
- The diode features a patented trench MOS barrier Schottky (TMBS) structure.
- It is packaged in a TO-220AC through-hole mount package for easy installation.
- Peak reverse current is limited to 30 mA for stable operation.
- The product is manufactured in China and complies with no specific approvals or automotive standards.
Product Description
Vishay VT2045BP-M3/4W Schottky Diode is a high-performance 2-pin device with a maximum continuous forward current of 20 A and a peak reverse repetitive voltage of 45 V. Packaged in a TO-220AC through-hole mount package, it features a patented trench MOS barrier structure that enhances switching speeds and reduces stored charges.
This diode offers a low forward voltage drop of 630 mV, making it highly efficient for power supply and conversion applications. It operates reliably over a wide temperature range from -40°C to 150°C, suitable for industrial and commercial electronic uses.
The diode's compact physical dimensions - 4.7 mm width, 10.54 mm length, and 15.32 mm height - allow for easy integration into existing circuit designs. Peak reverse current is minimal at 30 mA, ensuring stable electrical performance.
The TMBS series technology employed by Vishay addresses the limitations of planar Schottky rectifiers by minimizing minority carrier injection, boosting efficiency in AC/DC switched mode power supplies and DC/DC converters. This makes the diode ideal for use in industrial power supply circuits, telecommunications equipment, and other electronic products requiring high switching speeds and low power loss.
Manufactured in China, this product does not carry specific approvals or automotive standards but delivers trusted performance for general semiconductor applications. This diode supports a maximum continuous forward current of 20 A.
It has a peak reverse repetitive voltage rating of 45 V. Low forward voltage drop of 630 mV ensures efficiency. Operating temperature ranges from -40°C to 150°C. Patented TMBS trench structure boosts switching speed. TO-220AC package designed for through hole mounting.
Peak reverse current is 30 mA. Compact dimensions of 4.7 x 10.54 x 15.32 mm enable design flexibility. Manufactured in China. Ideal for use in AC/DC switched mode power supplies and DC/DC converters. Explore more semiconductor and diode solutions on EnvMart to meet your industrial and electronic component needs.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this diode is 20 A.
The peak reverse repetitive voltage rating is 45 V.
The forward voltage drop is 630 mV, which contributes to its efficiency.
It operates over a temperature range from -40°C to 150°C.
This diode is packaged in a TO-220AC through-hole mount package.
The dimensions are 4.7 mm in width, 10.54 mm in length, and 15.32 mm in height.
The peak reverse current is limited to 30 mA.
This model features a single diode configuration.
This diode is a Schottky rectifier.
It utilizes a patented trench MOS barrier Schottky (TMBS) structure to enhance switching speeds and reduce stored charges.
This diode is ideal for use in AC/DC switched mode power supplies and DC/DC converters.
This diode is manufactured in China.
