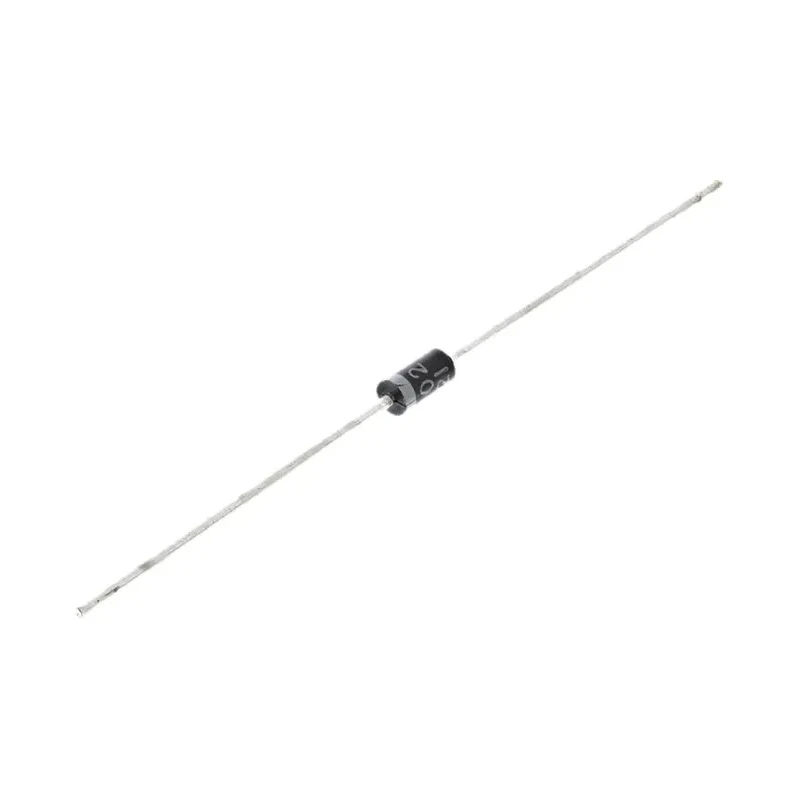

onsemi 100 V 1 A Fast Recovery Diode 2-Pin DO-41 UF4002
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 2.72mm |
| Brand | onsemi |
| Length | 5.2mm |
| Model | UF4002 |
| Mount Type | Through Hole |
| Series | UF4002 |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-41 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 1A |
| Peak Reverse Repetitive Voltage Vrrm | 100V |
| Diode Configuration | Single |
| Rectifier Type | Fast Recovery |
| Peak Reverse Current Ir | 50μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 30A |
| Maximum Forward Voltage Vf | 1V |
| Peak Reverse Recovery Time trr | 50ns |
Key Features
- This diode supports a maximum continuous forward current of 1 A.
- The peak reverse repetitive voltage is rated at 100 V.
- It features a low forward voltage drop of 1 V.
- The device offers a fast reverse recovery time of 50 ns, ideal for high-speed switching.
- Operating temperatures range from -65°C to 150°C for reliability in diverse conditions.
- Constructed as a single configuration fast recovery rectifier with glass passivation.
- Compact plastic DO-41 package with dimensions of length 5.2 mm and diameter 2.72 mm.
- The diode has a peak non-repetitive forward surge current of 30 A.
Product Description
The onsemi UF4002 is a fast recovery diode operating at 100 V maximum reverse voltage and a continuous forward current of 1 A, housed in a 2-pin DO-41 through-hole plastic package. This single diode configuration is engineered with glass passivated junction technology, providing enhanced reverse voltage resistance and reduced leakage currents. The low forward voltage drop of 1 V ensures energy-efficient operation, making it ideal for power rectification and switching applications.
Featuring a reverse recovery time of 50 ns, the UF4002 facilitates fast switching speeds necessary for modern electronic circuits. Its robust thermal range from -65°C to 150°C makes it suitable for use in demanding industrial, automotive, and consumer electronics environments requiring reliable performance under varying temperatures.
The compact DO-41 package measures 5.2 mm in length with a diameter of 2.72 mm, facilitating easy mounting on through-hole PCBs. The diode can withstand peak surge currents up to 30 A, ensuring resilience during transient load conditions. Its construction as a fast recovery rectifier provides efficient switching with low power losses.
Applications include rectification in power supplies, inverters, freewheeling diodes in motor drives, and other electrical and electronic circuits requiring fast switching diodes. The diode’s characteristics support usage in industrial power electronics, instrumentation, and general semiconductor uses.
This diode supports a maximum continuous forward current of 1 A. The peak reverse repetitive voltage is rated at 100 V. It features a low forward voltage drop of 1 V. The device offers a fast reverse recovery time of 50 ns, ideal for high-speed switching.
Operating temperatures range from -65°C to 150°C for reliability in diverse conditions. Constructed as a single configuration fast recovery rectifier with glass passivation. Compact plastic DO-41 package with dimensions of length 5.2 mm and diameter 2.72 mm.
The diode has a peak non-repetitive forward surge current of 30 A. Designed for general-purpose applications requiring efficient power rectification. Explore more semiconductor components and fast recovery diodes at EnvMart for your advanced industrial and commercial electronic design needs.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The UF4002 diode supports a maximum continuous forward current of 1 A.
The peak reverse repetitive voltage for the UF4002 is rated at 100 V.
It features a low forward voltage drop of 1 V.
The diode offers a fast reverse recovery time of 50 ns, making it suitable for high-speed switching applications.
This diode operates within a temperature range of -65°C to 150°C.
The UF4002 is housed in a compact DO-41 package, measuring 5.2 mm in length and 2.72 mm in diameter.
The diode can withstand a peak non-repetitive forward surge current of 30 A.
It is constructed as a single configuration fast recovery rectifier with glass passivation.
The peak reverse current for this diode is rated at 50 μA.
This model uses a through-hole mounting type.
The UF4002 is suitable for applications such as rectification in power supplies, inverters, and freewheeling diodes in motor drives.
The UF4002 diode is manufactured in India.
