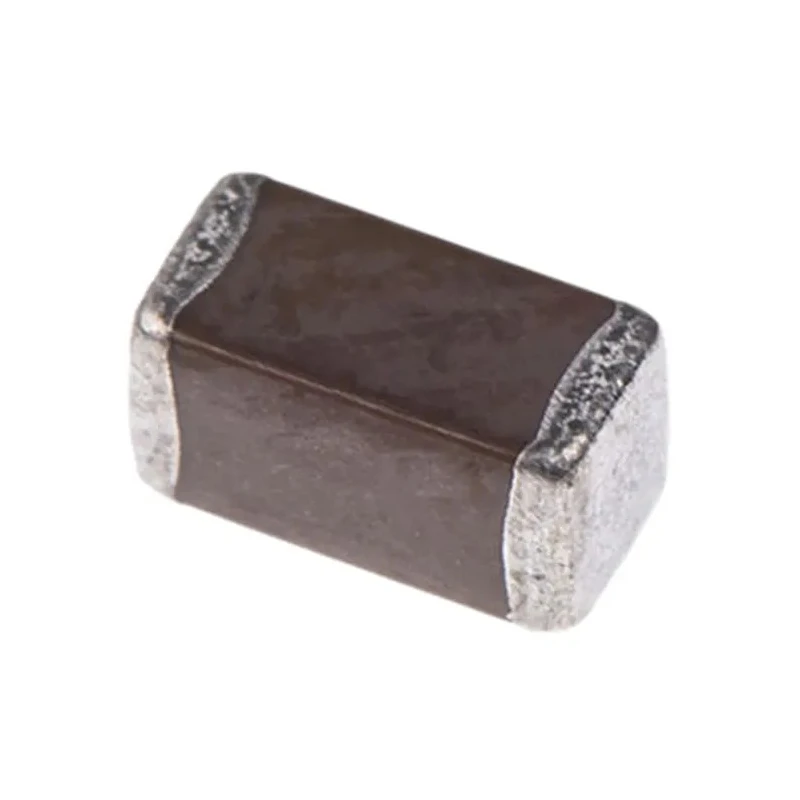

TDK 4.7 pF 50V DC Multilayer Ceramic Capacitor, C0G Dielectric, 0603 Surface Mount CGA3E2C0G1H4R7C080AA

Free Delivery in India | Lowest Global Shipping Charges

TDK 4.7 pF 50V DC Multilayer Ceramic Capacitor, C0G Dielectric, 0603 Surface Mount CGA3E2C0G1H4R7C080AA



Category Multilayer Ceramic Capacitors Brand TDK Condition New

Specifications

Country of Origin	India
Voltage	50V dc
Brand	TDK
Height	0.8mm
Length	1.6mm
Model	CGA3E2C0G1H4R7C080AA
Packaging	Tape & Reel
Width	0.8mm
Mount Type	Surface
Series	CGA
Termination Type	Surface Mount
Maximum Operating Temperature	125°C
Tolerance	0.25 pF
Capacitance	4.7pF
Minimum Operating Temperature	-55°C
Standards/Approvals	RoHS
Package/Case	0603
Dielectric	C0G
Automotive Standard	AEC-Q200

Key Features

Uses high-stability C0G dielectric for excellent frequency characteristics.
Dimensioned in compact 0603 package, suitable for automated assembly.
Operating temperature range from -55°C up to 125°C ensures wide environmental usability.
Low equivalent series resistance and inductance reduce power loss and self-heating.
Meets automotive standard AEC-Q200 for reliable automotive electronic applications.
Tape and reel packaging facilitates efficient manufacturing processing.
Surface mount termination providing compatibility with modern PCB layouts.
Ideal for battery line smoothing, sensor modules, and engine control units in automotive systems.

Product Description

TDK CGA3E2C0G1H4R7C080AA is a 4.7 pF multilayer ceramic capacitor rated at 50V DC voltage with a precision C0G dielectric in a compact 0603 surface mount package. Designed using advanced multilayer ceramic technology, this capacitor features excellent frequency stability and low loss characteristics.

The product exhibits low equivalent series resistance (ESR) and equivalent series inductance (ESL), contributing to reduced self-heating and superior ripple resistance. With its robust mechanical strength and reliable manufacturing process, it ensures consistent performance in demanding environments.

Operating temperature ranges from -55°C up to 125°C, making it suitable for automotive and industrial electronics. The capacitor is AEC-Q200 qualified, ensuring adherence to automotive industry standards for quality and reliability.

Tape and reel packaging supports streamlined surface mount technology (SMT) assembly lines, promoting enhanced production efficiency. Typical applications include automotive battery line smoothing, sensor modules, engine control units, anti-lock braking systems, and infotainment systems. Additional industrial uses encompass smart meters, solar inverters, AC-DC battery chargers, and transportation control systems.

High heat resistance and mechanical robustness. Guaranteed performance through a mature manufacturing process. Low stray capacitance and high accuracy for sensitive electronic circuits. Wide application range in automotive, industrial, and consumer electronics.

Supports automatic high-accuracy mounting techniques.

This capacitor is RoHS compliant ensuring environmental safety and regulatory conformance. TDK's CGA series is well-suited for use in precision electronics requiring stable capacitance under variable temperature conditions.
