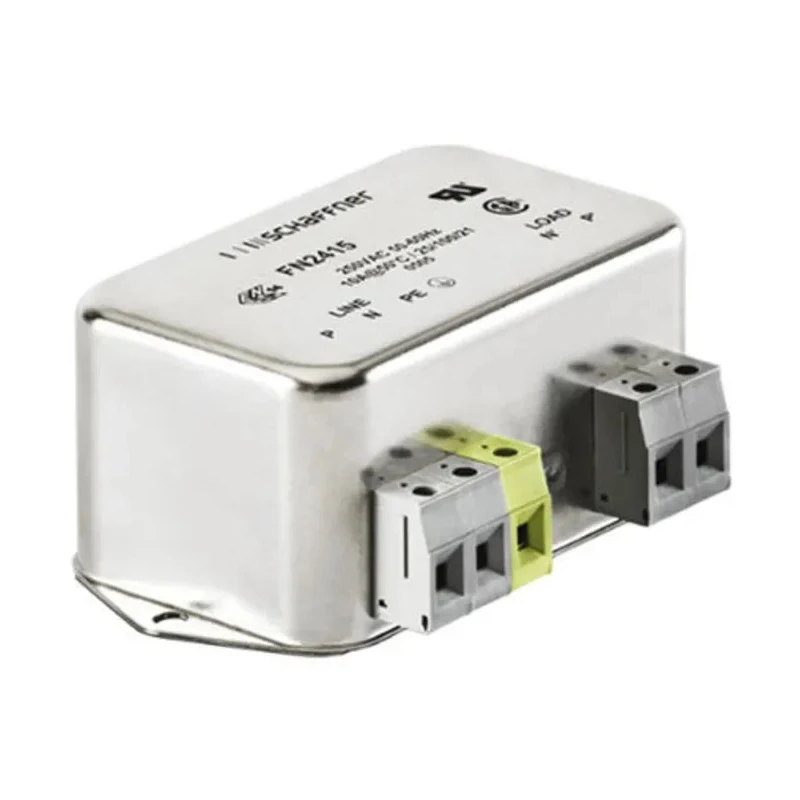

Schaffner Chassis Mount 1 Phase EMC Filter 16A 250V AC 60Hz Screw Termination FN2415
Specifications
| Country of Origin | Thailand |
|---|---|
| Brand | Schaffner |
| Height | 45.4mm |
| Length | 94mm |
| Model | FN2415 |
| Depth | 56mm |
| Mount Type | Chassis Mount |
| Operating Frequency | 60Hz |
| Series | FN2415 |
| Maximum Operating Temperature | 100°C |
| Number Of Stages | 2 |
| Resistance | 220kΩ |
| Capacitance | 100nF |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 16A |
| Number of Phases | 1 |
| Leakage Current | 9.4mA |
| Maximum Voltage | 250V ac |
| Inductance | 3mH |
| Termination Style | Screw |
| Power Loss | 4.3W |
Key Features
- Designed for chassis mounting with screw type termination for secure connection.
- Compact dimensions of 94mm length, 45.4mm height, and 56mm depth.
- Two-stage filter providing high attenuation for electromagnetic compatibility compliance.
- Operating temperature range from -25°C to 100°C suitable for industrial environments.
- Capacitance of 100nF and inductance of 3mH with leakage current of 9.4mA.
- Power loss limited to 4.3W ensuring efficient operation.
- Resistance value of 220kΩ contributes to effective filter performance.
- Ideal for industrial equipment, machinery, NC, CNC, PLC control systems and process automation.
Product Description
Schaffner FN2415 chassis mount EMC filter is engineered for single-phase power line applications requiring effective electromagnetic interference suppression at 16A maximum current and 250V AC voltage with a 60Hz operating frequency.
This filter series features a compact design, measuring 94mm in length, 45.4mm in height, and 56mm in depth, suitable for chassis mounting using secure screw terminations. The two-stage filter topology with 100nF capacitance and 3mH inductance provides high attenuation performance, minimizing internal electromagnetic interference and propagation.
Operating reliably within temperatures ranging from -25°C to 100°C, the FN2415 series is optimized for industrial machinery, process automation, and control units like NC, CNC, and PLCs. The leakage current of 9.4mA and power loss of 4.3W ensure efficient, safe electrical operation, while the 220kΩ resistance supports stable filter characteristics.
Manufactured in Thailand, the FN2415 filter contributes substantially to meeting EMI compliance standards and enhancing system immunity and reliability in demanding industrial environments.
Designed for chassis mounting with screw termination style. Compact 1 phase EMC filter with 16A maximum current rating. Two-stage filter with 100nF capacitance for effective interference suppression. Wide operating temperature range suitable for industrial applications.
Low power loss and controlled leakage current for efficiency and safety. Robust resistance and inductance parameters for superior EMI filtering. Compact size minimizes mounting space requirements in machinery. Ideal for use in industrial, manufacturing, process control, and automation systems.
Made in Thailand, ensuring high manufacturing standards and reliability.
This filter is a critical component in enhancing electromagnetic compatibility in electronic control and automation equipment. Browse the Electronics Components > EMC Filters category on EnvMart to explore more high-quality EMI filtering solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The FN2415 filter has a maximum current rating of 16A.
This model measures 94mm in length, 45.4mm in height, and 56mm in depth.
The FN2415 operates at a maximum voltage of 250V AC.
The capacitance of the FN2415 is 100nF.
It operates within a temperature range of -25°C to 100°C.
This filter features a screw termination style for secure connections.
The power loss for this filter is limited to 4.3W.
The inductance of this model is 3mH.
The leakage current for the FN2415 is 9.4mA.
It is ideal for industrial equipment, machinery, NC, CNC, PLC control systems, and process automation.
This filter uses a two-stage topology to provide high attenuation for electromagnetic interference.
The FN2415 is manufactured in Thailand.
