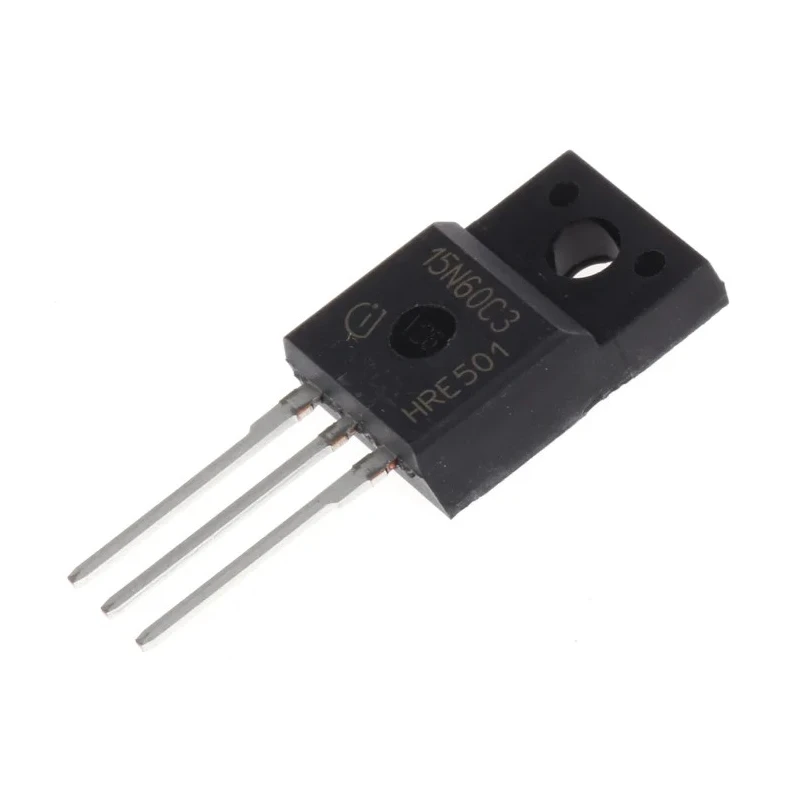

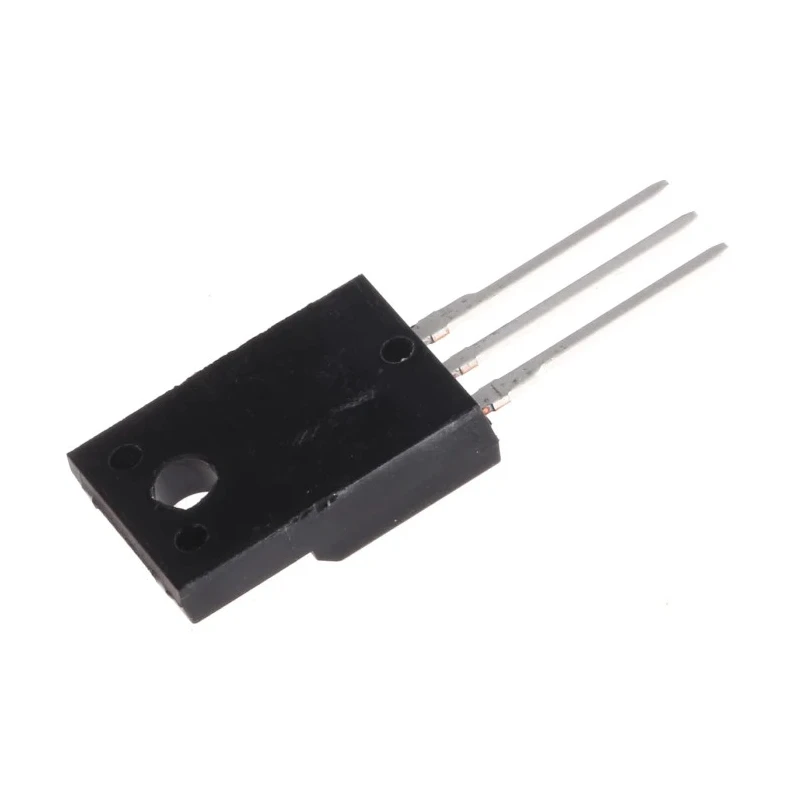

Infineon CoolMOS C3 N-Channel MOSFET, 15 A, 600 V Enhancement, 3-Pin TO-220FP SPA15N60C3XKSA1

Infineon SPA15N60C3XKSA1 is a CoolMOS C3 N-Channel MOSFET designed to provide efficient power switching for industrial and electronic applications. It supports a maximum continuous drain current of 15 A and withstands drain-source voltages up to 600 V in a 3-pin TO-220FP through-hole package.

This MOSFET is an enhancement-mode device featuring a low drain-source resistance (Rds) of 0.28 ohms, which minimizes conduction losses during operation. The device handles power dissipation of up to 156 W, making it suitable for medium power applications requiring reliable thermal performance.

The gate characteristics include a typical gate charge of 63 nC at Vgs of 10 V, enabling fast switching speeds for enhanced efficiency in power conversion circuits. With a gate-source voltage tolerance of -20 V to +20 V, the MOSFET offers robust gate control against voltage spikes.

Operating temperature ranges from -55°C to 150°C, ensuring stable functionality in harsh and variable industrial environments. The compact dimensions of the TO-220FP package (approximately 10.65 mm in length, 9.83 mm in height, and 4.85 mm in width) facilitate integration into diverse power electronics designs.

The CoolMOS C3 technology combines performance and cost-effectiveness for applications in power supplies, motor control, and inverter circuits. The TO-220FP package provides electrical isolation and efficient heat dissipation for enhanced device reliability.

This MOSFET is ideal for use in industrial automation, power management systems, renewable energy inverters, and motor drives. CoolMOS devices maintain high efficiency while improving power density and system cost savings.

Infineon delivers globally recognized quality and robust manufacturing standards for semiconductor devices. Discover more products in the MOSFET category for advanced semiconductor components from Infineon at EnvMart, your solution partner in electronic components.
