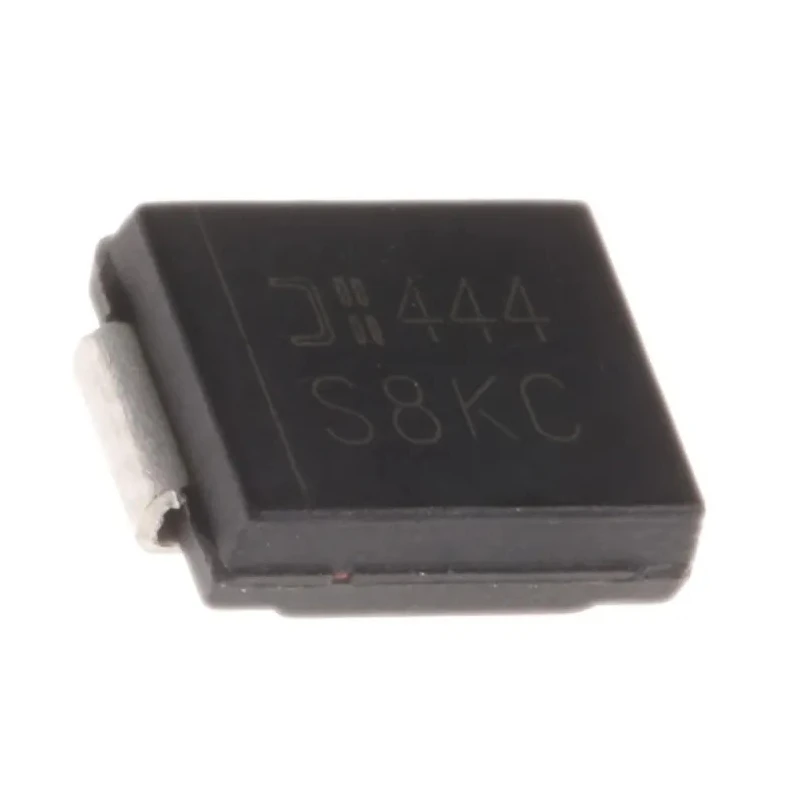

DiodesZetex Surface Mount General Purpose Schottky Diode 800 V 8 A DO-214AB S8KC-13

Free Delivery in India | Lowest Global Shipping Charges

DiodesZetex Surface Mount General Purpose Schottky Diode 800 V 8 A DO-214AB S8KC-13

Name: DiodesZetex Surface Mount General Purpose Schottky Diode 800 V 8 A DO-214AB S8KC-13
Brand: DiodesZetex
SKU: 129714
Price: 0.47 USD
Availability: InStock



Category Schottky Diodes & Rectifiers Brand DiodesZetex Condition New

Specifications

Country of Origin	China
Brand	DiodesZetex
Height	2.42mm
Length	7.11mm
Model	S8KC-13
Width	6.22mm
Mount Type	Surface
Series	S8KC
Maximum Operating Temperature	150°C
Package Type	DO-214AB (SMC)
Minimum Operating Temperature	-65°C
Pin Count	2
Maximum Continuous Forward Current If	8A
Peak Reverse Repetitive Voltage Vrrm	800V
Diode Configuration	Single
Rectifier Type	General Purpose
Peak Reverse Current Ir	250μA
Peak Non-Repetitive Forward Surge Current Ifsm	200A
Maximum Forward Voltage Vf	985mV
Peak Reverse Recovery Time trr	2700ns

Key Features

Maximum continuous forward current of 8 amperes ensures reliable current handling.
Peak reverse repetitive voltage of 800 volts for high voltage protection.
Low forward voltage drop around 985 millivolts improves efficiency.
Compact dimensions of 7.11 mm length, 6.22 mm width, and 2.42 mm height suitable for surface mount applications.
Wide operating temperature range from -65°C to 150°C for robust industrial use.
Fast peak reverse recovery time of 2700 nanoseconds for improved switching performance.
Single diode configuration with 2 pins supports standard mounting in circuits.
Suitable for applications in power electronics, rectification, and switching.

Product Description

DiodesZetex S8KC-13 is a surface mount general purpose Schottky diode designed for power and electronic applications requiring high reliability and fast switching.

This diode supports a maximum continuous forward current of 8 A and a peak reverse repetitive voltage of 800 V, making it suitable for high voltage rectification and protection tasks. The DO-214AB (SMC) package type provides a compact surface mount form factor with precise dimensions of 7.11 mm length, 6.22 mm width, and 2.42 mm height.

The diode offers a low forward voltage of 985 mV and a peak reverse recovery time of 2700 ns, enabling efficient and fast performance in circuits such as power supplies, inverters, and switching regulators. Its electrical specifications including a peak non-repetitive forward surge current of 200 A, and a peak reverse current of 250 μA enhance robustness under transient conditions.

Operating reliably within a temperature range from -65°C to 150°C, the S8KC-13 diode is designed to meet the demands of industrial, construction, HVAC, and manufacturing electronic assemblies requiring semiconductors with general purpose rectifying functions.

Though it has no automotive standards or certifications, this diode fulfills typical industrial semiconductor requirements. It is manufactured in China, offered new for immediate deployment in professional and advanced electronics projects needing dependable diode rectifiers.

Maximum continuous forward current of 8 amperes ensures reliable current handling. Peak reverse repetitive voltage of 800 volts for high voltage protection. Low forward voltage drop around 985 millivolts improves efficiency.

Compact dimensions of 7.11 mm length, 6.22 mm width, and 2.42 mm height suitable for surface mount applications. Wide operating temperature range from -65°C to 150°C for robust industrial use. Fast peak reverse recovery time of 2700 nanoseconds for improved switching performance.

Single diode configuration with 2 pins supports standard mounting in circuits. Suitable for applications in power electronics, rectification, and switching. Manufactured in China with new product condition compliance. Check the Schottky Diodes & Rectifiers category on EnvMart for more industrial-grade semiconductor components.

Explore more products in our Schottky Diodes & Rectifiers category.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The maximum continuous forward current of this diode is 8 amperes, ensuring reliable current handling in various applications.

This model has a peak reverse repetitive voltage rating of 800 volts, making it suitable for high voltage protection tasks.

The dimensions of the S8KC-13 diode are 7.11 mm in length, 6.22 mm in width, and 2.42 mm in height, which are suitable for surface mount applications.

The diode has a low forward voltage drop of approximately 985 millivolts, which improves efficiency in circuits.

The peak reverse recovery time for this diode is 2700 nanoseconds, enhancing its switching performance.

This diode operates reliably within a temperature range of -65°C to 150°C, making it suitable for robust industrial use.

The S8KC-13 diode features a single diode configuration with 2 pins, supporting standard mounting in circuits.

The peak non-repetitive forward surge current rating for this diode is 200 amperes, providing robustness under transient conditions.

The peak reverse current for the S8KC-13 diode is 250 microamperes, which supports its performance in various applications.

This diode uses a DO-214AB (SMC) package type, which provides a compact surface mount form factor.

The S8KC-13 diode is suitable for applications in power electronics, rectification, and switching.

This diode is manufactured in China, ensuring compliance with typical industrial semiconductor requirements.
