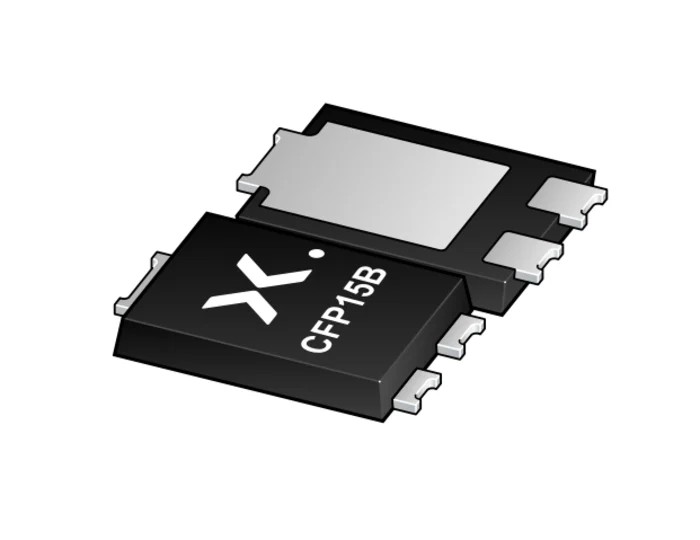

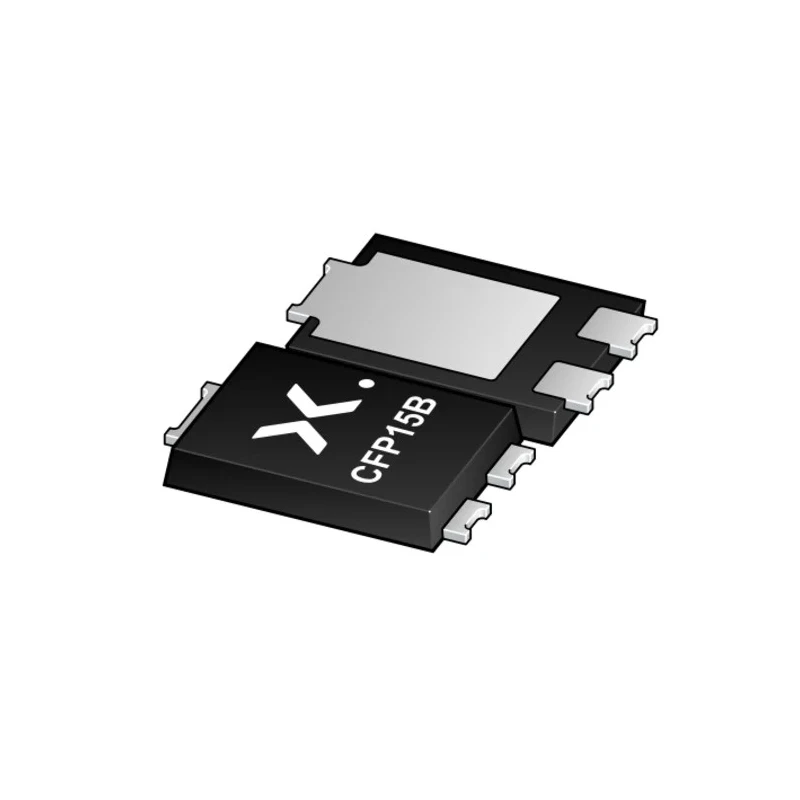

Nexperia 200 V 2 A Dual Common Cathode Hyperfast Recovery Rectifier CFP15B Surface Mount PNE20040CPEZ
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 0.95mm |
| Model | PNE20040CPEZ |
| Mount Type | Surface |
| Series | PNE20040CPE |
| Maximum Operating Temperature | 175°C |
| Package Type | CFP15B |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Pin Count | 3 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 2A |
| Peak Reverse Repetitive Voltage Vrrm | 200V |
| Diode Configuration | Dual Common Cathode |
| Rectifier Type | Hyperfast Switching |
| Peak Reverse Current Ir | 1μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 100A |
| Maximum Forward Voltage Vf | 980mV |
| Peak Reverse Recovery Time trr | 25ns |
Key Features
- Features hyperfast switching for efficient diode recovery performance.
- Configured as a dual diode with common cathode arrangement.
- Compact surface mount CFP15B package with 0.95 mm height ensures low profile installation.
- Operates reliably within temperature range of -55°C to 175°C.
- Capable of handling peak forward surge current of 100 A.
- Includes automotive AEC-Q101 qualification for reliable use in automotive applications.
- Offers low maximum forward voltage of 980 mV to minimize power loss.
- Designed with planar die technology and clip-bond for high power capability.
Product Description
Nexperia PNE20040CPEZ dual common cathode hyperfast recovery rectifier is a surface mounted power semiconductor device designed for efficient rectification and high-speed switching applications. Rated for a peak reverse voltage of 200 V and a maximum continuous forward current of 2 A per diode, it features a CFP15B plastic package with a low profile height of 0.95 mm.
This rectifier utilizes high-efficiency planar technology with clip-bond clip bonding to achieve robust power handling and a low forward voltage drop of 980 mV. The device exhibits a peak reverse recovery time of 25 ns, enabling fast switching and minimizing switching losses. Its peak non-repetitive forward surge current capacity reaches 100 A, providing resilience against transient overloads.
Operating temperature range spans from -55°C to 175°C, meeting stringent automotive qualification under AEC-Q101 standards. RoHS compliance ensures it meets global environmental directives.
Applications for the Nexperia PNE20040CPEZ include general-purpose rectification tasks, solenoid control circuits, piezo injection systems, and freewheeling diode functions in power electronics. Its dual diode common cathode configuration simplifies design integration in circuits requiring complementary diode arrangements.
Hyperfast switching performance with 25 ns recovery time. Dual diode common cathode design for versatile rectification. Compact CFP15B surface mount package for space-saving PCB layout. Wide operating temperature range suitable for industrial and automotive use.
High surge current capacity ensures durability under transient conditions. Planar die and clip bond technology enhance power efficiency. Compliance with automotive AEC-Q101 and RoHS standards. Low forward voltage reduces system power loss.
Ideal for varied applications including solenoid and piezo control. Explore comprehensive semiconductor products and find more diode solutions at EnvMart for your industrial and electronic component needs.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak reverse voltage rating of this rectifier is 200 V.
It has a maximum continuous forward current rating of 2 A per diode.
The height of the CFP15B package is 0.95 mm, allowing for low profile installation.
This rectifier operates reliably within a temperature range of -55°C to 175°C.
The peak non-repetitive forward surge current capacity is 100 A.
The maximum forward voltage drop is 980 mV, which helps minimize power loss.
The peak reverse recovery time is 25 ns, enabling fast switching performance.
It complies with the automotive AEC-Q101 qualification, ensuring reliability in automotive applications.
Yes, this rectifier is RoHS compliant, meeting global environmental directives.
It features a dual common cathode diode configuration for versatile rectification.
This model utilizes surface mounting, which is suitable for compact PCB layouts.
It is suitable for general-purpose rectification, solenoid control circuits, and piezo injection systems among others.
