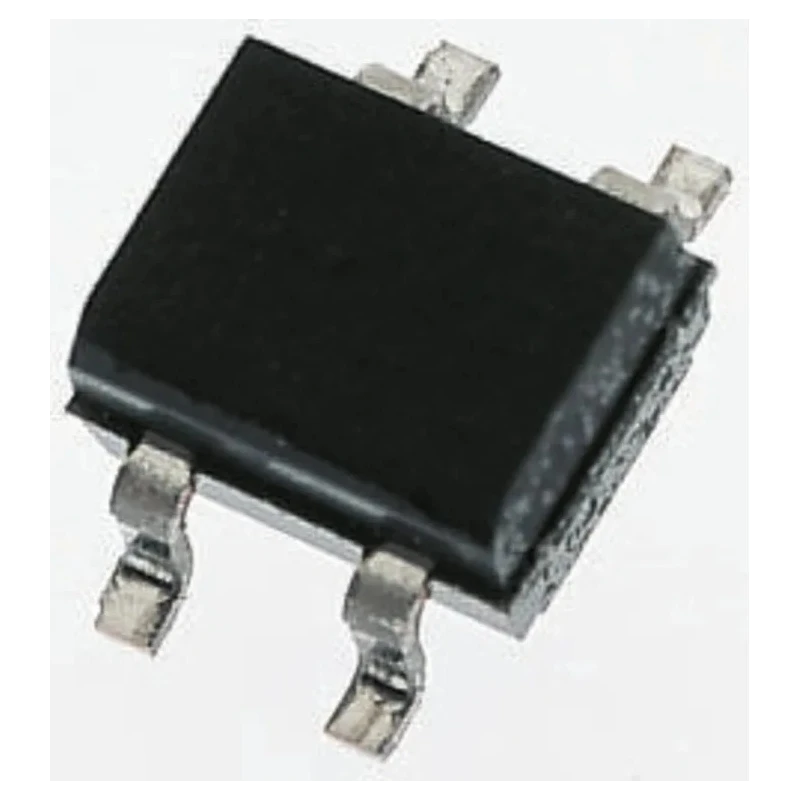

DiodesZetex Bridge Rectifier 400 V 30 A, 4-Pin Mini-DIP Surface Mount HD04-T

DiodesZetex HD04-T Bridge Rectifier is a compact, surface mount 4-pin Mini-DIP semiconductor device designed to convert alternating current (AC) input into direct current (DC) output with high efficiency and reliability. Rated for a peak reverse repetitive voltage of 400 V and a peak non-repetitive forward surge current of 30 A, it offers robust performance in demanding industrial, automotive, and power electronic applications.

Supporting a continuous forward current of 800 mA, this single-phase bridge rectifier functions reliably over a wide temperature range from -55°C to 150°C. The device features a low peak forward voltage drop of 1 V to minimize power loss, and it maintains a low peak reverse leakage current of 500 μA to improve overall circuit performance.

Measuring only 4.9 mm in length, 4 mm in width, and 2.7 mm in height, the HD04-T model is optimized for automated PCB assembly, facilitating scalable manufacturing while saving board space. Its compliance with the stringent automotive standard AEC-Q100 ensures dependable operation in the automotive sector where quality and durability are critical.

This bridge rectifier is well-suited for power supply rectification, industrial automation, electronic manufacturing, automotive electronics, HVAC controls, and laboratory instrumentation where precise AC to DC conversion is vital. The Mini-DIP surface mounting package enhances integration into modern PCB layouts for various power electronic designs.

This bridge rectifier is designed for surface mounting on PCB boards. It supports a maximum forward current of 800 mA and operates within -55°C to 150°C temperature range. The low forward voltage drop of 1 V enhances efficiency in power conversion applications.

Compact size with dimensions 4.9 mm length, 4 mm width, and 2.7 mm height enables automated assembly. Complies with automotive standard AEC-Q100 for reliable performance in automotive electronics. Configuration is single-phase with a 4-pin layout suitable for discrete semiconductor applications.

Peak reverse current is minimal at 500 μA ensuring low leakage during operation. Manufactured in China, ideal for use in industrial and electronics manufacturing environments. The product package is suitable for efficient machinery insertion and production line automation.

Applications include power supply boards, rectification circuits, and industrial power electronics. Explore more high-quality semiconductors and Bridge Rectifiers in the Electronics & Electricals category on EnvMart for diverse industrial and commercial applications.
