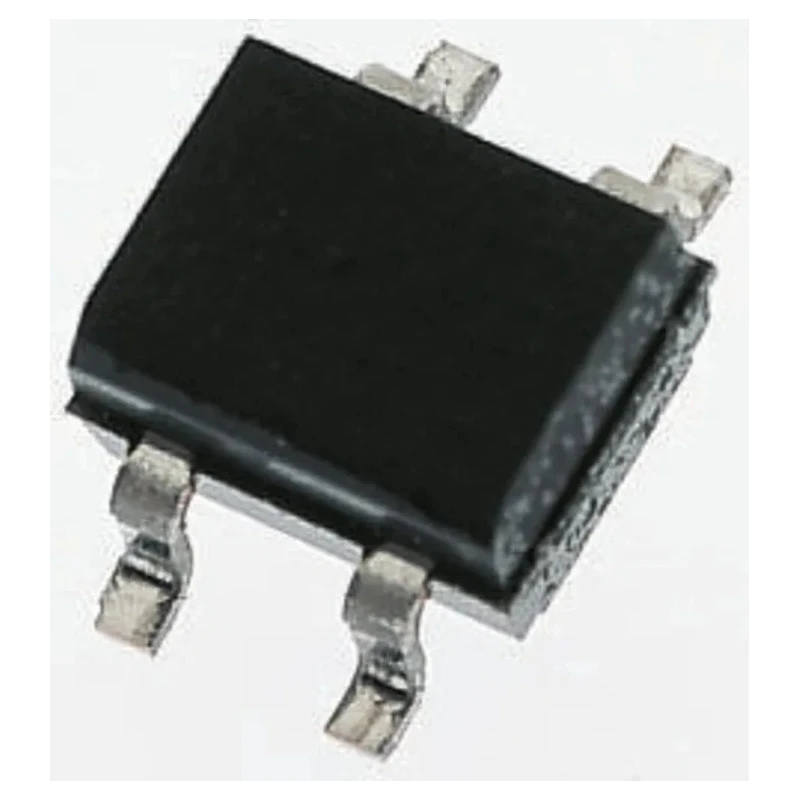

DiodesZetex PCB Surface Mount Bridge Rectifier 600 V 1.5 A 4-Pin Single DF1506S-T
Specifications
| Country of Origin | China |
|---|---|
| Brand | DiodesZetex |
| Height | 2.6mm |
| Length | 8.51mm |
| Model | DF1506S-T |
| Width | 6.5mm |
| Mount Type | Surface |
| Series | DF-S |
| Configuration | Single |
| Maximum Operating Temperature | 150°C |
| Package Type | DFS |
| Minimum Operating Temperature | -65°C |
| Number of Phases | 1 |
| Pin Count | 4 |
| Peak Reverse Repetitive Voltage Vrrm | 600V |
| Peak Reverse Current Ir | 500μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 50A |
| Forward Current If | 1.5A |
| Peak Forward Voltage Vf | 1.1V |
Key Features
- Provides reliable conversion of AC to DC with low forward voltage drop.
- Operates at maximum temperature up to 150°C ensuring long-term durability.
- Equipped with glass passivated die construction for high efficiency.
- Peak non-repetitive forward surge current of 50 A supports transient conditions.
- Suitable for PCB mounting with DFS package type.
- Wide operating temperature range from -65°C to 150°C.
- Peak reverse repetitive voltage rating of 600 V for robust reverse polarity protection.
- Designed to minimize peak forward voltage of 1.1 V for efficient conduction.
Product Description
DiodesZetex DF1506S-T is a high-performance bridge rectifier designed for surface mounting on printed circuit boards. It features a 600 V peak reverse repetitive voltage and a maximum forward current of 1.5 A, making it ideal for converting alternating current (AC) input into a regulated direct current (DC) output.
This rectifier employs glass passivated die construction to ensure low forward voltage drop and enhanced reliability under diverse circuit conditions. Its compact DFS package measures 8.51 mm in length, 6.5 mm in width, and 2.6 mm in height, enabling efficient use of PCB space for various electronic applications.
Engineered to operate continuously in temperatures ranging from -65°C to 150°C, the DF1506S-T supports demanding industrial environments and temperature variations. It offers a peak non-repetitive forward surge current of 50 A to handle temporary high current demands without performance degradation.
The device configuration consists of a single-phase, 4-pin Bridge Rectifier that delivers consistent DC polarity output regardless of AC input polarity. This makes it a versatile and essential component in power supply and conversion circuits within industrial, electronics manufacturing, and power control applications.
Reliable AC to DC conversion with low forward voltage drop. High surge current capability for transient conditions. Glass passivated die for enhanced device robustness. Compact surface mount device for efficient PCB integration.
Wide operating temperature range ensures application versatility. Optimized for use in industrial electronics and power systems. Ensures stable output under fluctuating input conditions. Designed for use in semiconductors and discrete electronic circuits.
This product is manufactured in China and meets the UL file E94661 standards. Suitable for electronics, semiconductors, power converter, and industrial automation industries. Explore more DiodesZetex semiconductor components in the EnvMart catalog.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum forward current of this bridge rectifier is 1.5 A.
It has a peak reverse repetitive voltage rating of 600 V, providing robust reverse polarity protection.
The operating temperature range for the DF1506S-T is from -65°C to 150°C, making it suitable for various industrial environments.
This unit can handle a peak non-repetitive forward surge current of 50 A, accommodating temporary high current demands.
The dimensions of this bridge rectifier are 8.51 mm in length, 6.5 mm in width, and 2.6 mm in height.
It features a 4-pin configuration, suitable for surface mounting on PCBs.
The DF1506S-T uses a DFS package type, designed for efficient PCB integration.
It is designed to minimize the peak forward voltage drop to 1.1 V for efficient conduction.
This model is constructed with glass passivated die technology, enhancing its reliability and efficiency.
Yes, it is optimized for use in industrial electronics and power systems, providing stable output under varying input conditions.
This bridge rectifier is manufactured in China and meets UL file E94661 standards.
The DF1506S-T belongs to the DF-S series of bridge rectifiers.
