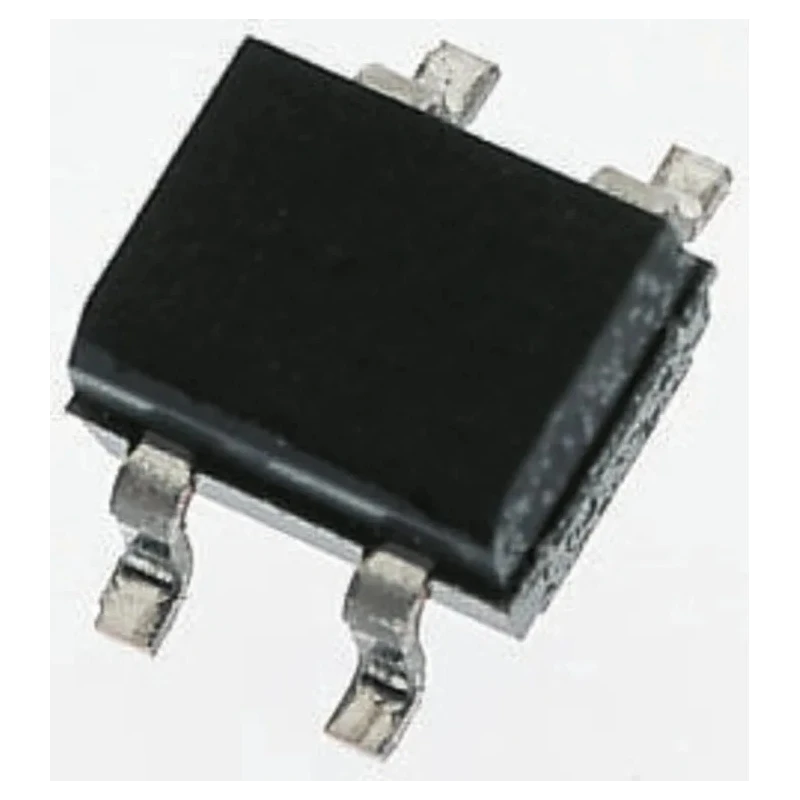

DiodesZetex Bridge Rectifier 100 V 50 A Surface Mount DFS Package 4-Pin Single DF01S-T
Specifications
| Country of Origin | China |
|---|---|
| Brand | DiodesZetex |
| Height | 2.6mm |
| Length | 8.51mm |
| Model | DF01S-T |
| Width | 6.5mm |
| Mount Type | Surface |
| Series | DF-S |
| Configuration | Single |
| Maximum Operating Temperature | 150°C |
| Package Type | DFS |
| Minimum Operating Temperature | -65°C |
| Number of Phases | 1 |
| Pin Count | 4 |
| Peak Reverse Repetitive Voltage Vrrm | 100V |
| Peak Reverse Current Ir | 500μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 50A |
| Forward Current If | 1A |
| Peak Forward Voltage Vf | 1.1V |
Key Features
- Operates at a maximum temperature of 150°C.
- Utilizes a DFS package with 4-pin single bridge configuration.
- Features a forward current rating of 1 A and low forward voltage drop of 1.1 V.
- Designed with glass passivated die construction for reliable electrical performance.
- Peak reverse current is minimal at 500 μA, enhancing efficiency.
- Suitable for converting AC input to DC output in various electronic and industrial applications.
- Operates reliably between -65°C and 150°C ambient temperatures.
Product Description
The DiodesZetex DF01S-T Bridge Rectifier is a high-performance surface mount electronic component designed for effective AC to DC power conversion. This single phase bridge rectifier operates with a peak reverse repetitive voltage of 100 V and supports a peak non-repetitive forward surge current of up to 50 A, making it suitable for demanding industrial and electronic applications.
Encased in a DFS package with a 4-pin single configuration, it offers reliable and durable performance within a broad temperature range from -65°C minimum to 150°C maximum operating temperature. Its compact dimensions of 8.51 mm length, 6.5 mm width, and 2.6 mm height allow easy integration on printed circuit boards.
Featuring a low forward voltage drop of 1.1 V and minimal peak reverse current of 500 μA, this bridge rectifier ensures efficient power handling and low thermal losses. The device is constructed using glass passivated die technology to enhance durability and electrical stability.
This component is suitable for industrial, electronic, and power supply applications where converting alternating current to direct current reliably is critical. It finds use in power management circuits, power supplies, and general electrical equipment requiring robust diode protection.
Operates between -65°C and 150°C ambient temperatures. DFS package with a surface mount configuration. Single phase, 4-pin bridge rectifier design. 1 A forward current with a surge capacity of 50 A maximum. Dimensions: 8.51 mm (L) x 6.5 mm (W) x 2.6 mm (H).
Glass passivated die construction for enhanced reliability. Low forward voltage drop of 1.1 V minimizes power loss. Peak reverse current limited to 500 μA for efficiency.
Choose the DiodesZetex DF01S-T Bridge Rectifier for reliable power conversion solutions in industrial electronics, embedded systems, and manufacturing equipment. Explore more semiconductor components in the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature of the DF01S-T bridge rectifier is 150°C.
This model has a peak reverse repetitive voltage rating of 100 V.
The forward current rating of the DF01S-T is 1 A.
The peak non-repetitive forward surge current for this bridge rectifier is up to 50 A.
The dimensions of the DF01S-T are 8.51 mm in length, 6.5 mm in width, and 2.6 mm in height.
The DF01S-T comes in a DFS package type with a surface mount configuration.
The peak reverse current for this model is limited to 500 μA.
The DF01S-T is constructed using glass passivated die technology for enhanced reliability.
The DF01S-T can operate reliably between -65°C and 150°C ambient temperatures.
The forward voltage drop of the DF01S-T is low at 1.1 V, which minimizes power loss.
The DF01S-T is suitable for industrial, electronic, and power supply applications requiring AC to DC conversion.
The DF01S-T bridge rectifier has 4 pins.
