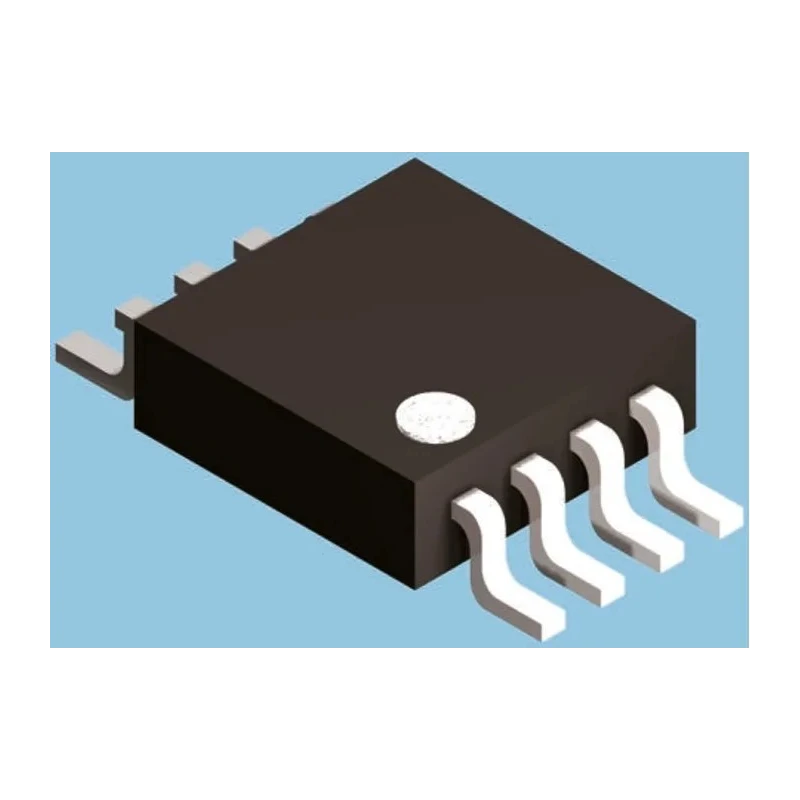

DiodesZetex Dual Channel High Side Power Switch IC 8-Pin SOP, 2.7-5.5V Supply, 500mA AP2156SG-13
Specifications
| Country of Origin | China |
|---|---|
| Brand | DiodesZetex |
| Height | 1.5mm |
| Length | 4.95mm |
| Model | AP2156SG-13 |
| Width | 3.95mm |
| Mount Type | Surface |
| Number of inputs | 1 |
| Series | AP2156 |
| Maximum Operating Temperature | 85°C |
| Package Type | SOP |
| Minimum Operating Temperature | -40°C |
| Operating Current | 500mA |
| Number of outputs | 2 |
| Pin Count | 8 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.7V |
| Switch On Resistance RdsOn | 135mΩ |
Key Features
- Dual channel high side power switch suitable for power management.
- Low switch on resistance of 135 milliohms ensures efficiency.
- Operating voltage range between 2.7V and 5.5V for flexible supply options.
- Maximum operating current rating of 500mA for moderate load handling.
- Surface mount 8-pin SOP package supports compact PCB designs.
- Operating temperature range from -40°C to 85°C for reliability in varied environments.
- Non-automotive grade device manufactured in China.
Product Description
DiodesZetex AP2156SG-13 is a dual channel high side power switch IC designed for efficient power management applications. It operates in a voltage range of 2.7V to 5.5V and supports a maximum current of 500mA, making it ideal for low-to-medium power electronic circuits.
The device features a low switch on resistance of 135 milliohms, which minimizes power loss and improves thermal performance. Its surface-mount 8-pin SOP package supports modern PCB assembly techniques, contributing to compact and reliable system designs.
Engineered to operate in temperatures from -40°C up to 85°C, the AP2156SG-13 offers robust performance for industrial, consumer electronics, and power management systems. Although it is not listed under automotive standards, its specifications suit a wide range of electronic control and switching applications.
The IC measures 4.95mm in length, 3.95mm in width, and 1.5mm in height, offering a small footprint for dense PCB layouts. This product is manufactured in China and supplied as a new, ready-to-use component, packaged on reels for automated insertion machines to improve production efficiency.
Dual channel high side switch for versatile power control. Low RdsOn of 135 milliohms for reduced conduction loss. Wide supply voltage supports multiple system voltages. Surface-mount 8-pin SOP package for compact applications.
Wide operating temperature range ensures reliability. Compact physical dimensions for space-constrained designs. Package supplied on reels for improved manufacturing efficiency.
This power switch IC is suitable for industrial, electronic components manufacturing, power management, semiconductor applications, and general electronics design and manufacturing industries. Explore more options in the Power Switch ICs category at EnvMart for your electronics projects and procurement needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The AP2156SG-13 operates within a voltage range of 2.7V to 5.5V.
This model has a maximum operating current rating of 500mA.
The switch on resistance (RdsOn) of this unit is 135 milliohms, which helps to minimize power loss.
It comes in a surface-mount 8-pin SOP package, suitable for compact PCB designs.
This power switch IC measures 4.95mm in length, 3.95mm in width, and 1.5mm in height.
The operating temperature range for the AP2156SG-13 is from -40°C to 85°C.
This model features two outputs, allowing for dual channel operation.
It is suitable for industrial, consumer electronics, and various power management applications.
The AP2156SG-13 is manufactured in China.
This power switch IC has a pin count of 8.
It belongs to the AP2156 series of power switch ICs.
This model supports surface mounting, making it suitable for modern PCB assembly techniques.
