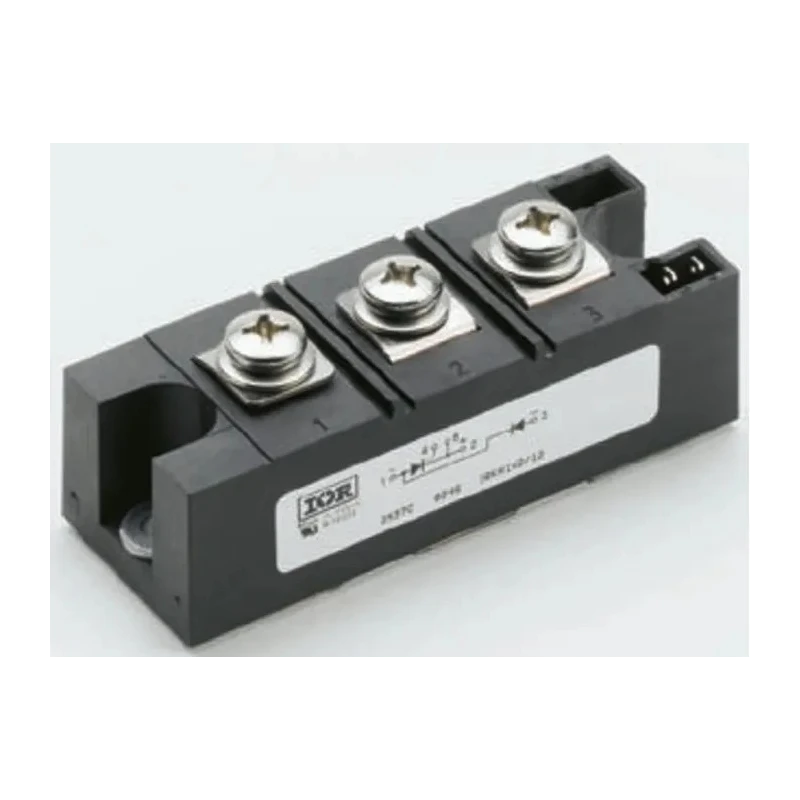

Vishay 600 V 435 A Recovery Diode 3-Pin INT-A-PAK VS-VSKCU300/06PBF
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 28mm |
| Length | 94mm |
| Model | VS-VSKCU300/06PBF |
| Width | 35mm |
| Mount Type | Panel |
| Series | VSX |
| Maximum Operating Temperature | 150°C |
| Package Type | INT-A-PAK |
| Minimum Operating Temperature | -40°C |
| Pin Count | 3 |
| Maximum Continuous Forward Current If | 435A |
| Peak Reverse Repetitive Voltage Vrrm | 600V |
| Diode Configuration | Common Cathode |
| Rectifier Type | Recovery |
| Peak Reverse Current Ir | 50mA |
| Maximum Forward Voltage Vf | 1.96V |
| Peak Reverse Recovery Time trr | 260ns |
Key Features
- Supports maximum continuous forward current of 435 amperes.
- Peak reverse repetitive voltage rating of 600 volts.
- Common cathode diode configuration for efficient switching.
- Peak reverse recovery time of 260 nanoseconds for ultrafast recovery.
- Maximum forward voltage of 1.96 volts ensuring low conduction losses.
- Operational temperature range from -40°C to 150°C for reliability.
- Compact dimensions measuring 94 mm length, 35 mm width, and 28 mm height.
- Designed for panel mounting with 3-pin INT-A-PAK package type.
Product Description
Vishay VS-VSKCU300/06PBF is a high-performance recovery diode designed for demanding power electronics applications. Rated at 600 V peak reverse repetitive voltage and capable of continuous forward current up to 435 A, this device offers robust electrical characteristics suited for industrial power rectification and switching.
The diode features a common cathode configuration within an INT-A-PAK 3-pin package, optimized for panel mounting and ease of integration into existing circuit boards. The ultrafast recovery time of 260 ns and low forward voltage drop of 1.96 V contribute to enhanced switching efficiency and reduced power dissipation, making it ideal for high-frequency applications.
Operating reliably in temperature ranges from -40°C to 150°C, the VS-VSKCU300/06PBF ensures performance stability across diverse environmental conditions. Its physical dimensions of 94 mm length, 35 mm width, and 28 mm height facilitate space-efficient designs in power electronics and semiconductor assemblies.
Its rugged design and reliable electrical properties make it a key component in electronic systems requiring efficient power rectification and recovery. Supports maximum continuous forward current of 435 amperes. Peak reverse repetitive voltage rating of 600 volts.
Common cathode diode configuration for efficient switching. Peak reverse recovery time of 260 nanoseconds for ultrafast recovery. Maximum forward voltage of 1.96 volts ensuring low conduction losses. Operational temperature range from -40°C to 150°C for reliability.
Compact dimensions measuring 94 mm length, 35 mm width, and 28 mm height. Designed for panel mounting with 3-pin INT-A-PAK package type. Manufactured in India maintaining high quality standards.
This recovery diode is suitable for industrial, manufacturing, and electronic power supply applications, where efficient recovery and high current handling are crucial. Explore other Vishay semiconductor products and Schottky diode solutions on EnvMart for comprehensive power electronics component sourcing.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for the Vishay VS-VSKCU300/06PBF recovery diode is 435 amperes.
This model has a peak reverse repetitive voltage rating of 600 volts.
The maximum forward voltage of this diode is 1.96 volts, which helps ensure low conduction losses.
The peak reverse recovery time for this diode is 260 nanoseconds, contributing to its ultrafast recovery capabilities.
It operates reliably within a temperature range of -40°C to 150°C.
The dimensions of this diode are 94 mm in length, 35 mm in width, and 28 mm in height.
This model is designed for panel mounting with a 3-pin INT-A-PAK package type.
The Vishay VS-VSKCU300/06PBF features a common cathode diode configuration, which is efficient for switching applications.
The peak reverse current for this diode is rated at 50 mA.
This recovery diode is manufactured in India, maintaining high quality standards.
This model belongs to the VSX series of recovery diodes.
It is suitable for industrial, manufacturing, and electronic power supply applications where efficient recovery and high current handling are crucial.
