| Country of Origin | India |
|---|---|
| Brand | DiodesZetex |
| Height | 2.1mm |
| Length | 4.6mm |
| Model | S1A-13-F |
| Width | 2.92mm |
| Mount Type | Surface |
| Series | S1A |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214AC |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 1A |
| Peak Reverse Repetitive Voltage Vrrm | 50V |
| Diode Configuration | Single |
| Rectifier Type | General Purpose |
| Peak Reverse Current Ir | 100μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 30A |
| Maximum Forward Voltage Vf | 1.1V |
| Peak Reverse Recovery Time trr | 3μs |

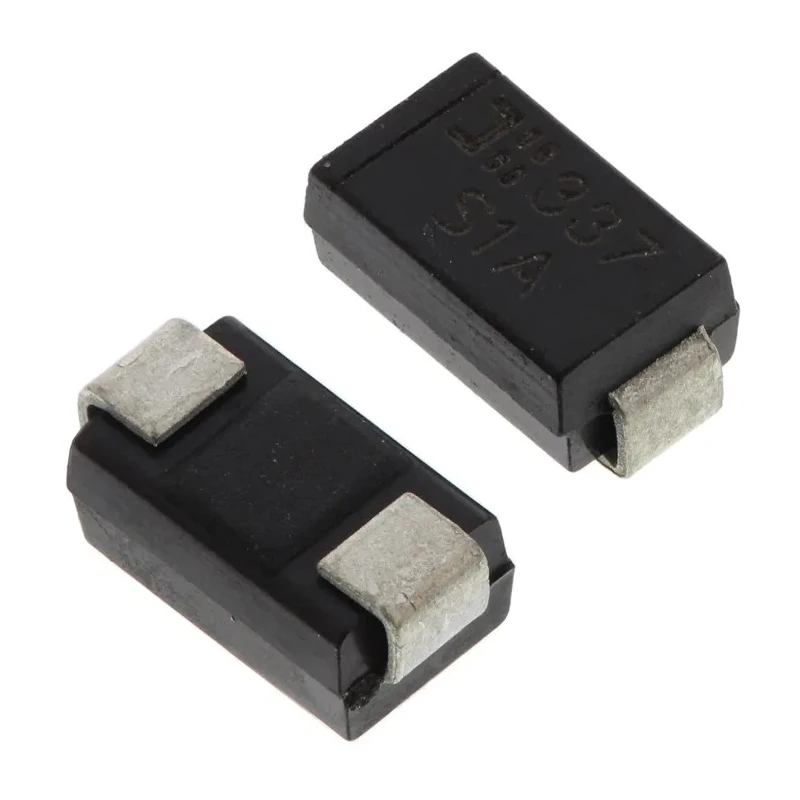

The DiodesZetex S1A-13-F is a high-quality, general purpose diode designed for surface mount applications requiring a compact DO-214AC package and a reliable 50 V, 1 A rating. This diode is ideally suited for switching and rectification processes in a variety of electronic designs.
It features a maximum forward current of 1 ampere and can handle peak non-repetitive surge currents up to 30 amperes, making it capable of handling transient loads effectively. The diode's peak reverse repetitive voltage is 50 volts, ensuring safe operation across typical electronic power ranges.
With a maximum forward voltage drop of 1.1 volts and a swift peak reverse recovery time of 3 microseconds, it enhances efficiency and reduces switching losses in power electronics, including industrial and automotive electronics applications.
The device operates within a broad temperature range from -65°C to 150°C, providing durability and reliability in demanding environments. Its compact dimensions (length 4.6 mm, width 2.92 mm, height 2.1 mm) and 2-pin surface mount configuration enable seamless integration on printed circuit boards using automated assembly systems.
This diode is suitable for use in industrial electronics, power supply circuits, and other commercial and manufacturing equipment requiring efficient switching diodes. While it lacks specific automotive certification, its robust specifications suit a wide range of general purpose electronic applications.
Supports a maximum continuous forward current of 1 ampere. Peak reverse repetitive voltage rated at 50 volts. Maximum forward voltage of 1.1 volts. Operational temperature range from -65°C to 150°C. Peak surge current of 30 amperes for transient conditions.
Fast peak reverse recovery time of 3 microseconds. Compact DO-214AC surface mount package. Single diode configuration with 2 pins. Explore more quality semiconductor components and schottky diodes on EnvMart to enhance your electronic designs and manufacturing projects.
