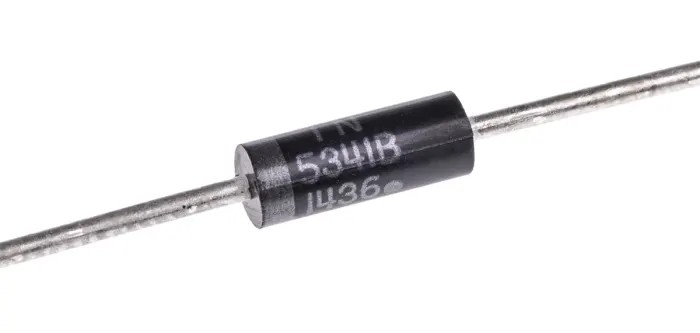

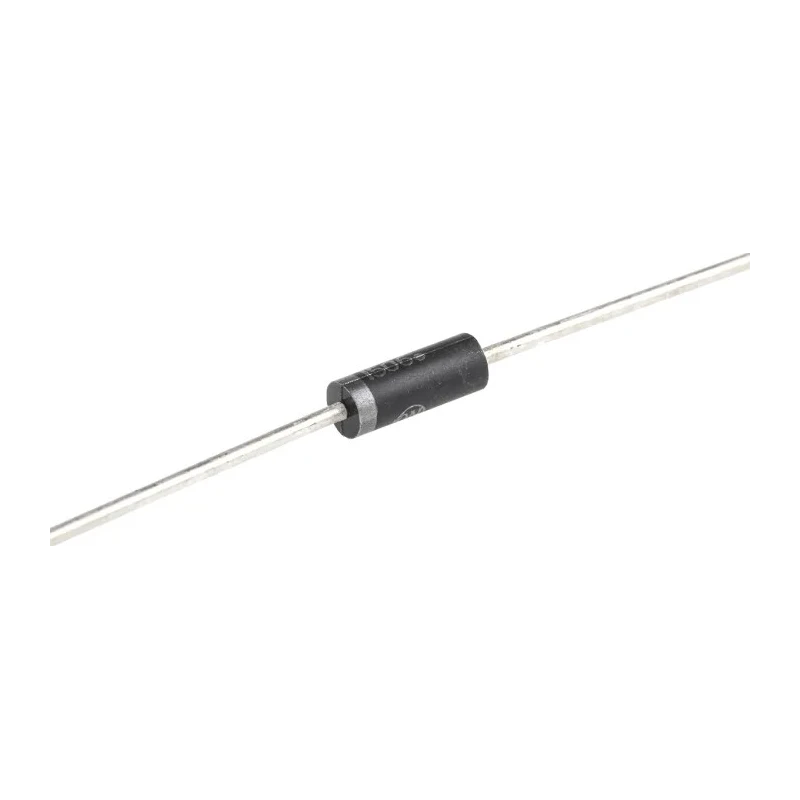

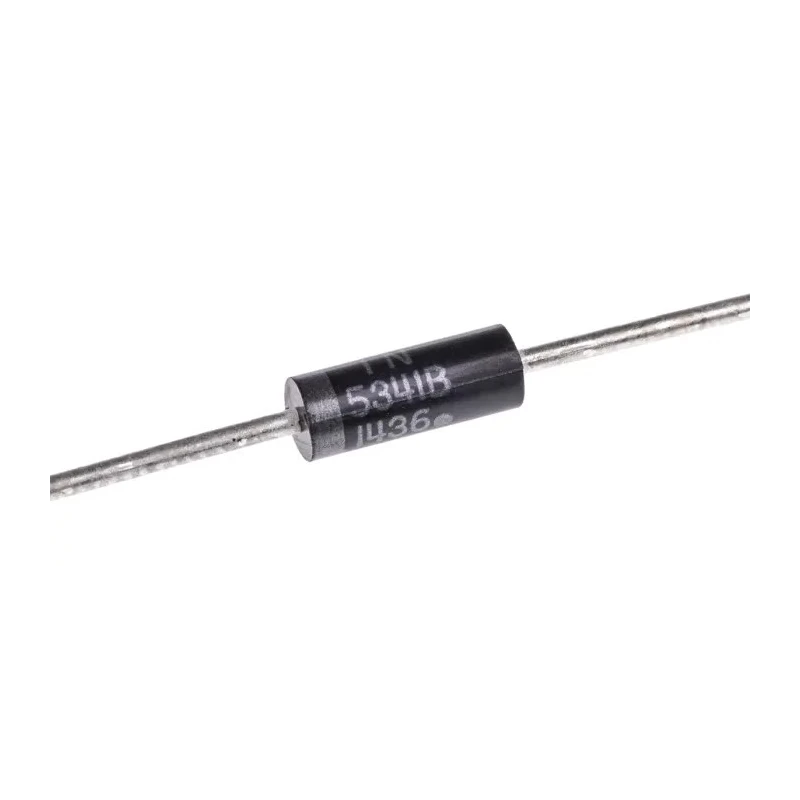

onsemi 6.2 V 5 W Single Zener Diode, Through Hole 2-Pin DO-15 1N5341BG
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 3.68mm |
| Length | 8.89mm |
| Model | 1N5341BG |
| Mount Type | Through Hole |
| Series | 1N53 |
| Maximum Operating Temperature | 200°C |
| Package Type | DO-15 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation Pd | 5W |
| Diode Configuration | Single |
| Test Current It | 200mA |
| Maximum Reverse Leakage Current | 1μA |
| Nominal Zener Voltage Vz | 6.2V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 1Ω |
Key Features
- This diode features a nominal Zener voltage of 6.2 V with a tolerance of ±5%.
- Maximum power dissipation is rated at 5 W for reliable voltage regulation.
- It has a maximum Zener impedance of 1 Ω ensuring stable operation.
- The diode package is molded thermosetting plastic, corrosion resistant with readily solderable leads.
- Operating temperature ranges from -65°C to 200°C suitable for industrial environments.
- The axial-leaded 5 Watt design provides robust protection in electronic circuits.
- Test current is specified at 200 mA for verifying diode parameters.
- Maximum reverse leakage current is exceptionally low at 1 μA.
Product Description
onsemi 1N5341BG is a high-performance Zener Diode designed as a single 5 Watt voltage regulator with a nominal Zener voltage of 6.2 V. Packaged in a through hole 2-pin DO-15 casing, this diode is optimized for industrial electronic applications requiring stable voltage regulation.
This component features a molded thermosetting plastic package that is void-free transfer-molded, providing environmental protection and durability. The corrosion resistant external surfaces and readily solderable axial leads enable straightforward assembly on various printed circuit boards.
Operating reliably within a wide temperature range from -65°C to +200°C, the diode maintains precise regulation with a maximum Zener impedance of 1 Ω and very low leakage current of 1 μA. Its power dissipation capability of 5 W makes it suitable for voltage stabilizing, voltage reference, and transient voltage suppression roles in electronic and industrial equipment.
Typical applications for the onsemi 1N5341BG include industrial electronic circuits, power supplies, and equipment requiring reliable voltage regulation and protection. The axial-leaded form factor enhances ease of installation and mechanical stability.
This diode features a nominal Zener voltage of 6.2 V with ±5% tolerance. Maximum power dissipation capacity of 5 W allows for efficient voltage regulation under electrical load. Low maximum reverse leakage current improves overall circuit efficiency.
Robust packaging provides protection against environmental factors and supports soldering ease. Wide operating temperature range suitable for harsh industrial conditions. Compact dimensions of 8.89 mm length and 3.68 mm height suit various PCB layouts.
Test current of 200 mA to assure performance standards. Stable electrical characteristics owing to silicon-oxide passivated junction construction.
Explore the Electronics & Electricals > Semiconductor > Zener Diodes category on EnvMart for additional voltage regulation components and similar industrial-grade semiconductor products.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The nominal Zener voltage of this diode is 6.2 V with a tolerance of ±5%.
The maximum power dissipation for this model is rated at 5 W.
This diode has a length of 8.89 mm and a height of 3.68 mm.
The maximum operating temperature for this diode is 200°C.
The minimum operating temperature of this diode is -65°C.
This diode is packaged in a through hole 2-pin DO-15 casing.
The maximum Zener impedance is rated at 1 Ω, ensuring stable operation.
This diode is suitable for applications such as voltage regulation, voltage reference, and transient voltage suppression in industrial electronic circuits.
The diode package is made of molded thermosetting plastic, providing corrosion resistance and environmental protection.
This diode has one element per chip, configured as a single Zener diode.
