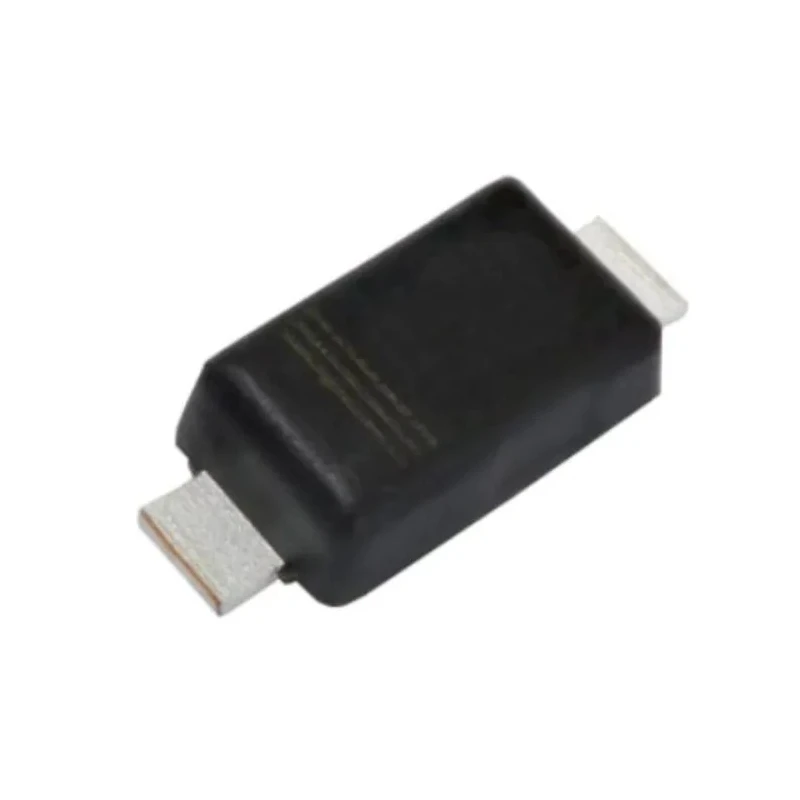

Vishay 1-Element Uni-Directional ESD Protection Diode 1000 W Peak Pulse Power, DO-219AB Package SMF5V0A-E3-08
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 1.08mm |
| Length | 2.9mm |
| Model | SMF5V0A-E3-08 |
| Width | 1.9mm |
| Mount Type | Surface |
| Series | eSMP |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-219AB |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 9.2V |
| Automotive Standard | AEC-Q101 |
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 6.4V |
| Maximum Reverse Stand-off Voltage Vwm | 5V |
| Peak Pulse Power Dissipation Pppm | 1000W |
| Test Current It | 10mA |
| Maximum Peak Pulse Current Ippm | 21.7A |
| Maximum Reverse Leakage Current | 400μA |
Key Features
- This diode features a single-element uni-directional configuration for efficient ESD protection.
- Offers a minimum breakdown voltage of 6.4 V and a maximum reverse stand-off voltage of 5 V.
- Peak pulse power dissipation is 1000 W with a maximum peak pulse current of 21.7 A.
- Clamping voltage is 9.2 V, providing reliable voltage suppression during transient events.
- Operates reliably from -55°C up to a maximum of 150°C.
- Meets automotive standard AEC-Q101 for enhanced reliability in automotive applications.
- Maximum reverse leakage current is limited to 400 μA at operating conditions.
- Designed for use in electronic circuits requiring transient voltage suppression and electrostatic discharge protection.
Product Description
Vishay SMF5V0A-E3-08 1-Element Uni-Directional ESD Protection Diode provides high peak pulse power capability of 1000 W in a compact DO-219AB surface mount package. This device is engineered for transient voltage suppression in sensitive electronic circuits, shielding components from damaging electrostatic discharges and voltage spikes.
Featuring a single diode element with uni-directional configuration, it offers minimum breakdown voltage at 6.4 V and a maximum reverse stand-off voltage of 5 V, providing precise and reliable protection. The diode clamps voltage transients efficiently at a clamping voltage of 9.2 V while maintaining a maximum peak pulse current capacity of 21.7 A, which ensures robust performance under surge conditions.
Its small form factor dimensions of 2.9 mm length, 1.9 mm width, and 1.08 mm height make it ideal for compact PCB layouts requiring surface mount components. The device operates effectively in a wide temperature range from -55°C to 150°C, suitable for industrial and automotive environments. It complies with the AEC-Q101 automotive standard, affirming its reliability for automotive and similar high-reliability applications.
With a low maximum reverse leakage current of 400 μA, it efficiently minimizes power losses in the protected circuits. This diode is well suited for use in various industrial, automotive, consumer electronics, and communication equipment where ESD and transient voltage surges are a concern.
Single-element uni-directional ESD Protection Diode configuration. 1000 W peak pulse power dissipation capability. Surface mount DO-219AB package with compact size. Automotive grade with AEC-Q101 standard compliance. Broad operating temperature range from -55°C to 150°C.
Low leakage current of 400 μA for energy-efficient protection. Provides transient voltage suppression for electronic circuits. Ideal for industrial, automotive, and communication applications. Explore a wide range of ESD protection components and diodes in the EnvMart catalog to enhance circuit safety and durability.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The diode has a peak pulse power dissipation capability of 1000 W.
The clamping voltage of this model is 9.2 V, which provides reliable voltage suppression during transient events.
It operates reliably from -55°C up to a maximum of 150°C.
The maximum peak pulse current is 21.7 A.
This diode features a single element per chip configuration.
The dimensions of the DO-219AB package are 2.9 mm in length, 1.9 mm in width, and 1.08 mm in height.
Yes, it meets the automotive standard AEC-Q101 for enhanced reliability in automotive applications.
It features a single-element uni-directional configuration for efficient ESD protection.
The test current for this diode is 10 mA.
This diode is suitable for various industrial, automotive, consumer electronics, and communication equipment where ESD and transient voltage surges are a concern.
