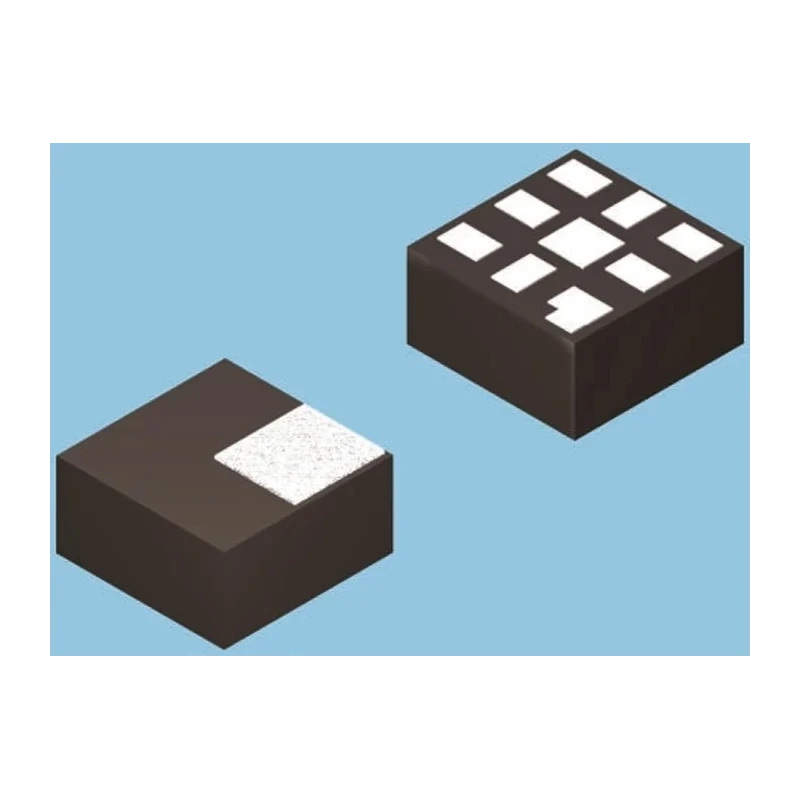

NXP I2C Voltage Level Translator Bi-Directional Logic Translator 8-Pin XQFN PCA9306GM,125

Free Delivery in India | Lowest Global Shipping Charges

NXP I2C Voltage Level Translator Bi-Directional Logic Translator 8-Pin XQFN PCA9306GM,125



Category Voltage Level Shifter Brand NXP Condition New

Specifications

Country of Origin	Thailand
Brand	NXP
Height	1.1mm
Length	3mm
Model	PCA9306GM,125
Mount Type	Surface
Output type	I2C Bus and SMBus
Series	PCA9306
Maximum Operating Temperature	85°C
Package Type	XQFN
Minimum Operating Temperature	-40°C
Pin Count	8
Number of Elements per Chip	2
Maximum Supply Voltage	5V
Logic Family	Translator
Logic Function	Voltage Level Translator
Minimum Supply Voltage	0mV
Maximum Propagation Delay Time @ CL	0.75ns
Direction Type	Bi-Directional
Translation	Voltage Level

Key Features

Bi-directional voltage level translator suitable for I2C Bus and SMBus protocols.
Compact surface mount 8-pin XQFN package measuring 3mm length and 1.1mm height.
Supports voltage levels from 0 mV up to 5 V for translation.
Maximum propagation delay of 0.75 nanoseconds ensuring fast signal translation.
Operating temperature range from -40°C to 85°C for versatile application environments.
Contains 2 elements per chip designed to handle dual voltage lines.
Suitable for use in electronic components, power connectors, and semiconductor applications.

Product Description

NXP PCA9306GM,125 is a high-speed, bi-directional I2C voltage level translator available in a compact 8-pin XQFN package. It functions as a logic voltage level translator enabling communication between two devices operating at different voltage levels.

The device supports a translation range from 0 mV up to 5 V and is capable of handling I2C Bus and SMBus communications, making it ideal for embedded electronics, industrial electronics, consumer devices, and power management applications.

Its low propagation delay of 0.75 ns ensures minimal latency during data transfer. The surface mount package with dimensions of 3 mm length and 1.1 mm height facilitates easy PCB integration in space-sensitive designs.

Operating reliably within a temperature range of -40°C to 85°C, this voltage translator is suitable for various temperature environments encountered in manufacturing, laboratory, and industrial setups.

The chip contains 2 elements per chip with a total of 8 pins, providing two voltage level translation channels. This feature allows bi-directional communication ensuring compatibility with multiple types of voltage domains.

NXP’s PCA9306GM,125 is RoHS compliant and backed by NXP’s industry reputation for quality and reliability. It does not include any automotive certifications but is suitable for numerous electronic component systems.

Typical use cases include PCB designs requiring level shifting between components operating at various logic voltages and power management ICs requiring smooth signal interfacing. Set contains 1 Pc voltage level translator IC PCA9306GM,125 in an 8-pin XQFN package. Country of Origin: Thailand.

Explore more semiconductor devices and voltage translators available at EnvMart for your industrial and electronic component needs. Bi-directional voltage level translator suitable for I2C Bus and SMBus protocols. Compact surface mount 8-pin XQFN package measuring 3mm length and 1.1mm height.

Supports voltage levels from 0 mV up to 5 V for translation. Maximum propagation delay of 0.75 nanoseconds ensuring fast signal translation. Operating temperature range from -40°C to 85°C for versatile application environments.

Contains 2 elements per chip designed to handle dual voltage lines. Suitable for use in electronic components, power connectors, and semiconductor applications.

Explore more products in our Voltage Level Shifter category.
