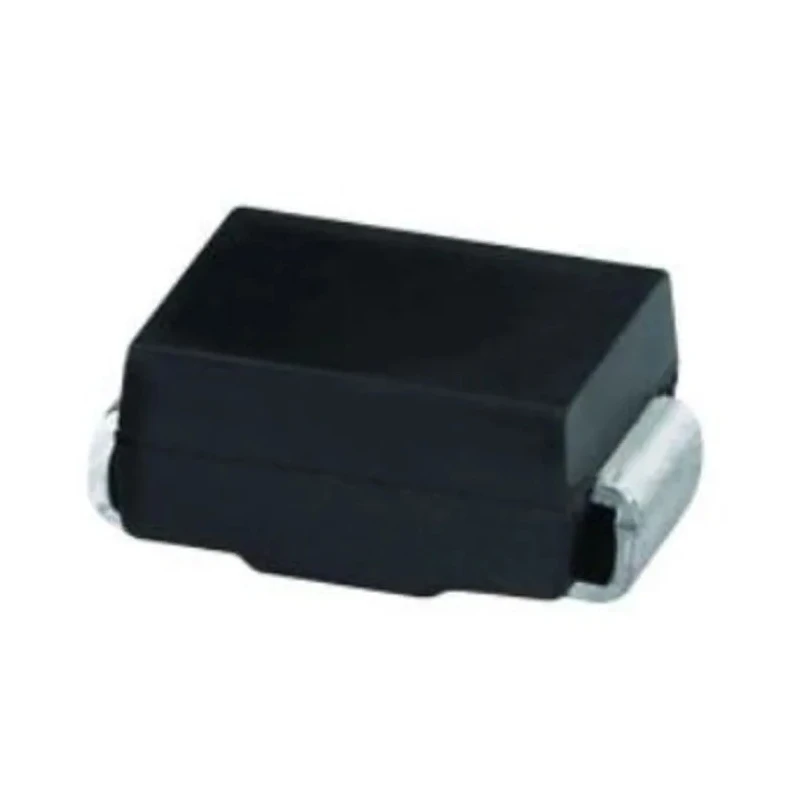

Vishay 100 V 2 A Schottky Diode 2-Pin Surface Mount Package DO-214AA SS2H10-E3/52T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 2.24mm |
| Length | 4.57mm |
| Model | SS2H10-E3/52T |
| Width | 3.94mm |
| Mount Type | Surface |
| Series | SS2H10 |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-214AA |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 2A |
| Peak Reverse Repetitive Voltage Vrrm | 100V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 10μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 75A |
| Maximum Forward Voltage Vf | 0.65V |
Key Features
- High continuous forward current rating of 2 amperes for efficient power handling.
- Maximum peak repetitive reverse voltage of 100 volts suitable for various DC circuits.
- Low forward voltage drop of 0.65 V reducing power loss and heat generation.
- Fast switching capability ideal for switching power supplies and DC-DC converters.
- Compact DO-214AA surface mount package ensuring space-saving on printed circuit boards.
- Wide operating temperature range from -65°C to 175°C for robust industrial usage.
- Peak non-repetitive forward surge current rating of 75 amperes for transient load handling.
- Reliable 2-pin configuration for standard Schottky diode circuit designs.
Product Description
Vishay SS2H10-E3/52T is a high-performance Schottky diode manufactured for applications requiring fast switching and low forward voltage drop. Rated at 100 V and 2 A continuous forward current, this diode is suitable for power electronic circuits including power supplies, voltage clamping, freewheeling, and reverse polarity protection.
Housed in a compact 2-pin DO-214AA surface mount package, the diode features a low forward voltage of 0.65 V, which minimizes conduction losses and improves efficiency in switching environments. Its peak repetitive reverse voltage of 100 V ensures reliability in reverse-bias conditions common in DC circuits.
The SS2H10-E3/52T supports operation over a broad temperature range (-65°C to 175°C), allowing deployment in demanding industrial, automotive, and commercial electronics. This device exhibits a peak non-repetitive forward surge current of 75 A, enabling it to sustain transient overloads encountered during switching or load changes.
High continuous forward current of 2 amperes. Low forward voltage drop of 0.65 volts for efficiency. Wide temperature range from -65°C up to 175°C. Compact 2-pin DO-214AA surface mount packaging. Fast switching Schottky diode reduces switching losses.
Peak reverse voltage of 100 volts for reliable blocking. Peak non-repetitive surge current of 75 amperes. 2-pin configuration for straightforward PCB integration.
This Vishay diode is ideal for industrial automation, power management, solar energy systems, automotive electronics, telecommunication equipment, and other high frequency switching applications requiring efficient diode performance. For detailed designs, Vishay provides comprehensive technical documentation and electrical characteristics.
Explore EnvMart's broad range of semiconductor components including Schottky diodes from Vishay to optimize your next industrial or electronic manufacturing project.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current rating of this model is 2 amperes.
The peak reverse repetitive voltage is rated at 100 volts.
This diode has a low forward voltage drop of 0.65 volts.
The peak non-repetitive forward surge current rating is 75 amperes.
The dimensions of the DO-214AA package are 4.57 mm in length, 3.94 mm in width, and 2.24 mm in height.
The operating temperature range for this model is from -65°C to 175°C.
This diode features a 2-pin configuration.
It supports surface mounting, housed in a compact DO-214AA package.
This diode is suitable for applications including power supplies, voltage clamping, freewheeling, and reverse polarity protection.
The peak reverse current is rated at 10 microamperes (10μA).
This model is a Schottky rectifier type diode.
The country of origin for this diode is India.
