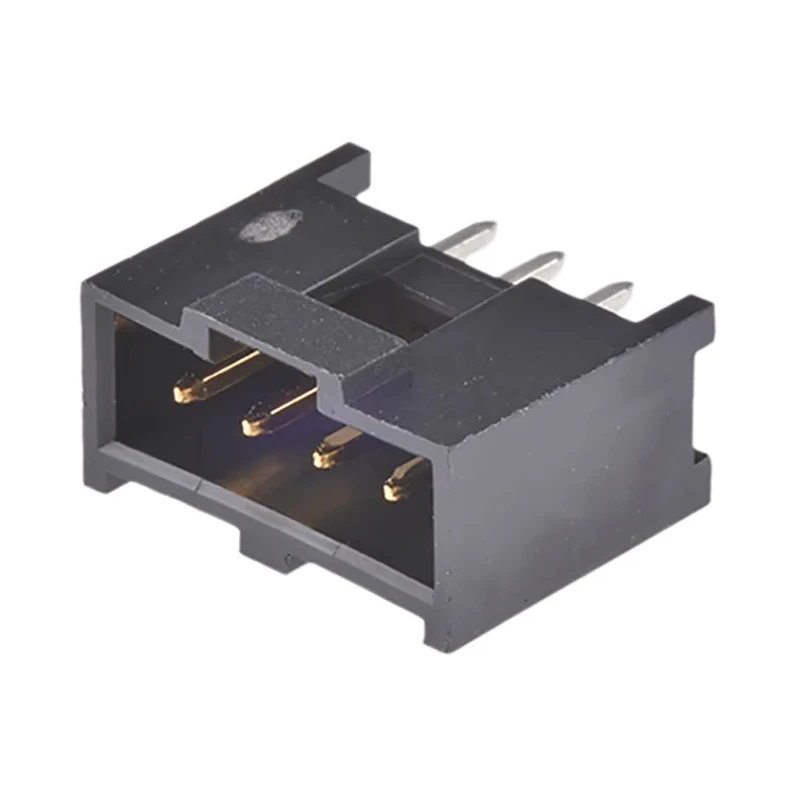

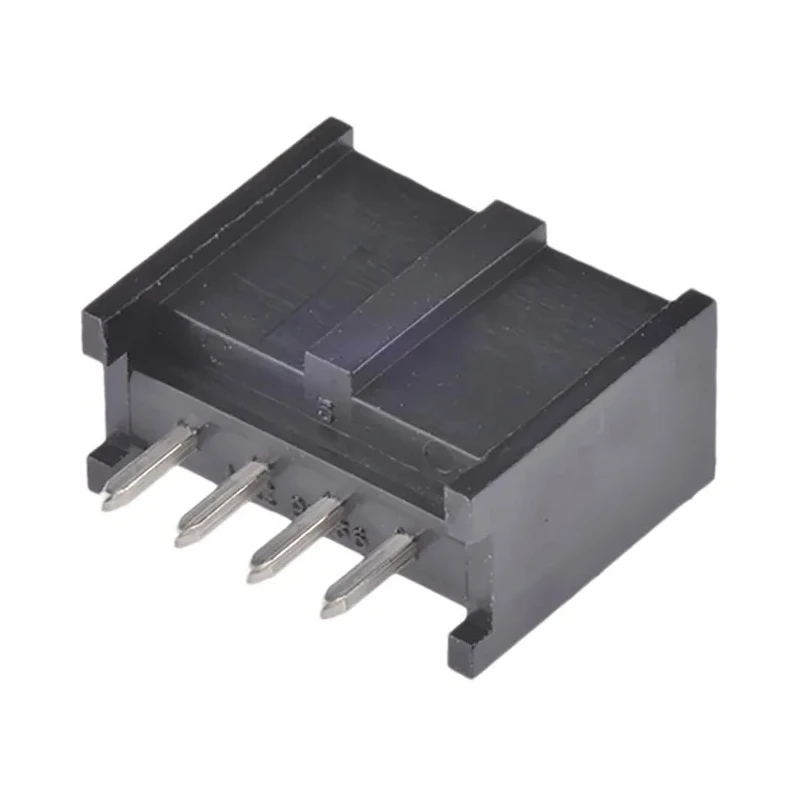

Molex C-Grid III Series Shrouded Straight Through Hole PCB Header 4 Contacts 2.54mm Pitch 350V 3A 90136-1304

Molex 90136-1304 is a high-quality shrouded PCB header from the C-Grid III series, designed for reliable wire-to-board interface applications at 3A current and 350V voltage ratings.

This single-row, straight orientation header features four contacts spaced at a 2.54 mm pitch, made from brass with gold plating to ensure excellent conductivity and corrosion resistance.

The housing is constructed from durable polyester, providing mechanical strength and high-temperature endurance from -55°C to 125°C, making it suitable for a variety of industrial environments.

The part is through-hole mounted with tail pin lengths of 2.9 mm and mating pin lengths of 6.75 mm, optimized for solder termination processes to PCBs. Its shrouded design enhances connection security when used with compatible locking housings, improving system reliability in electronic assemblies.

This header finds applications in electronics components manufacturing, industrial equipment, and any PCB assembly demanding robust, stable connector solutions. The connector housing is polyester for durability. 4 gold-plated brass contacts ensure effective electrical conduction.

Supports through-hole mounting with solder termination. Current rating of 3A at 350V operational voltage. Designed for temperature extremes from -55°C to 125°C. Shrouded, straight orientation suited for locking headers. Compliance with industrial electronic assembly standards.

Choose Molex C-Grid III series PCB headers for dependable electrical connections in demanding electronic and industrial applications. Explore more PCB Headers and connector solutions at EnvMart to meet your project specifications.
