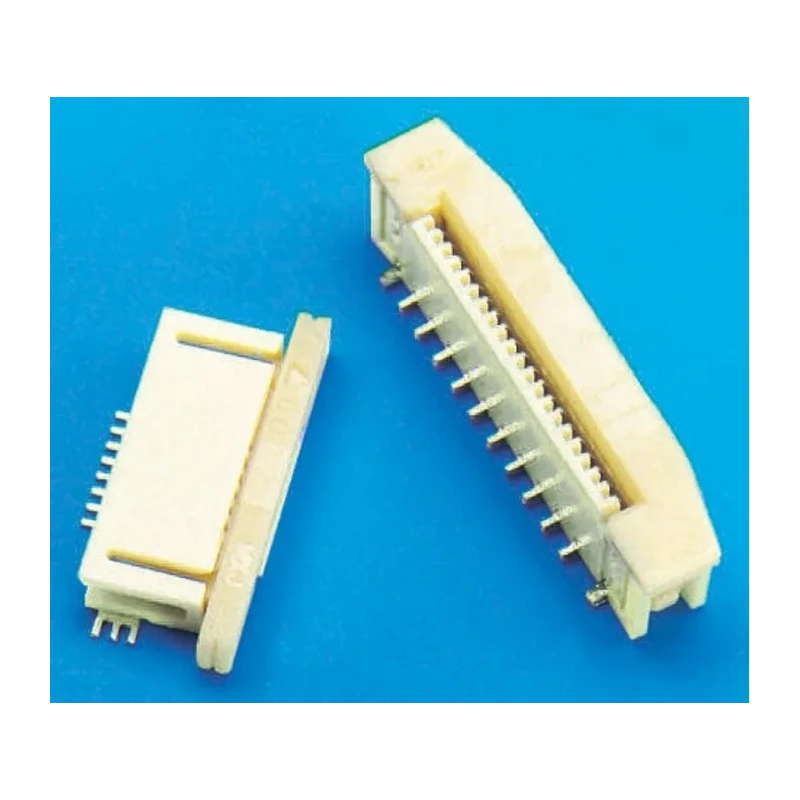

Molex 0.5 mm Pitch 27 Way Right Angle Female Easy-On FPC Connector Solder Termination 52437-2771

Molex 52437-2771 is a 27-way right angle female Easy-On FPC connector featuring a 0.5 mm pitch and solder termination. This connector is engineered for compact and reliable interconnections in electronics where space-saving design is critical. The slide type actuator mechanism ensures Zero Insertion Force (ZIF) for repeat cycling with minimal wear, providing a secure and stable connection between the FPC cable and PCB.

The connector contacts are bottom aligned and constructed from phosphor bronze with gold plating to guarantee excellent electrical conductivity and wear resistance. The connector housing is made of durable nylon, offering mechanical strength and electrical insulation. Operating within a temperature range of -40°C to 85°C, it is suitable for a wide variety of industrial and commercial environments.

Designed specifically for surface mount technology, this right angle female FPC connector features solder tabs providing enhanced PCB retention and strain relief for the solder tails. Its locking mechanism prevents accidental disconnections, improving reliability in vibration-prone applications.

This Molex Easy-On ZIF connector is ideal for use in automotive navigation and audio systems, digital cameras, home security devices, tablet and notebook PCs, patient monitors, GPS, smartphones, tablets, and other demanding electronic applications requiring high-density flat flex cabling solutions.

Slide type actuator for easy insertion and secure connection of flexible flat cables. Space-saving and compact design for optimal PCB layout efficiency. Movable contacts maintain secure electrical retention even under mechanical stress.

Solder tabs provide robust retention on the PCB and strain relief for solder joints. Phosphor bronze contacts with gold plating ensure long-lasting conductivity. Bottom aligned contacts designed to move with cable for contact retention.

Rated for 500mA current and 50V voltage operation. Temperature operating range from -40°C to 85°C for versatile usage. Nylon housing material for durability and electrical insulation.
