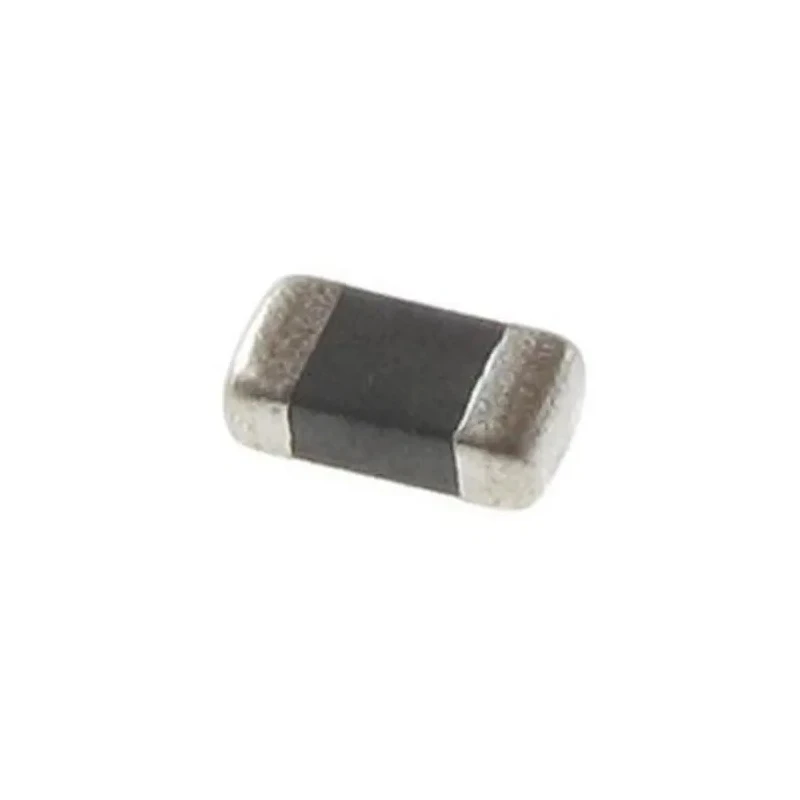

Murata Ferrite Bead 0.8 mm Solder Mount 0603 Chip Bead 60 Ω Impedance at 100 MHz BLM18PG600SH1D

Murata BLM18PG600SH1D ferrite bead is a 0603 size chip bead with solder mount, designed to provide 60 Ω impedance at 100 MHz. This ferrite bead is an important component for EMI filtering in electronic circuits, especially beneficial in automotive and powertrain applications.

The component measures 1.6 mm in length, 0.8 mm in height, and 0.8 mm in depth, making it suitable for compact PCB layouts. It features a low maximum DC resistance of 0.1 Ω and supports a current rating of 500 mA.

Built with ferrite material and nickel barrier external electrodes, the bead provides excellent solder heat resistance and durability. It meets the stringent AEC-Q200 automotive standards ensuring robust performance over a temperature range from -55°C to 125°C.

The BLM18H series bead functions nearly as a resistor at noise frequencies, effectively suppressing high-frequency noise while preserving signal waveform integrity by reducing resonance risk. The product’s tape and reel packaging supports automated production processes to enhance manufacturing efficiency.

The bead has a compact 0.8 mm height with dimensions 1.6 mm length and 0.8 mm depth. It features a maximum DC resistance of 0.1 Ω suitable for high-performance EMI filtering. Rated for a current capacity of 500 mA ensuring reliable operation in power circuits.

Operates effectively across a wide temperature range from -55°C to 125°C. Complies with the AEC-Q200 automotive standard for quality and reliability. Constructed from ferrite material with nickel barrier external electrodes for excellent solder heat resistance.

Ideal for use in automotive powertrain and safety systems requiring EMI suppression without affecting signal integrity. Packaged in tape and reel format for efficient automated assembly and insertion.

This ferrite bead is widely used in electronic manufacturing, automotive, power management, and EMI suppression applications. It is ideal for engineers and technicians designing robust and reliable electrical circuits requiring noise filtering and signal integrity.
