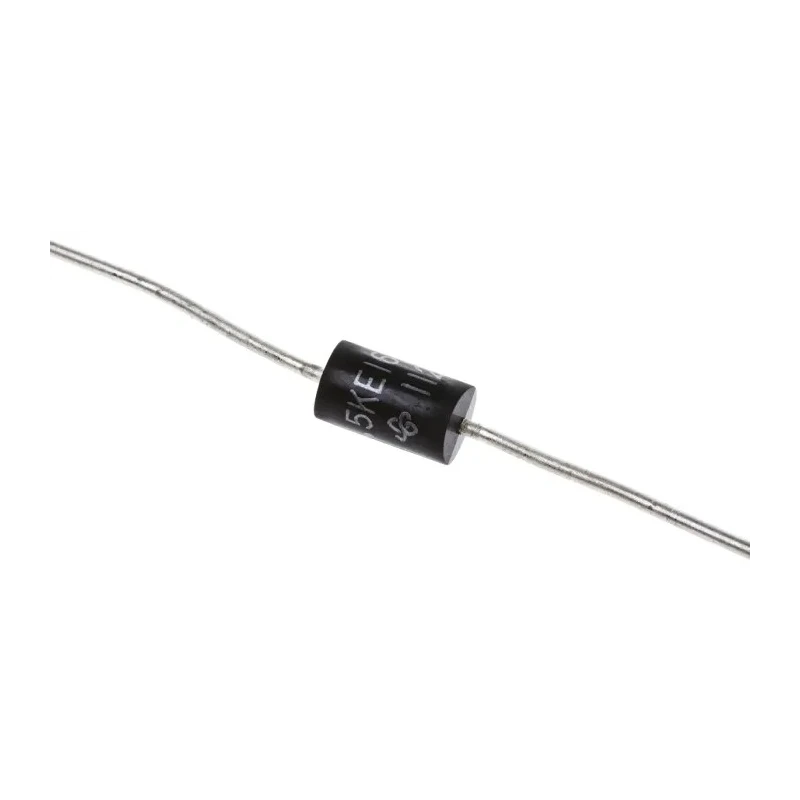

Vishay 1-Element Bi-Directional TVS Diode 1.5 kW 2-Pin Through Hole Package 1.5KE TRANSZORB 1.5KE160CA-E3/54
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 5.3mm |
| Brand | Vishay |
| Height | 5.3mm |
| Length | 9.5mm |
| Model | 1.5KE160CA-E3/54 |
| Width | 5.3mm |
| Mount Type | Through Hole |
| Series | TRANSZORB TVS |
| Maximum Operating Temperature | 175°C |
| Package Type | 1.5KE |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 219V |
| Automotive Standard | AEC-Q101 |
| Diode Configuration | Single |
| Direction Type | Bi-Directional |
| Minimum Breakdown Voltage Vbr | 152V |
| Maximum Reverse Stand-off Voltage Vwm | 136V |
| Peak Pulse Power Dissipation Pppm | 1.5kW |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 6.8A |
| Maximum Reverse Leakage Current | 1μA |
Key Features
- Single element diode with bi-directional configuration for transient voltage suppression.
- Minimum breakdown voltage of 152 V ensures device reliability.
- Rated peak pulse power dissipation of 1.5 kW for high transient power handling.
- Clamping voltage of 219 V protects circuits against voltage spikes.
- Operating temperature range from -55°C to 175°C for industrial environments.
- Axial leaded through hole mount with 2 pins and a compact 9.5 mm length.
- Meets AEC-Q101 automotive standard for enhanced reliability in automotive applications.
- Maximum reverse leakage current of 1 μA for low power loss.
Product Description
Vishay 1.5KE160CA-E3/54 is a high-performance 1-element bi-directional transient voltage suppressor (TVS) diode designed to protect electronic circuits from voltage spikes and transient surges up to 1.5 kW peak pulse power dissipation. This device features a bi-directional diode configuration, offering symmetrical voltage protection in both polarities, making it suitable for AC and DC applications.
The diode has a minimum breakdown voltage of 152 V and a maximum reverse stand-off voltage of 136 V, with a clamping voltage rating of 219 V to ensure effective suppression of transient overvoltages. It is housed in a 1.5KE axial package with through hole mounting comprising two pins and compact dimensions of 9.5 mm length and 5.3 mm diameter, facilitating integration into various PCB layouts.
Operating reliably over a wide temperature range from -55°C to 175°C, this diode complies with the AEC-Q101 automotive standard for enhanced durability and robustness in automotive and industrial environments. The maximum peak pulse current capability is 6.8 A, with an ultra-low reverse leakage current of 1 μA, reducing wasted energy and improving efficiency.
This TRANSZORB TVS Diode from Vishay is ideal for protecting power and signal lines in industrial, automotive, telecommunications, and consumer electronic systems against electrostatic discharges (ESD). The diode's axial lead design and proven semiconductor technology contribute to its reliability and ease of use in transient voltage suppression applications.
Single element diode with bi-directional voltage suppression. Peak pulse power rating of 1.5 kW for surge protection. Compact axial through hole package supporting PCB mounting. Wide operating temperature range from -55°C to 175°C.
Meets AEC-Q101 automotive quality standard for reliability. Low reverse leakage current to minimize power loss. Maximum peak pulse current of 6.8 A ensures strong surge handling. Clamping voltage of 219 V to protect sensitive components.
Dimensions: length 9.5 mm, diameter 5.3 mm, width 5.3 mm, height 5.3 mm.
It is highly recommended for use in industrial-level transient voltage suppression, including applications in power electronics, automotive electronics, industrial control equipment, and communications hardware.
Explore more semiconductor and diode products on EnvMart for a wide range of electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak pulse power dissipation of the Vishay 1.5KE160CA-E3/54 is rated at 1.5 kW, allowing it to handle high transient power surges effectively.
This diode has a minimum breakdown voltage of 152 V, ensuring reliable operation during transient voltage suppression.
The clamping voltage rating for this diode is 219 V, which protects circuits against voltage spikes.
It operates reliably within a temperature range of -55°C to 175°C, making it suitable for various industrial environments.
The maximum reverse leakage current is 1 μA, which helps to minimize power loss during operation.
This model features a 2-pin configuration and is designed for through hole mounting, facilitating easy integration into PCB layouts.
The maximum peak pulse current capability of the Vishay 1.5KE160CA-E3/54 is 6.8 A, ensuring strong surge handling performance.
It complies with the AEC-Q101 automotive standard, enhancing its reliability for automotive applications.
The diode has a length of 9.5 mm and a diameter of 5.3 mm, making it compact for various applications.
This model features a single element bi-directional diode configuration, providing symmetrical voltage protection in both polarities.
It is ideal for protecting power and signal lines in industrial, automotive, telecommunications, and consumer electronic systems against electrostatic discharges (ESD).
The diode is housed in a 1.5KE axial package, designed for through hole mounting.
