TDK 470 nF Multilayer Ceramic Capacitor, 100V dc, ±10 % Tolerance, Surface Mount, Package 0805, Series CGA4J3X7S2A474K125AE



Category Multilayer Ceramic Capacitor Brand TDK Condition New

Specifications

Country of Origin	Japan
Voltage	100V dc
Brand	TDK
Height	1.25mm
Length	2mm
Model	CGA4J3X7S2A474K125AE
Packaging	Tape & Reel
Width	1.25mm
Mount Type	Surface
Series	CGA
Termination Type	Surface Mount
Maximum Operating Temperature	125°C
Tolerance	±10 %
Capacitance	470nF
Minimum Operating Temperature	-55°C
Package/Case	0805
Dielectric	X7S
Automotive Standard	AEC-Q200
Suppression Class	Class II

Key Features

Constructed with X7S dielectric material ensuring stable performance across temperature range.

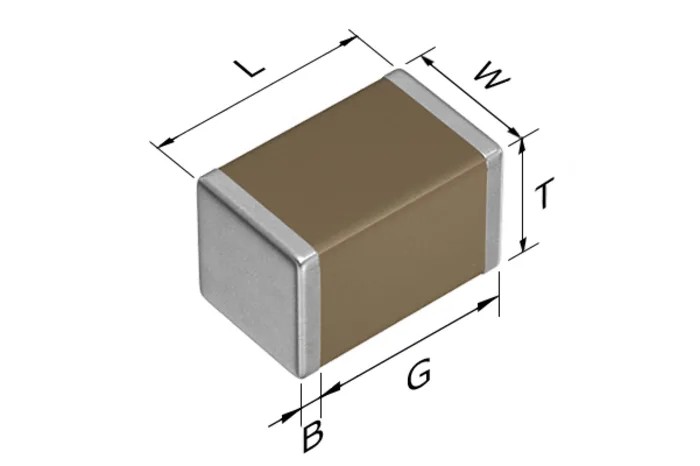

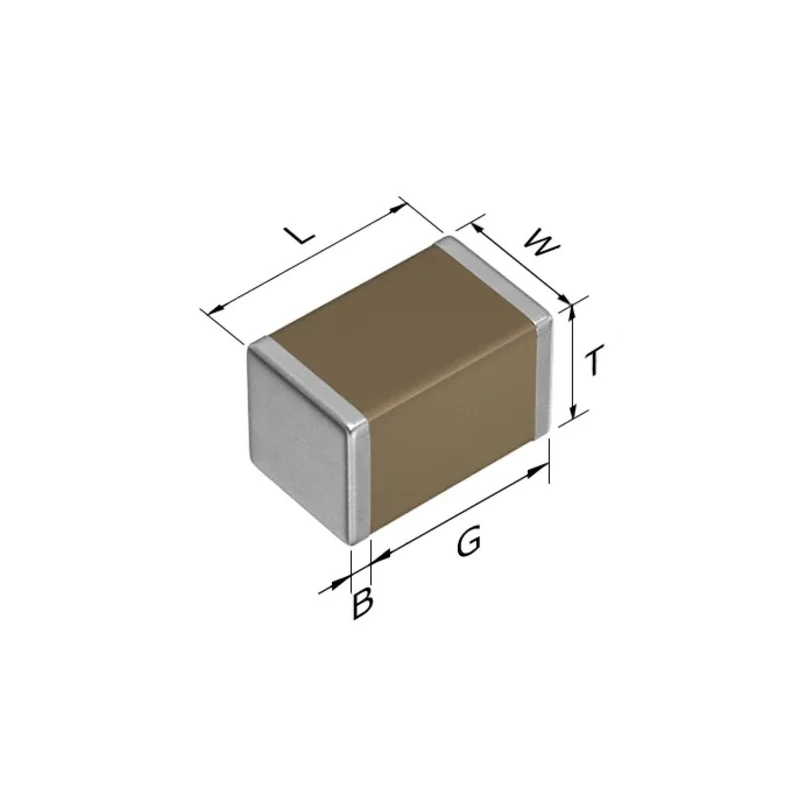

Package size 0805 with 2 mm length, 1.25 mm width and height dimensions.
Compliant with automotive standard AEC-Q200 for reliable automotive use.
Capacitor features soft termination with conductive resin layers for higher mechanical endurance.
Operating temperature spans from -55°C to 125°C allowing wide application range.
Surface mount termination providing ease of PCB assembly.
Class II suppression class for effective noise filtering applications.
Manufactured in Japan ensuring high quality and consistent standards.

Product Description

TDK CGA4J3X7S2A474K125AE is a multilayer ceramic capacitor designed for robust surface mount applications, featuring a capacitance of 470 nF and a voltage rating of 100 V DC with ±10 % tolerance. It is constructed using X7S dielectric material known for its stable electrical characteristics over a broad temperature range.

This capacitor adopts the CGA series soft termination technology, incorporating flexible conductive resin layers within its terminations. This design significantly enhances mechanical endurance by absorbing thermal and mechanical stress, thus improving reliability in harsh environments.

The device is compliant with the AEC-Q200 automotive standard, making it suitable for automotive electronic circuits where stringent quality and durability requirements are in place. Operating temperatures range from -55°C to 125°C, accommodating a variety of industrial and automotive applications.

The compact 0805 package, with dimensions of 2 mm length and 1.25 mm both width and height, supports high-density PCB layouts and is supplied in tape and reel packaging optimized for automated mounting processes.

Applications include fail-safe battery designs, prevention of ceramic body cracks due to board bending, and resistance to soldering cracks caused by thermal shocks. The capacitor is optimal for critical systems such as keyless entry and smart keys where reliability is paramount.

Capacitance: 470 nF with ±10 % tolerance ensures precise filtering and timing functions. Voltage rating of 100 V DC suitable for a wide range of electronic circuits. Surface mount package 0805 for compact assembly. X7S dielectric for stable electrical performance over temperature variations.

Soft termination design improves durability against mechanical stresses. AEC-Q200 qualification supports automotive electronics applications. Dimensions (LxWxH): 2 mm x 1.25 mm x 1.25 mm for space-saving layouts. Manufactured in Japan, assuring quality and conformity to standards.

This Multilayer Ceramic Capacitor is an essential component for electronic manufacturing sectors including automotive, industrial equipment, consumer electronics, and telecommunications. Its reliability and mechanical endurance make it suitable for demanding environments requiring long-term operational stability.
