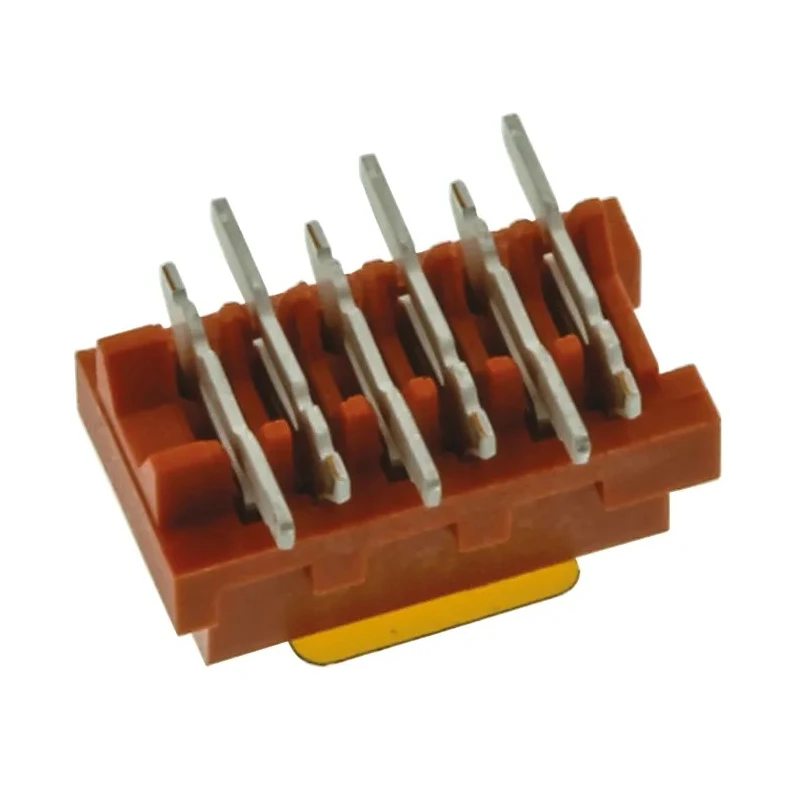

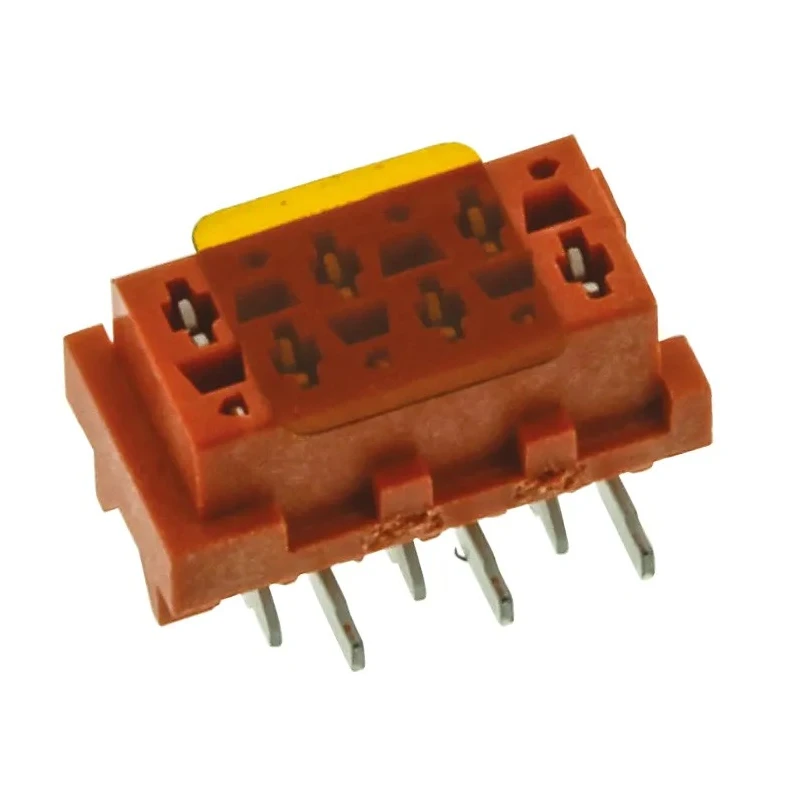

TE Connectivity Micro-MaTch Series Straight Surface PCB Socket 6-Contact 2 Row 1.27 mm Pitch Solder 7-188275-6

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity Micro-MaTch Series Straight Surface PCB Socket 6-Contact 2 Row 1.27 mm Pitch Solder 7-188275-6

Name: TE Connectivity Micro-MaTch Series Straight Surface PCB Socket 6-Contact 2 Row 1.27 mm Pitch Solder 7-188275-6
Brand: TE Connectivity
SKU: 173030



Category PCB Sockets Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Voltage	230V
Brand	TE Connectivity
Orientation	Straight
Current	1.5A
Mount Type	Surface
Contact Material	Bronze
Series	Micro-MaTch
Termination Type	Solder
Maximum Operating Temperature	85°C
Sub Type	Female-On-Board
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	1.27mm
Contact Plating	Tin
Number of Contacts	6
Contact Gender	Female
Connector System	Board-to-Board
Row Pitch	2.54mm

Key Features

The socket features a compact and space-saving design suitable for vertical or right-angle connection.
Fully tin-plated bronze contacts provide corrosion resistance and a gas-tight connection.
Contact springs prevent fretting corrosion and maintain reliable electrical contact.
Polarization prevents mismating, increasing reliability in assembly.
Operating temperature range from -55°C to 85°C supports diverse environments.
Rated for 1.5 A current and 230 V voltage suitable for low-power applications.
Surface mount technology and straight orientation ease PCB assembly processes.
Versions with locking latches are available for secure mating connections.

Product Description

TE Connectivity 7-188275-6 Micro-MaTch Series Straight Surface PCB Socket is a high-quality female on-board SMT socket connector designed for board-to-board interconnections with a 1.27 mm pitch and solder termination. It features a compact, space-efficient 6-contact, 2-row design enabling versatile use in tight PCB layouts with a straight orientation and surface mount technology.

The bronze contact material with full tin plating ensures excellent electrical conductivity and resistance to corrosion. The socket incorporates a contact spring design that prevents fretting corrosion and maintains a gas-tight connection, enhancing long-term reliability even under vibration and thermal expansion conditions. Polarization prevents incorrect mating with corresponding connectors, reducing assembly errors.

This PCB socket supports a current rating of 1.5 A and a voltage rating of 230 V, suitable for low power electronic circuits across various applications. Its operating temperature range of -55°C to 85°C makes it reliable in industrial and automotive conditions. Some versions include locking latches for secure mating connections.

Typical applications include production machinery, material handling equipment, robotics, motors, control units, central heating units, car radios, navigation systems, dashboard systems, base stations, set top boxes, and audio equipment. Its versatile design caters to demanding industrial, commercial, and manufacturing environments requiring compact and reliable PCB connections.

The socket features a compact, space-saving form factor with two rows of six contacts. Fully tin plated bronze contacts ensure high conductivity and durability. Contact spring design prevents fretting corrosion and maintains a gas-tight connection.

Polarization keys prevent mismating with mating connectors. Supports surface mount solder termination on PCBs. Rated for 1.5 A current and 230 V voltage in a wide temperature range. Versions with locking latches are available for secure mating.
